Pull luggage net bag A down slightly and
secure with the Velcro fasteners.
To remove, follow the sequence in reverse.

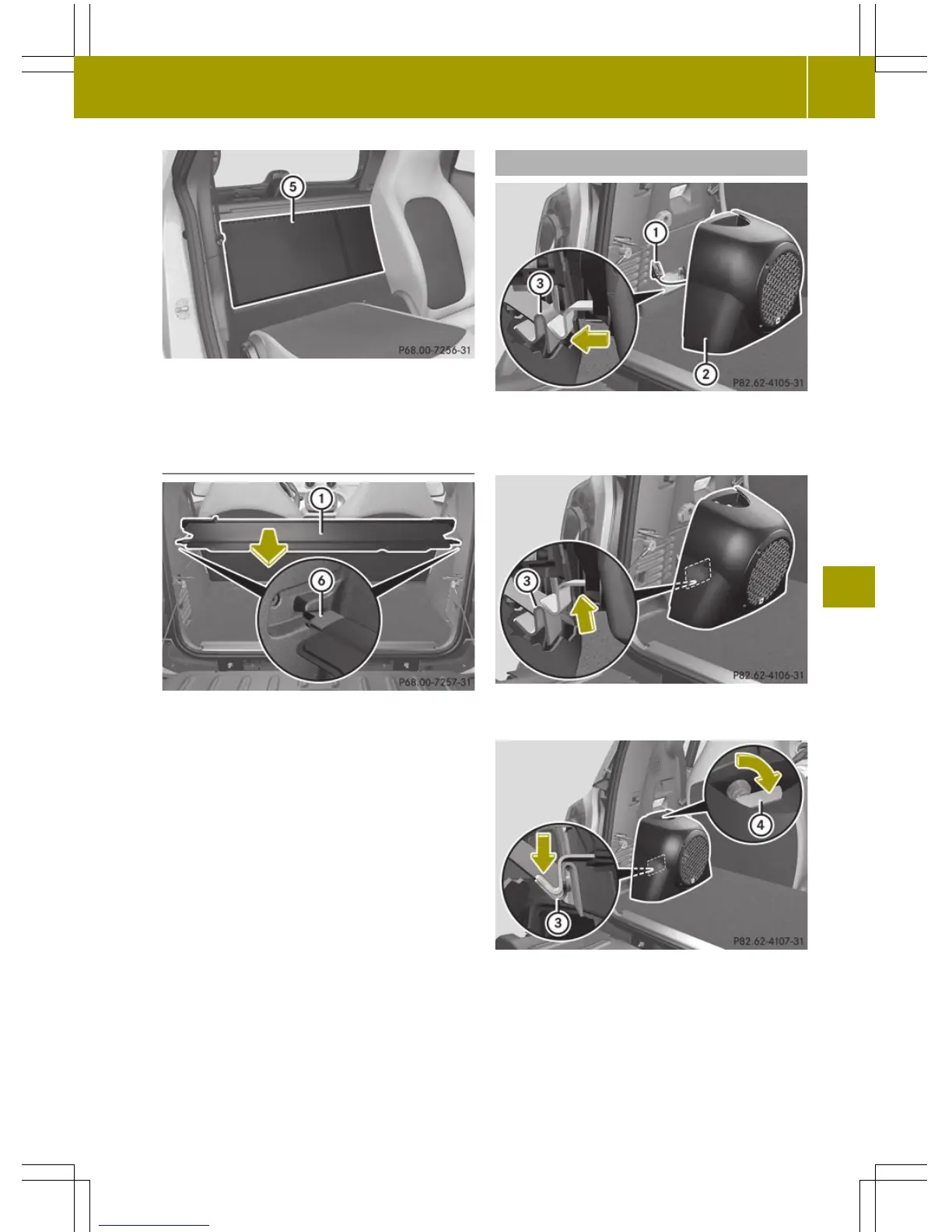

Installing and removing the trunk cover
X
To install: grip trunk cover : in the mid-
dle and pull it back.
X
Hook trunk cover : into left and right rear
brackets B and release.
X
To remove: grip trunk cover : in the mid-
dle, pull it back and unhook it from rear
brackets B.
X
Slide trunk cover : back.
Fitting/removing the subwoofer
X
To fit: insert connector :.
X
Place subwoofer ; on the side trim.
X
Slide subwoofer ; to bracket =.
X
Slide the subwoofer up in the direction of
the arrow on bracket =.
X
Then slide the subwoofer over bracket = in
the direction of the arrow until the sub-
woofer slides down.
X
Close quick-release fastener ?.
X
To remove: release quick-release fas-
tener ?.
X
Slide the subwoofer up over bracket = and
remove.
Stowage areas
141
>> Stowage and features.
