Introduction of the New smart fortwo coupé and smart forfour | Model Series 453
Interior
Overall vehicle
Instrument cluster
A semi-circular instrument cluster provides the driver with all
of the information required to operate the vehicle. The basic
version of the instrument cluster features a centrally located
LCD display of approx. 76x39mm in size. On the Passion,
Prime and Proxy equipment lines, there is a color display in
the same position (resolution 360x240pixels) for the on-
board computer. The speed is displayed on an arc around the
edge of the display, while warning messages and indicators
for the various systems are arranged concentrically around it.
Depending on the vehicle equipment, the menu functions are
controlled via buttons on the control stalk or buttons on the
multifunction steering wheel.
The additional instruments for time and rpm previously ins-
talled in the center of the instrument panel will in future be
combined in one indicator (SA) next to the instrument cluster.

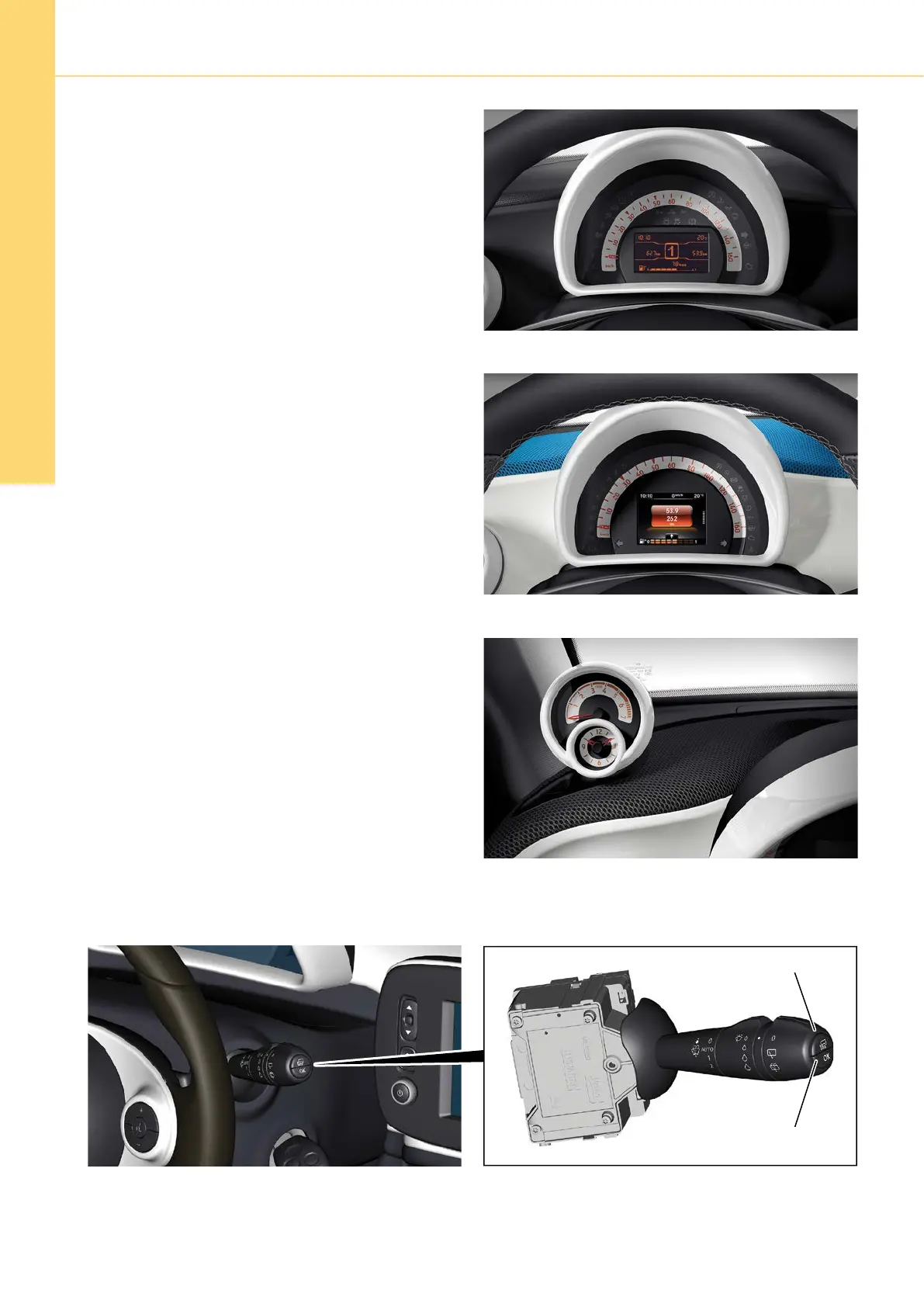

Instrument cluster (standard)
Instrument cluster (equipment line)
Additional instrument (SA)
Menu navigation button group
S4/5s1 Scroll forward button
S4/5s2 OK button
