Introduction of the New smart fortwo coupé and smart forfour | Model Series 453
Automatic start/stop
Networking

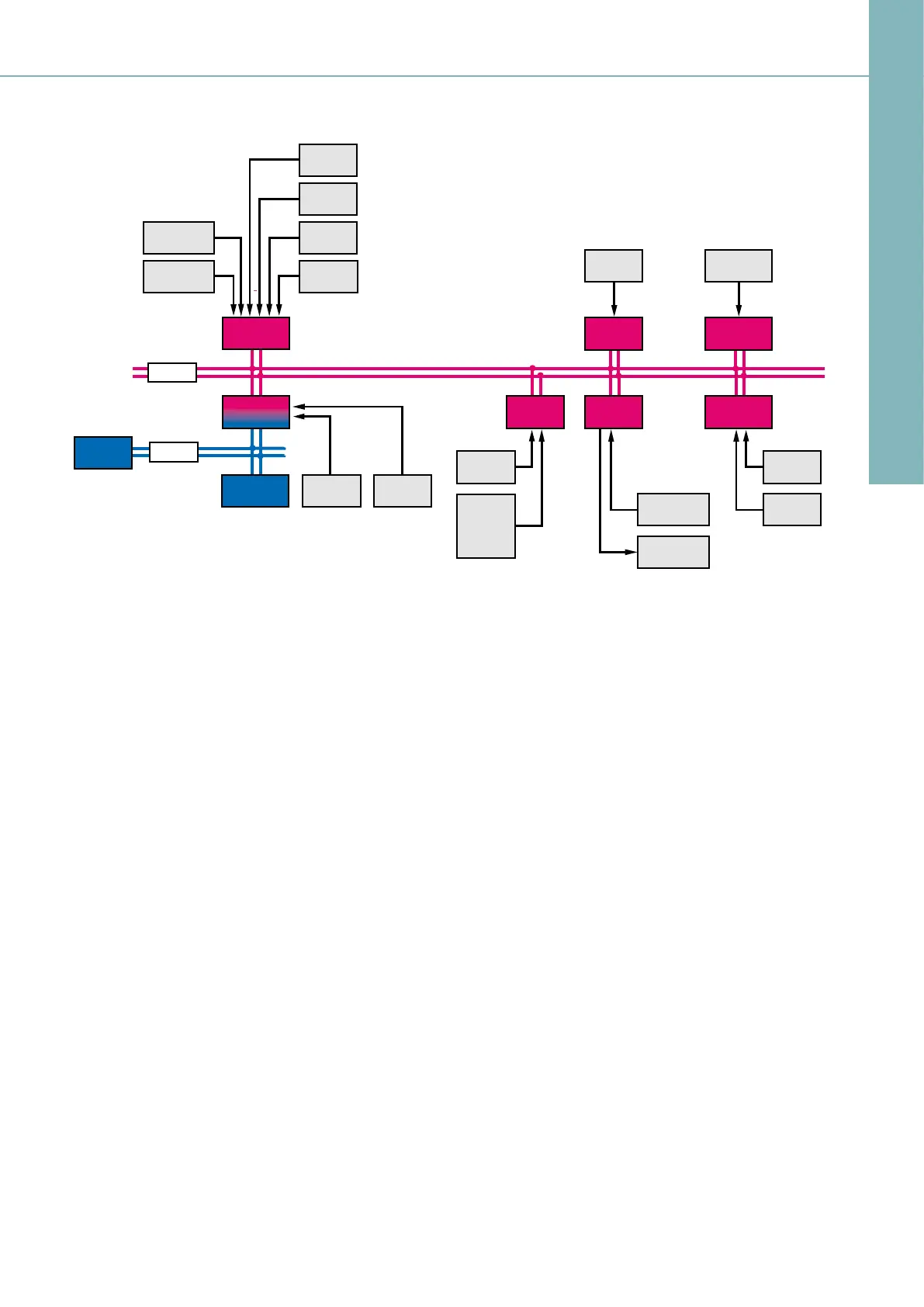

Block diagram of automatic start/stop function
A1 Instrument cluster
A1e62 ECO start/stop function "not available" indicator lamp
A1e63 ECO start/stop function "available" indicator lamp
B11/4 Coolant temperature sensor
B37 Accelerator pedal sensor
B64/1 Brake vacuum sensor
B82 Vehicle interior humidity and temperature sensor
B95 Battery sensor
L6/1 Le front axle rpm sensor
L6/2 Right front axle rpm sensor
L6/3 Le rear axle rpm sensor
L6/4 Right rear axle rpm sensor
M14/6s1 Driver door central locking microswitch
M14/7s1 Ligate central locking microswitch
M21/2b1 Outside temperature sensor
N2/10 Supplemental restraint system control unit
N3/10 ME-SFI [ME] control unit
N10/10 Center SAM control unit
N10/11 Driver-side SAM control unit
N15/5 Electronic selector lever module control unit
N22/1 Climate control control unit
N30/4 Electronic Stability Program control unit
S2/3 Start/stop button
S9/1 Brake light switch
S29/5 Backup light activation/idle recognition switch
S40/3 Clutch pedal switch
S40/5 Start enable clutch pedal switch
S68/1 Le front seat belt buckle switch
CAN B Interior CAN
CAN C Drive train CAN
