SMART 453 Series User Manual

N23
A1
N30/4
L6/3
N3/10
B17/8
K40
K40k1
B11/4
L6/4
M21/2
M21/2b1
M2R14
B4/22
CAN B
N23s1
N23s2
N23s3
M4/4
K32
A9
B10/6
N10/10
K33
87
P83.30-4974-00
Introduction of the New smart fortwo coupé and smart forfour | Model Series 453
Climate control
Comfort

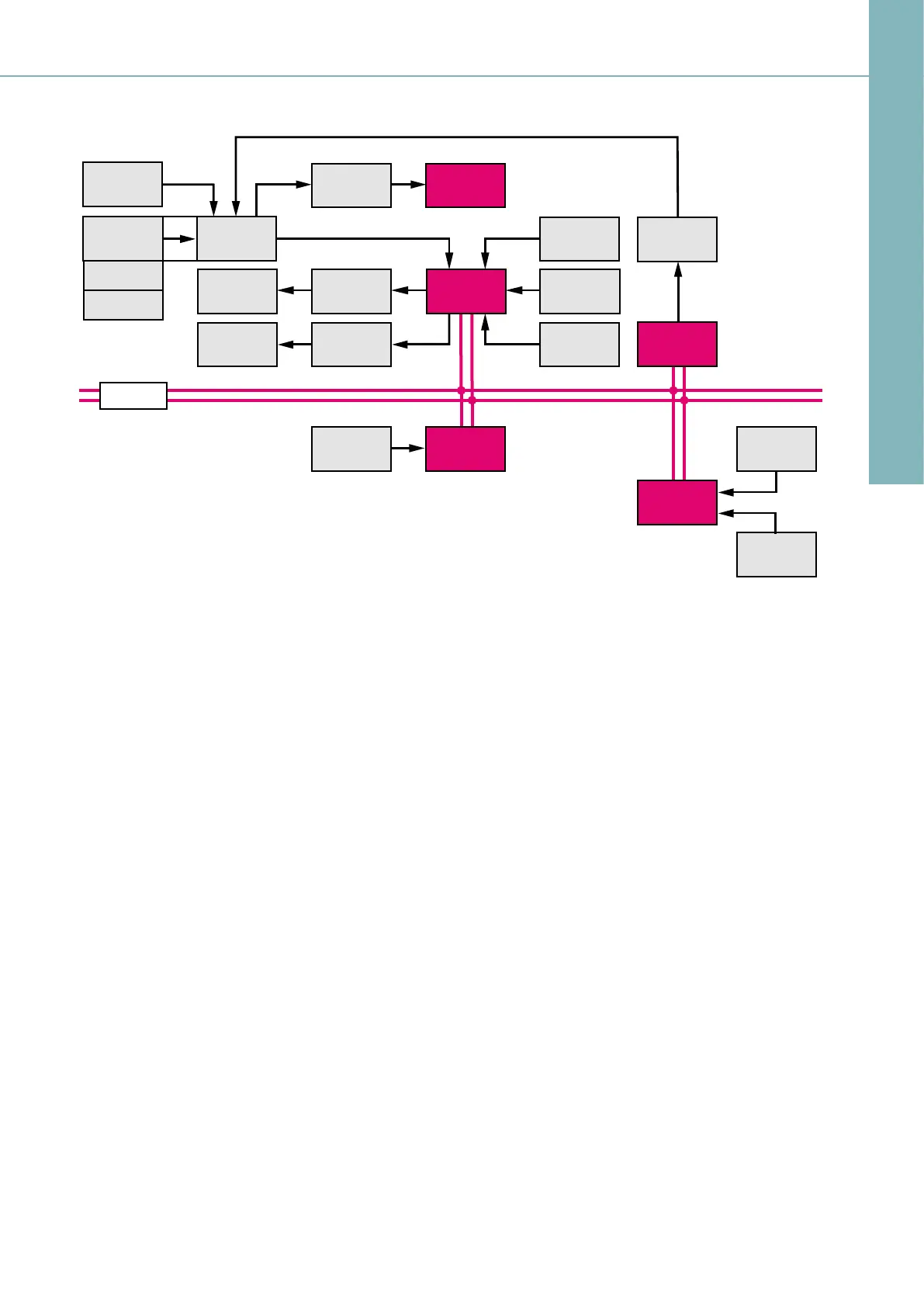

Climate control block diagram (manual air conditioning (codeI77))
A1 Instrument cluster
A9 Refrigerant compressor
B4/22 Coolant pressure sensor
B10/6 Evaporator temperature sensor
B11/4 Coolant temperature sensor
B17/8 Charge air temperature sensor
K32 Fan solenoid switch, combustion engine cooling system (ICE)
K33 Air conditioning power supply solenoid switch
K40 Combustion engine relay module
K40k1 Refrigerant compressor relay
L6/3 Le rear axle rpm sensor
L6/4 Right rear axle rpm sensor
M2 Blower motor
M4/4 Fan
M21/2 Right electrically adjustable and heated outside mirror
M21/2b1 Outside temperature sensor
N3/10 ME-SFI [ME] control unit
N10/10 Center SAM control unit
N23 Climate control control and operating unit
N23s1 Rear window heater button
N23s2 "A/C" button
N23s3 Fresh air/air recirculation mode switch
N30/4 Electronic Stability Program control unit
R14 Blower motor series resistor
CAN B Interior CAN
– This printout will not be recorded by the update service. Status: 06/2014 –
