Introduction of the New smart fortwo coupé and smart forfour | Model Series 453
Power windows
Comfort

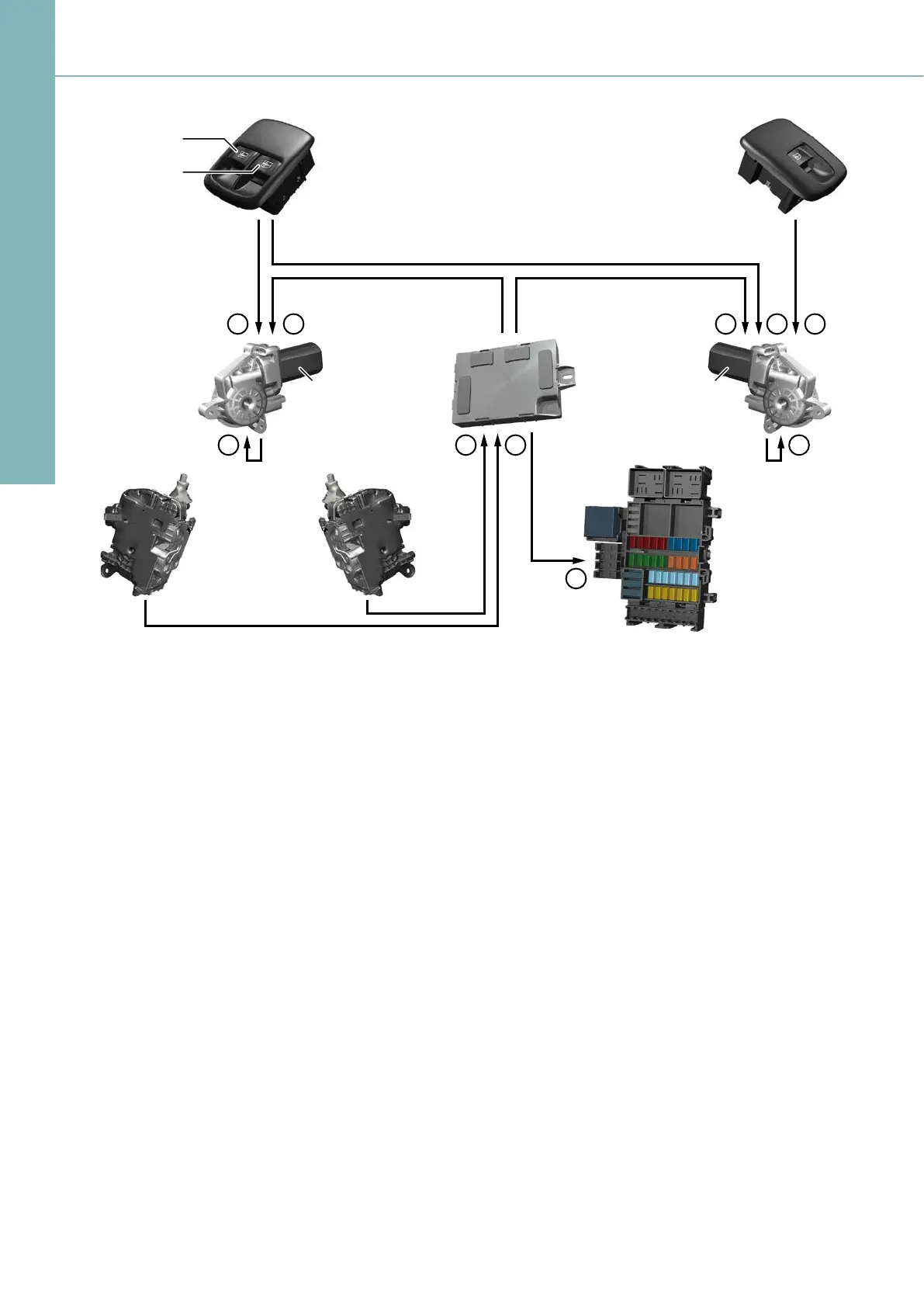

Data flow chart of power windows with convenience feature and anti-pinch protection
1 Power window enable signal
2 Power window power supply, actuation
3 Power window, request
4 Power window motor, actuation
5 Central locking microswitch, status
F2k2 Front power window relay
M10/3 Le front power window motor
M10/3n1 Le front power window motor actuation unit
M10/4 Right front power window motor
M10/4n1 Right front power window motor actuation unit
M14/5s1 Front passenger door central locking microswitch
M14/6s1 Driver door central locking microswitch
S20/1 Power window switch group, driver side
S20/1s1 Le front power window switch
S20/1s2 Right front power window switch
S21/2 Power window switch, passenger side
