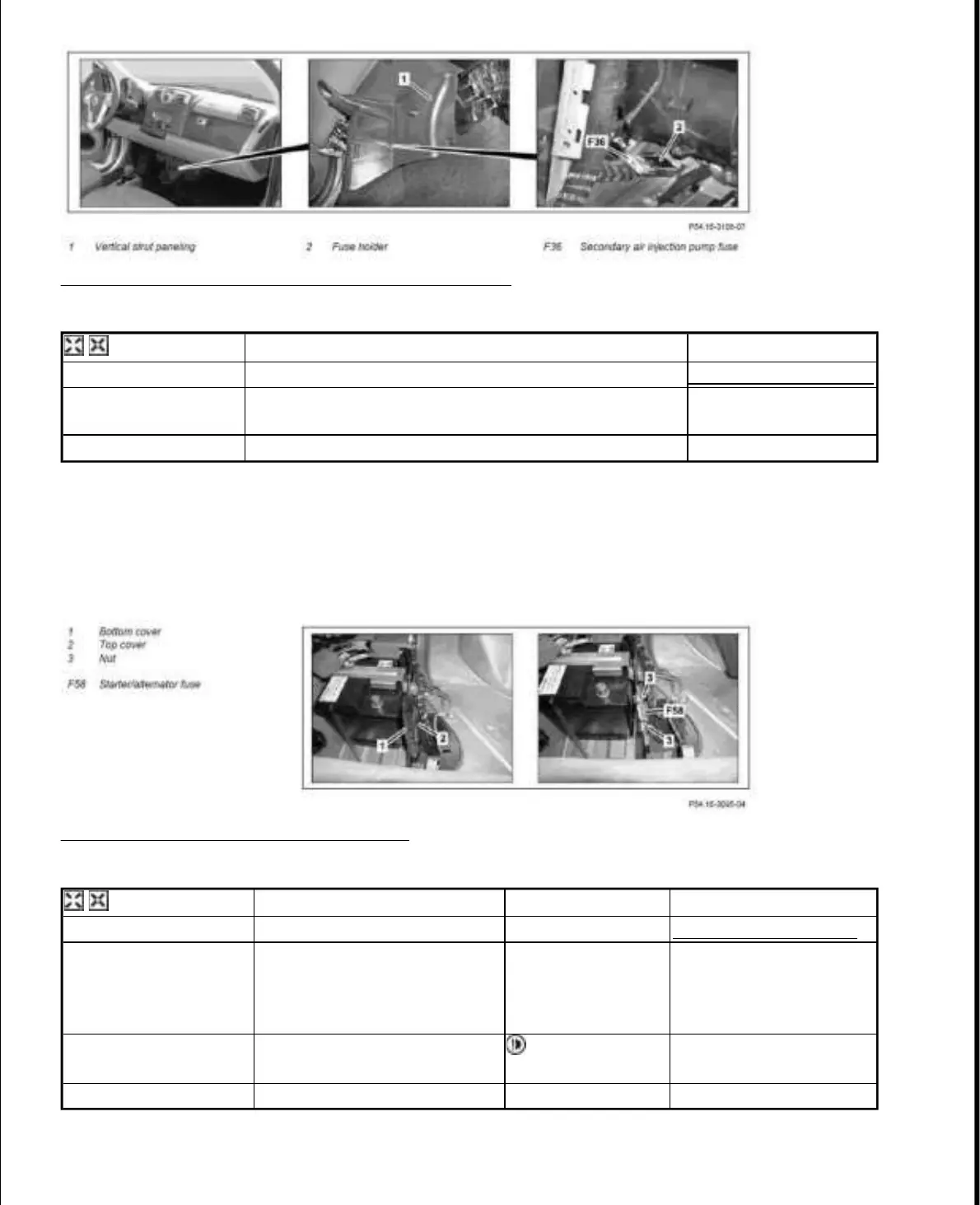

Fig. 16: Locating Secondary Air Injection Pump Fuse
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL MAIN FUSE OF POSITIVE LINE - AR54.15-P-0051MCU
MODEL 451.3/4 (except 451.391 /491)
Starter/alternator prefuse
Fig. 17: Locating Starter/Alternator Fuse
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL MAIN FUSE OF POSITIVE LINE - AR54.15-P-0051MCV
Remove/install
1 Remove vertical strut paneling (1) AR68.00-P-1500MCC
2 Pull fuse of secondary air injection pump (F36) out of
fuse holder (2)
3 Install in the reverse order
Remove/install
1 Disconnect battery ground line AR54.10-P-0003MCC
2 Unclip top cover (2) from
bottom cover (1) and remove
top cover (2) as well as bottom
cover (1)
3 Unscrew nuts (3) and remove
starter/alternator fuse (F58)
Replace self-
locking nuts (3).
4 Install in the reverse order
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 23 © 2011 Mitchell Repair Information Company, LLC.
