Main fuse of SAM [signal acquisition and actuation module] control unit

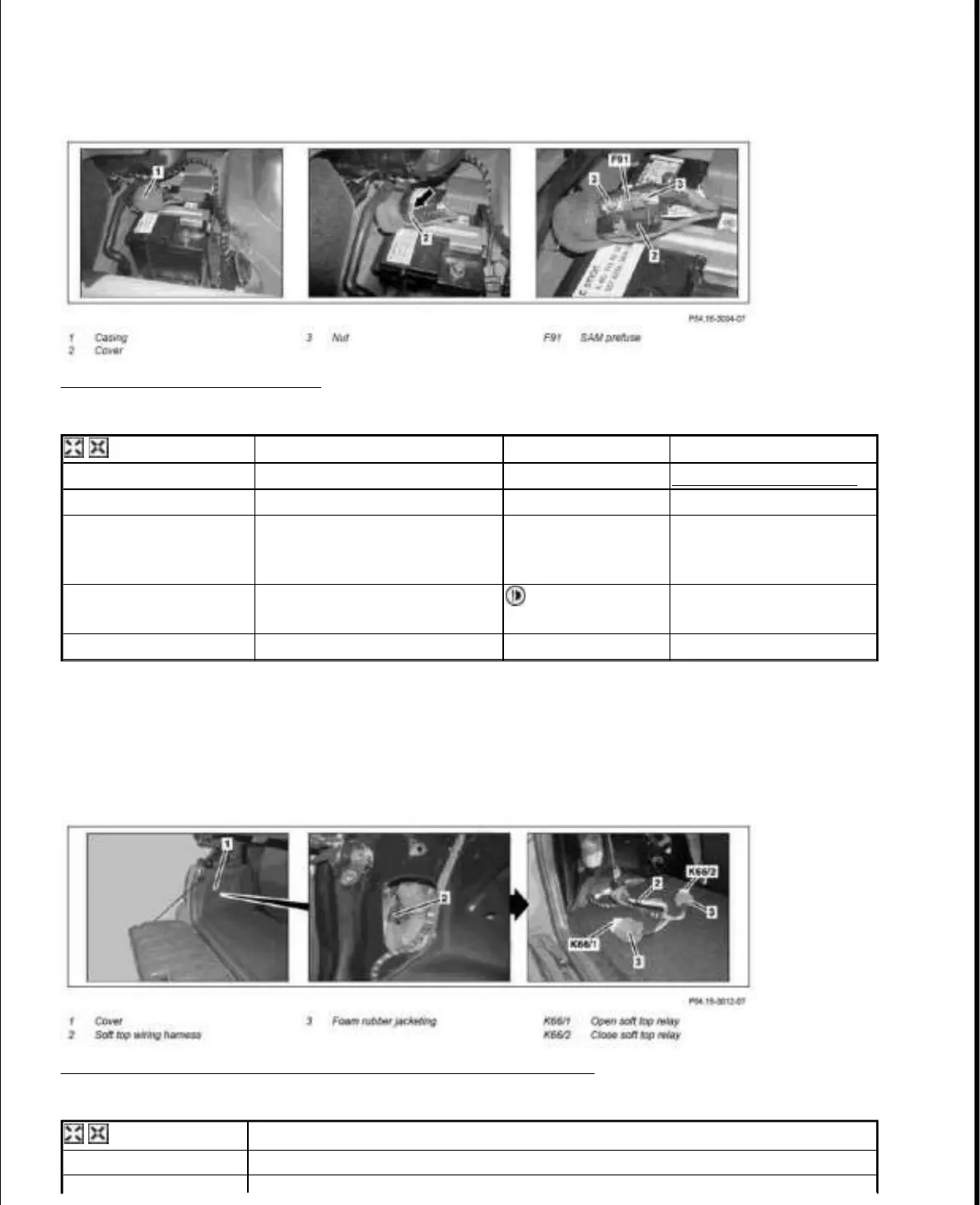

Fig. 18: Locating SAM Prefuse
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL ELECTRIC POWER SOFT TOP RELAY - AR54.15-P-1000MCO
30.11.06
MODEL 451.4
Fig. 19: Identifying Electric Power Soft Top Relay Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove/install
1 Disconnect battery ground line AR54.10-P-0003MCC
2 Invert casing (1) backwards
3 Unlock cover (2) in the
marked area (arrow) and fold
up
4 Unscrew nuts (3) and remove
SAM prefuse (F91)
Replace self-
locking nuts (3).
5 Install in the reverse order
Remove/install
1 Remove cover (1) on the left luggage compartment trim
