REPAIR WIRING HARNESS BY MEANS OF AXIAL SOLDER CONNECTORS - AR54.18-P-
0100-06A
1. Expose damaged cable or plug/coupling in easily accessible position and cut off.
Separate cores in wiring harness offset by approx. 45 mm.

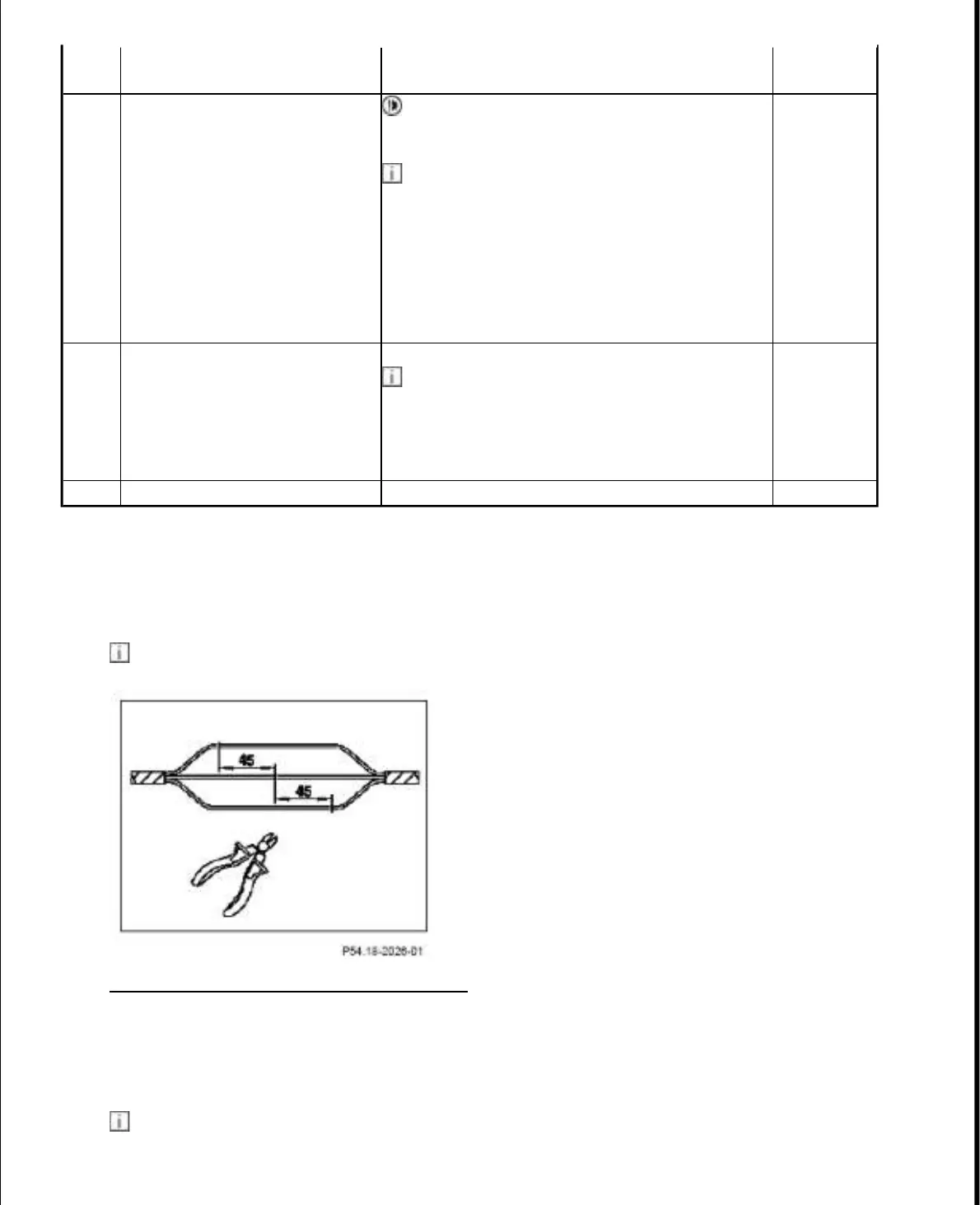

Fig. 25: Identifying Wiring Harness Offset
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
2. Cut new section of cable to match old cable.
3. Remove 15 mm of insulation at end of cables.
Pull cut-off insulation off the line while turning.
16
(G2) and remove electrical line
(1)
17
Route electrical line (1) out and
then remove
Route electrical line (1) accurately, as
otherwise the line may suffer from chafing and
crushing.
Installation: Replace damaged bracket (5, 8,
14, 15) and bracket (arrow A). The new brackets
(5, 8, 14, 15) as well as bracket (arrow A) should
be attached in exactly the same position of the
electrical line (1).
Make sure that the new holders (5, 8, 14, 15) and
the holder (arrow A) are not twisted through
180° when secured to the electrical line (1).
18
Transfer all markings made to
the electrical line (1) to the new
electrical line (1)
When replacing the electrical line (1).
This ensures that the brackets (5, 8, 14, 15),
the bracket (arrow A) as well as the bracket (11)
and bracket (arrow B) are positioned at exactly
the same point on the new electrical line (1),
their position should be corrected if necessary.
19 Install in the reverse order
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 29 © 2011 Mitchell Repair Information Company, LLC.
