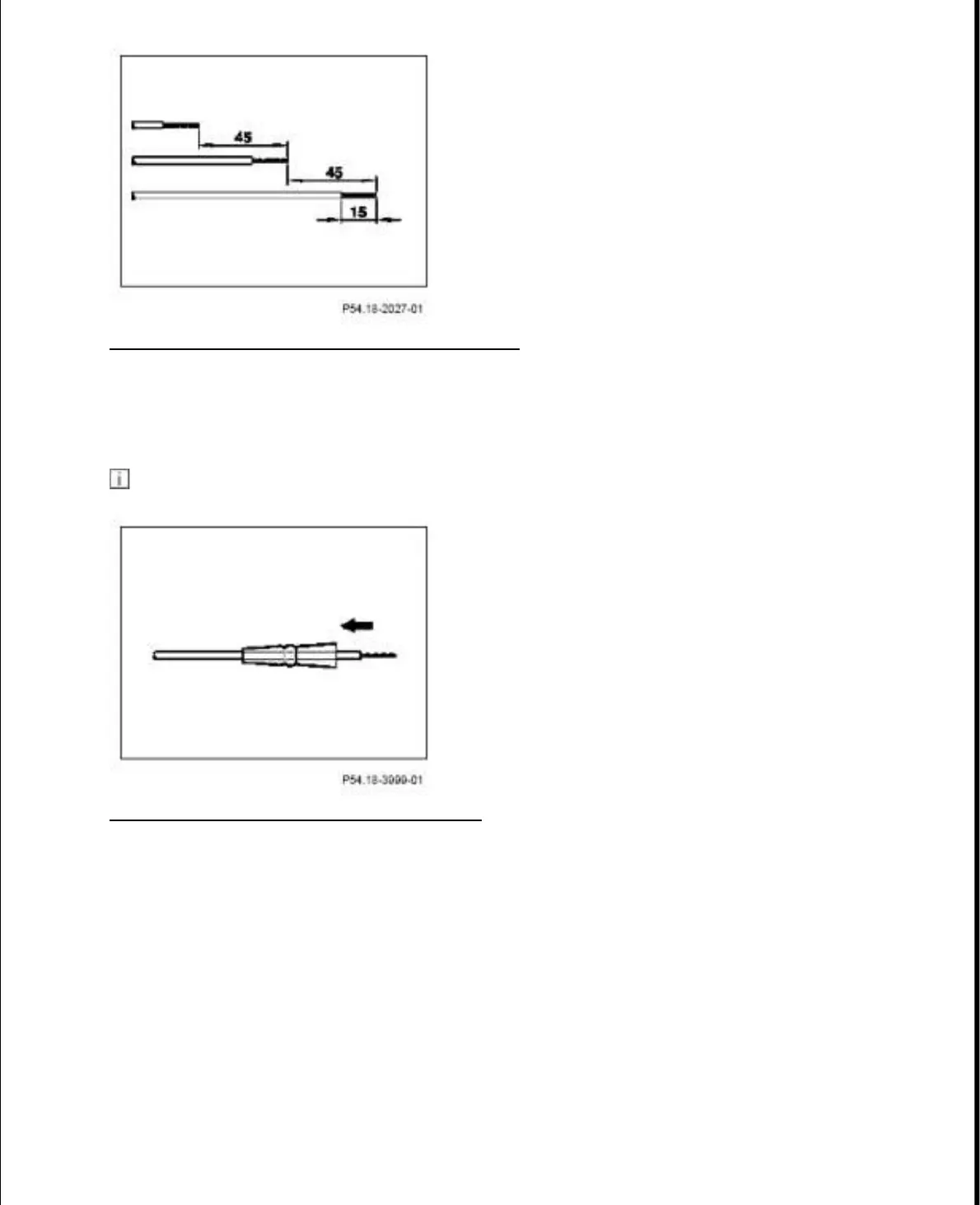

Fig. 26: Identifying Cable Insulation Dimensions
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
4. Select axial solder connector by means of cable cross-section.
5. Push the axial solder connector on line beyond the solder point.
Push on the thinner side of the axial solder connector first.
Fig. 27: Pushing On Axial Solder Connector
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
6. Twist the line ends together.
7. Push back the axial solder connector on the transposition while turning.
