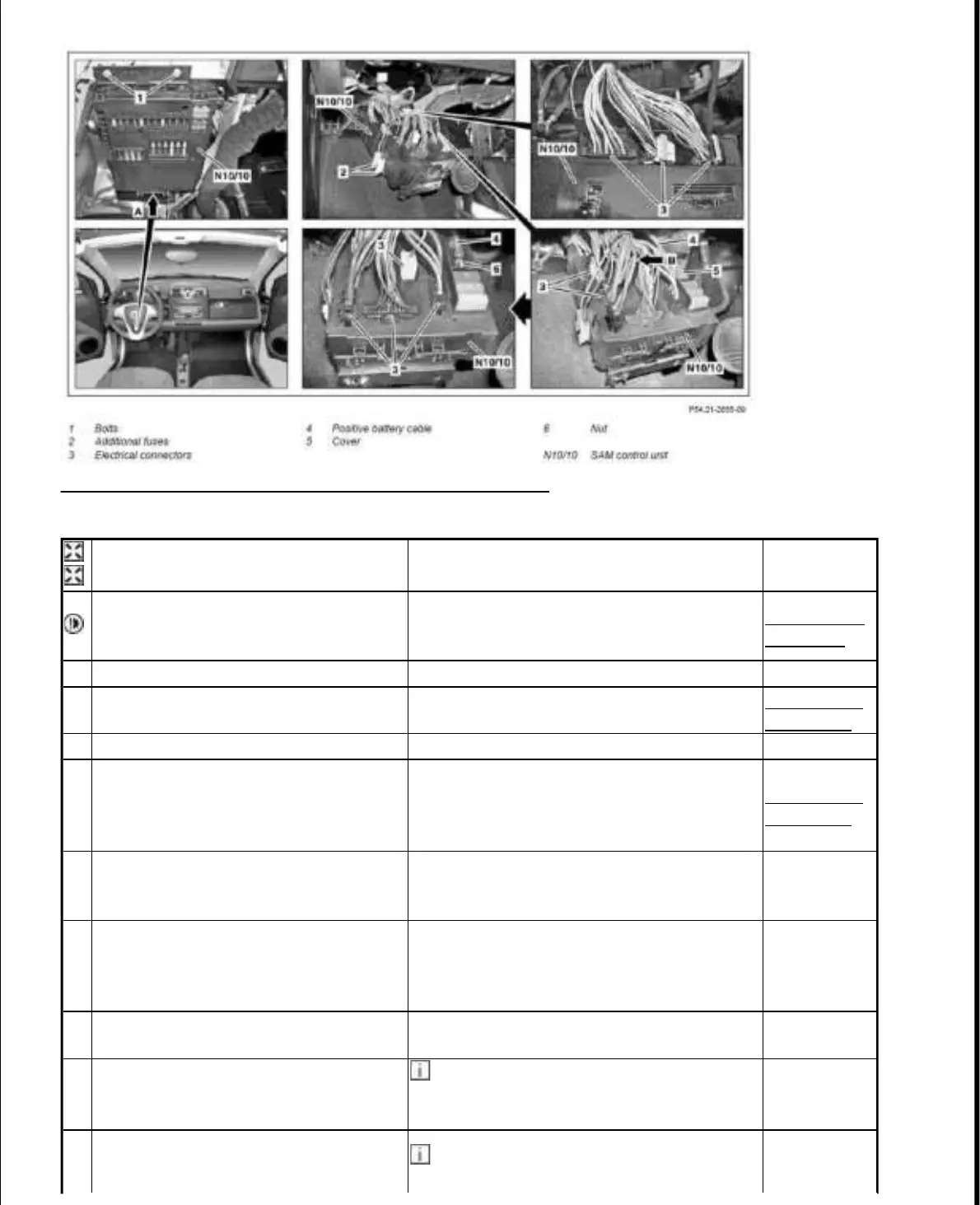

Fig. 32: Identifying Front SAM Control Unit Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove/install
Notes on avoiding damage to
electronic components due to
electrostatic discharge
AH54.00-P-
0001-01A
1 Turn off ignition
2 Disconnect ground line of battery
AR54.10-P-
0003MCC
3 Adjust the left front seat to the rear
4
Unclip left tweeter from the dashboard
and place to one side with the electric
line connected
Vehicles up to 30.8.10 with code (C17)
Sound package (2 tweeters, 2 bass reflex
boxes and diplexer) (FFO) or Vehicles with
code (C54) Sound system 2
AR82.62-P-
1000MCC
5
Unclip SAM control unit (N10/10) in
the rear area (arrow A) and fold down
forwards
6
Unscrew bolts (1) and carefully lower
the SAM control unit (N10/10) until
the electrical connectors (3) are
accessible
7
Unclip cover (5) on SAM control unit
(N10/10)
8
Unscrew nut (6) and remove positive
battery cable (4)
If the nut (6) is detached from the
positive battery cable (4), it must be
replaced by a collar nut.
Remove additional fuses (2) with
The number of additional fuses may vary
(2) depending on the vehicle model and
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 37 © 2011 Mitchell Repair Information Company, LLC.
