REMOVE/INSTALL WIPER SWITCH - AR54.25-P-0003MCC
MODEL 451.3/4

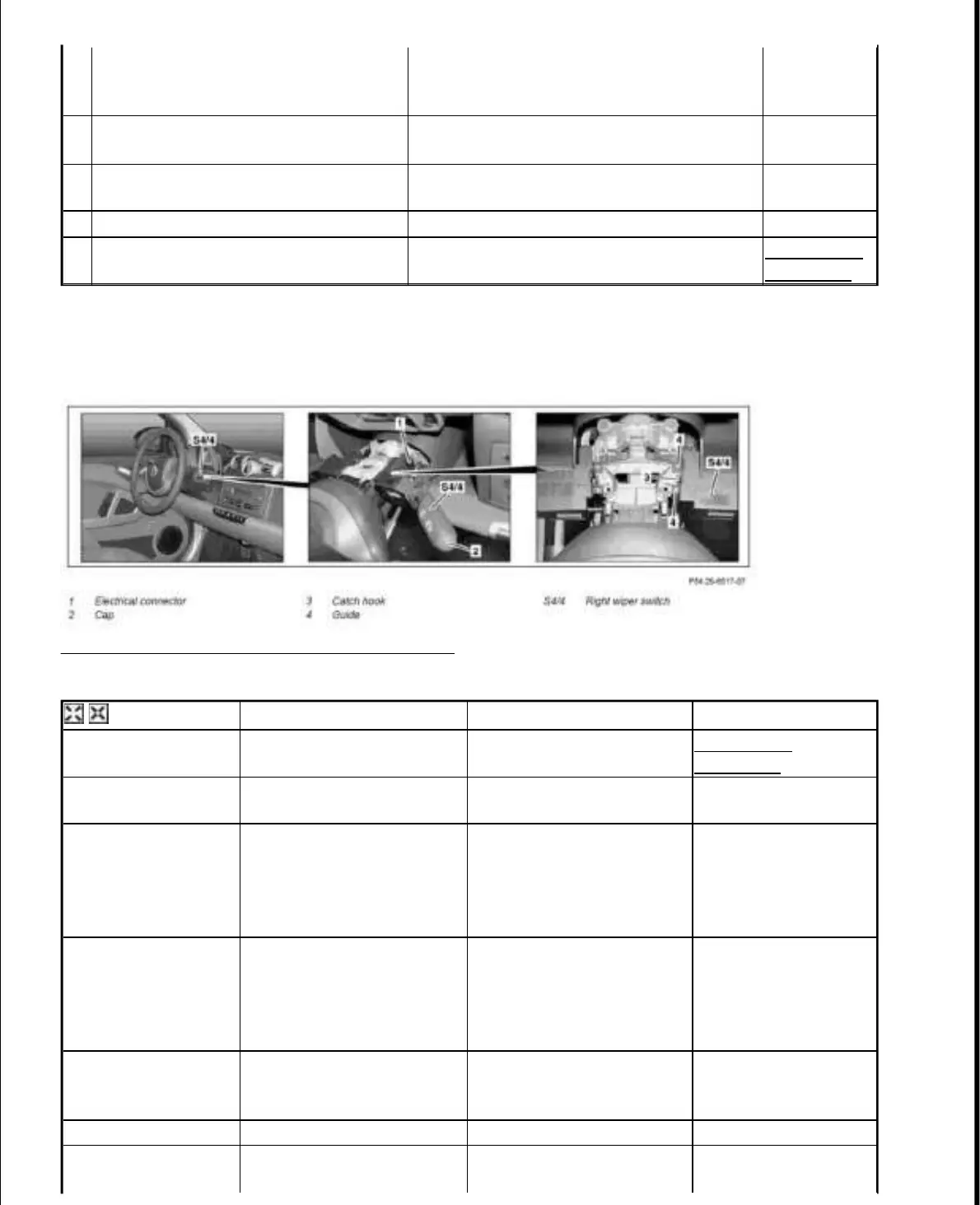

Fig. 33: Identifying Wiper Switch Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
9
connector on SAM control unit
(N10/10)
equipment.
Remove additional fuses (2) with connector
as the connectors are coded.
10
Separate electrical connectors (3) and
electrical connector (arrow B)
11
Remove SAM control unit (N10/10)
from the vehicle
12 Install in the reverse order
13 Flash the SAM control unit (N10/10)
When replacing the SAM control unit
(N10/10).
AR54.21-P-
0012MCU
Remove/install
1 Remove steering column
cover
AR68.30-P-
2000MCC
2 Unclip catch hook (3) on
right wiper switch (S4/4)
3 Lift right wiper switch
(S4/4) upwards from the
guides (4) and remove to
one side until the electrical
connector (1) is accessible
4 Detach electrical connector
(1) on the right wiper
switch (S4/4) and remove
the right wiper switch
(S4/4)
5 Release cap (2) by applying
suitable knife to right wiper
switch (S4/4) and remove
When replacing right wiper
switch (S4/4).
6 Install in the reverse order
7 Conduct function test of
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 38 © 2011 Mitchell Repair Information Company, LLC.
