REMOVE/INSTALL COCKPIT SWITCH GROUP - AR54.25-P-1000MCC
MODEL 451.3/4

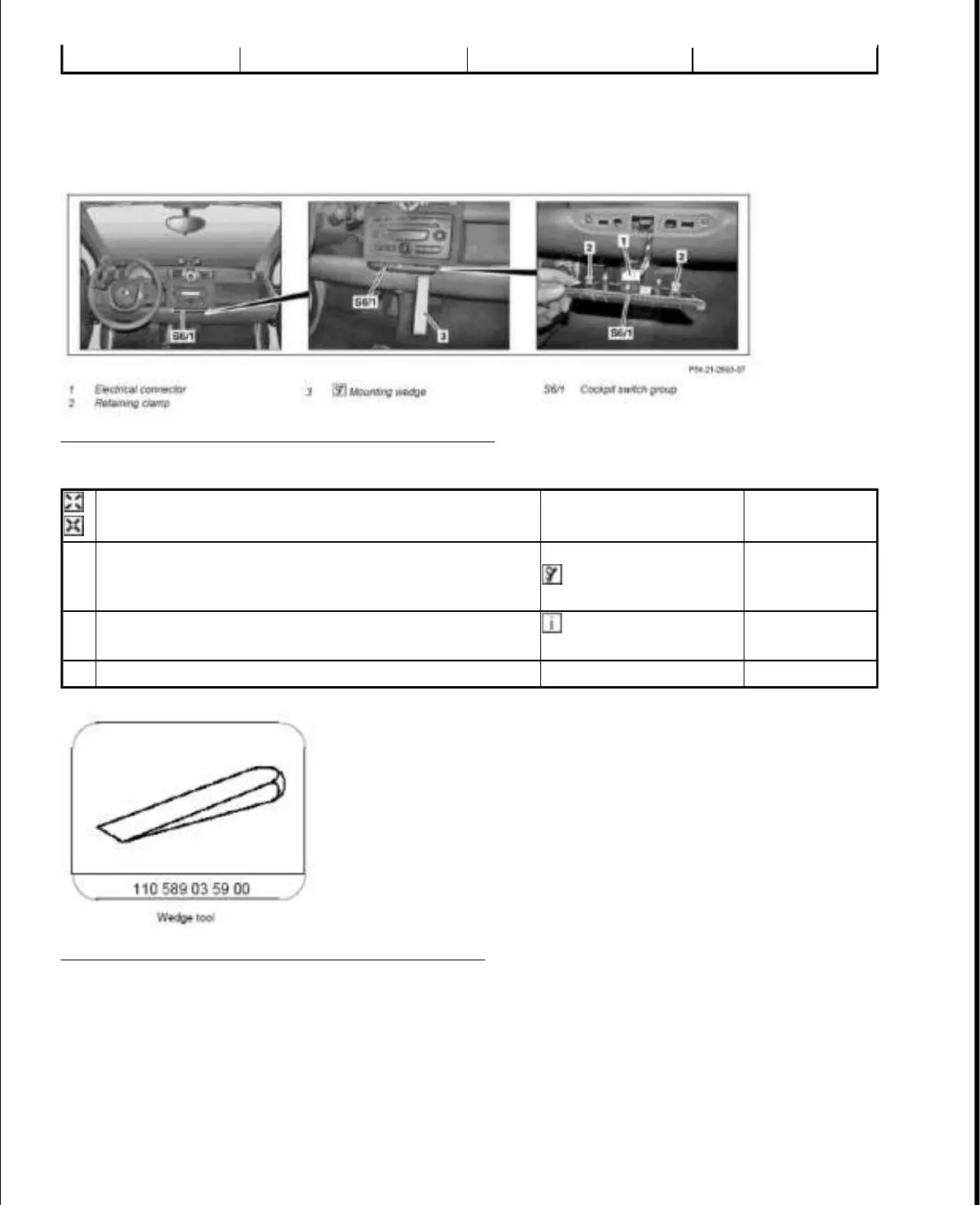

Fig. 34: Removing/Installing Cockpit Switch Group
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Fig. 35: Identifying Wedge Tool (110 589 03 59 00)
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL IGNITION/STARTER SWITCH LOCK CYLINDER - AR54.25-P-1030MCU
MODEL 451.3/4
right wiper switch (S4/4)
Remove/install
1
Loosen cockpit switch group (S6/1) using assembly
wedge (3) and remove until the electrical connector (1)
is accessible
*110589035900
2
Separate electrical connector (1) and remove cockpit
switch group (S6/1)
Check retaining clips
(2), replace is necessary.
3 Install in the reverse order
