REMOVE/INSTALL COMBINATION SWITCH - AR54.25-P-2800MCC
MODEL 451.3/4

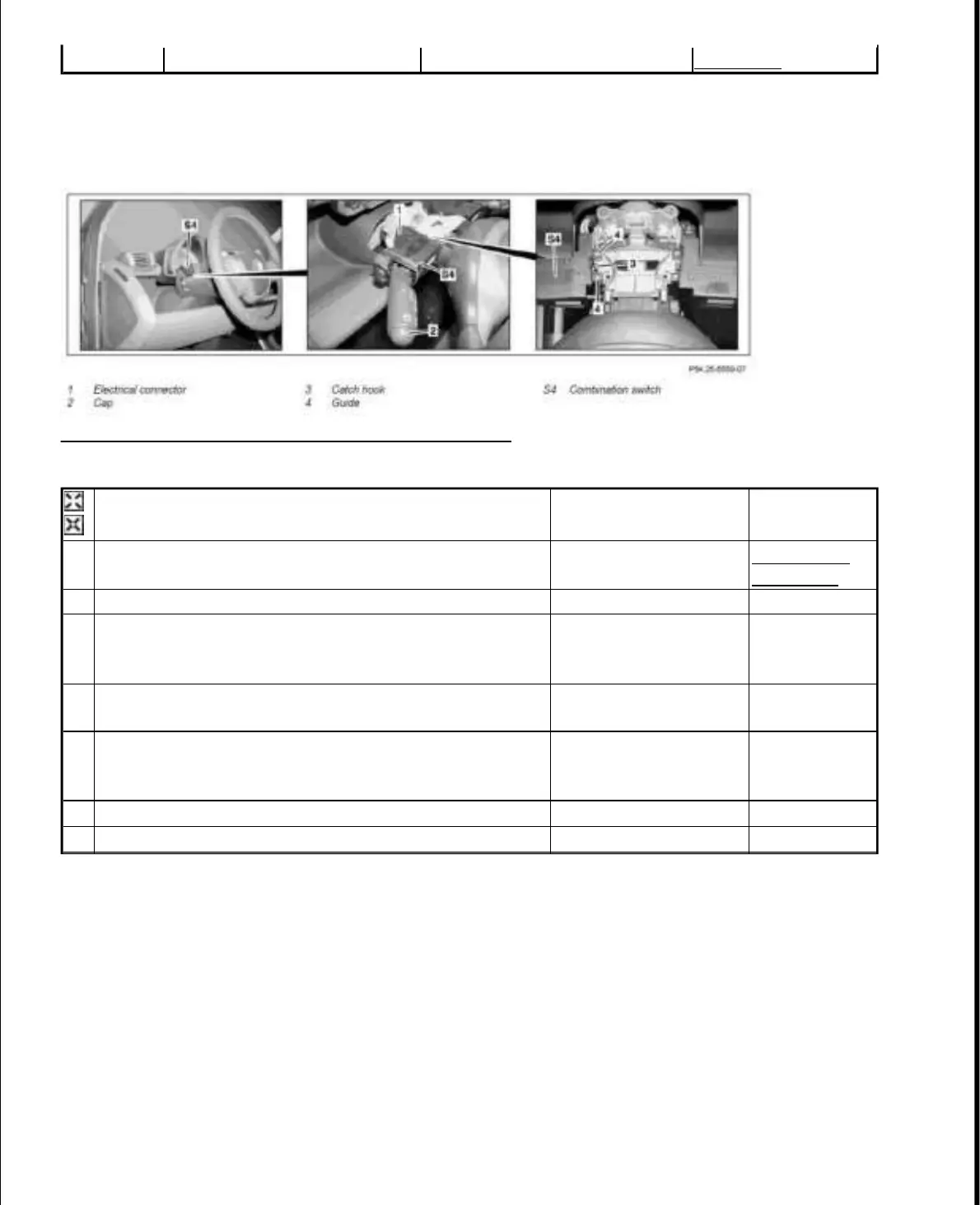

Fig. 37: Identifying Combination Switch Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL CRUISE CONTROL SWITCH - AR54.25-P-2803MCC
MODEL 451.3/4 with CODE (V27) Cruise control/Temposet
4515MCU
Remove/install
1 Remove steering column cover
AR68.30-P-
2000MCC
2 Unclip catch hook (3) on combination switch (S4)
3
Lift combination switch (S4) upwards from the guides
(4) and remove to one side until the electrical connector
(1) is accessible
4
Detach electrical connector (1) on the combination
switch (S4) and remove combination switch (S4)
5
Release cap (2) by applying suitable knife to
combination switch (S4) and remove
When replacing the
combination switch
(S4).
6 Install in the reverse order
7 Conduct function test of combination switch (S4)
