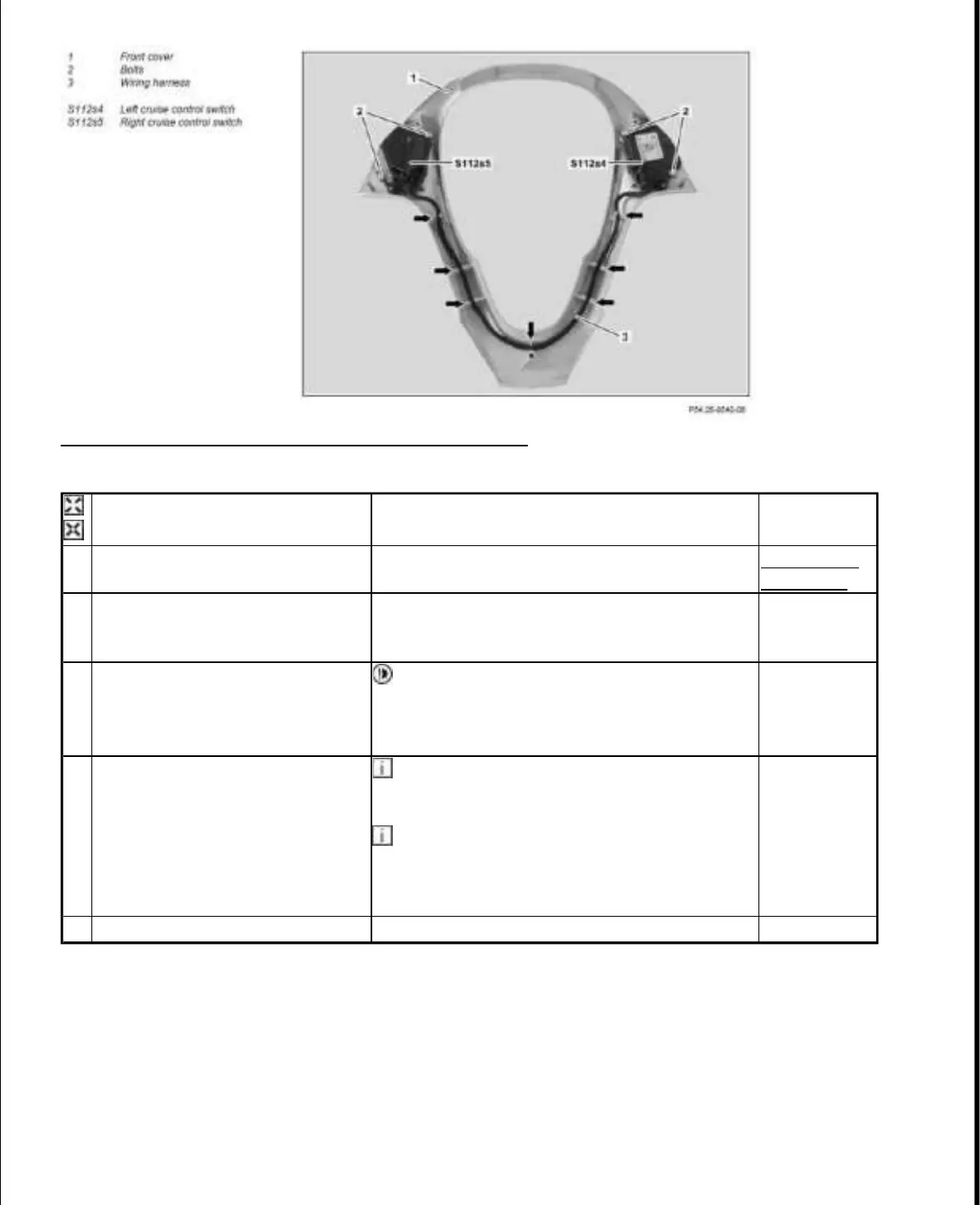

Fig. 38: Identifying Cruise Control Switch Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL INSTRUMENT CLUSTER - AR54.30-P-6015MCU
MODEL 451.3/4
Remove/install
1
Remove front cover (1) from
steering wheel spokes
AR46.10-P-
0105MCC
2
Unclip electrical wiring harness
(3) from mounting (arrows) of
front cover (1)
3 Unscrew left and right bolts (2)
Installation: Carefully tighten bolts (2) and
make sure that the front covering (1) is not
damaged as otherwise it will have to be
replaced.
4
Remove left cruise control switch
(S112s4) and right cruise control
switch (S112s5)
The left cruise control switch (S112s4) and
right cruise control switch (S112s5) are
designed as a unit and they cannot be separated.
Installation: Check left cruise control switch
(S112s4) and right cruise control switch
(S112s5) are correctly seated in the front cover
(1).
5 Install in the reverse order
