SMART MOD 7 - Time Delay Setup

INSTALLATION & OPERATION
9
This table shows the
delay for each of the
switch settings. Set
the time delay as you
would for any stereo
processor
Time Delay Setup
The rotary switch is for setting the Surround Delay Time.

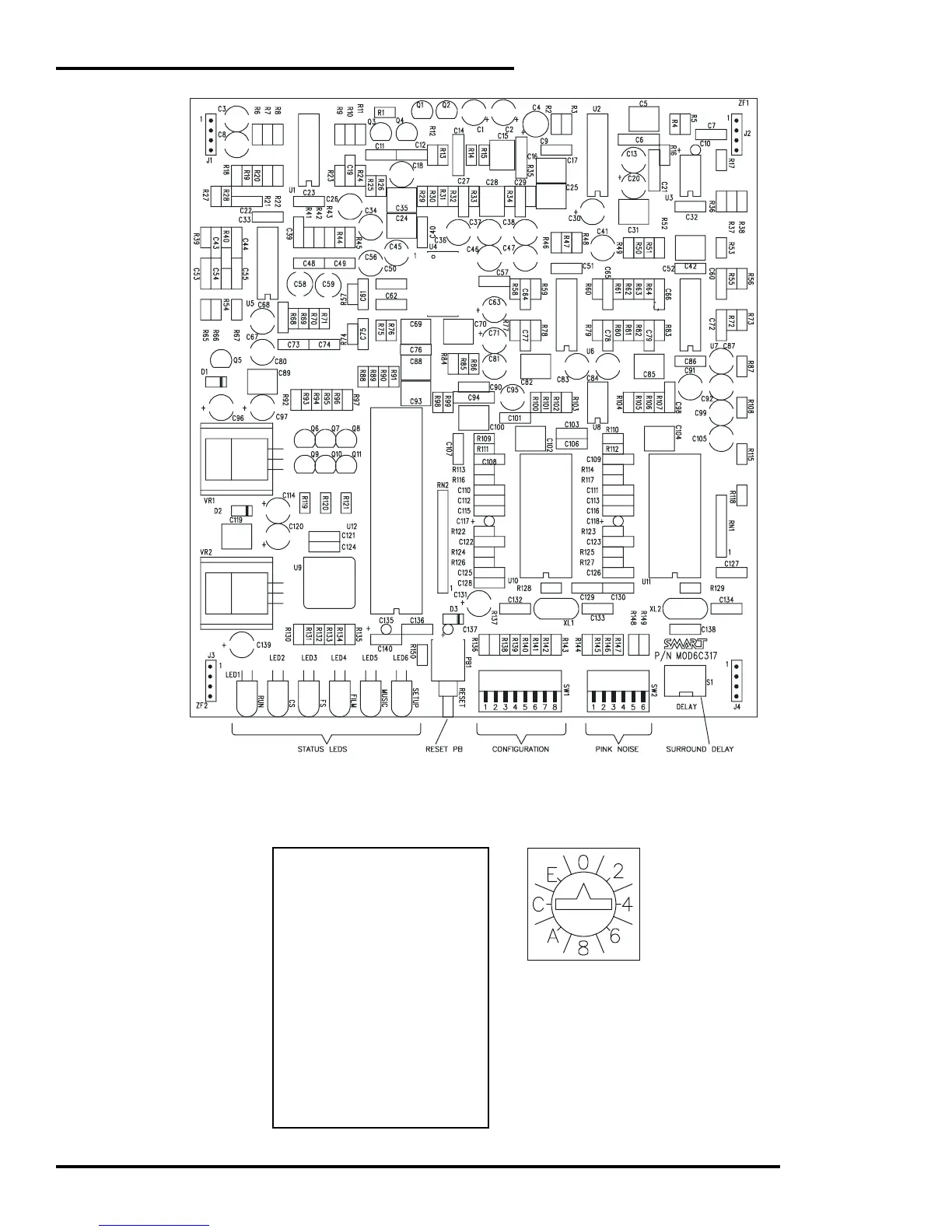

The switch is labeled as shown in this drawing:
POSITION DELAY (in mSec)
010
120
230
340
450
560
670
780
890
9 100
A 110
B 120
C 130
D 140
E 150
F 160
