3-2
Using a #2 Phillips-head screwdriver remove screws ① and ② (seen in
figure 1) and lift up and away to remove the side panel.
Place the generator on a level surface.
DO NOT tilt the generator while adding
oil. It can cause you to overfill the oil
and/or cause the oil to leak into areas in
which it is not intended.

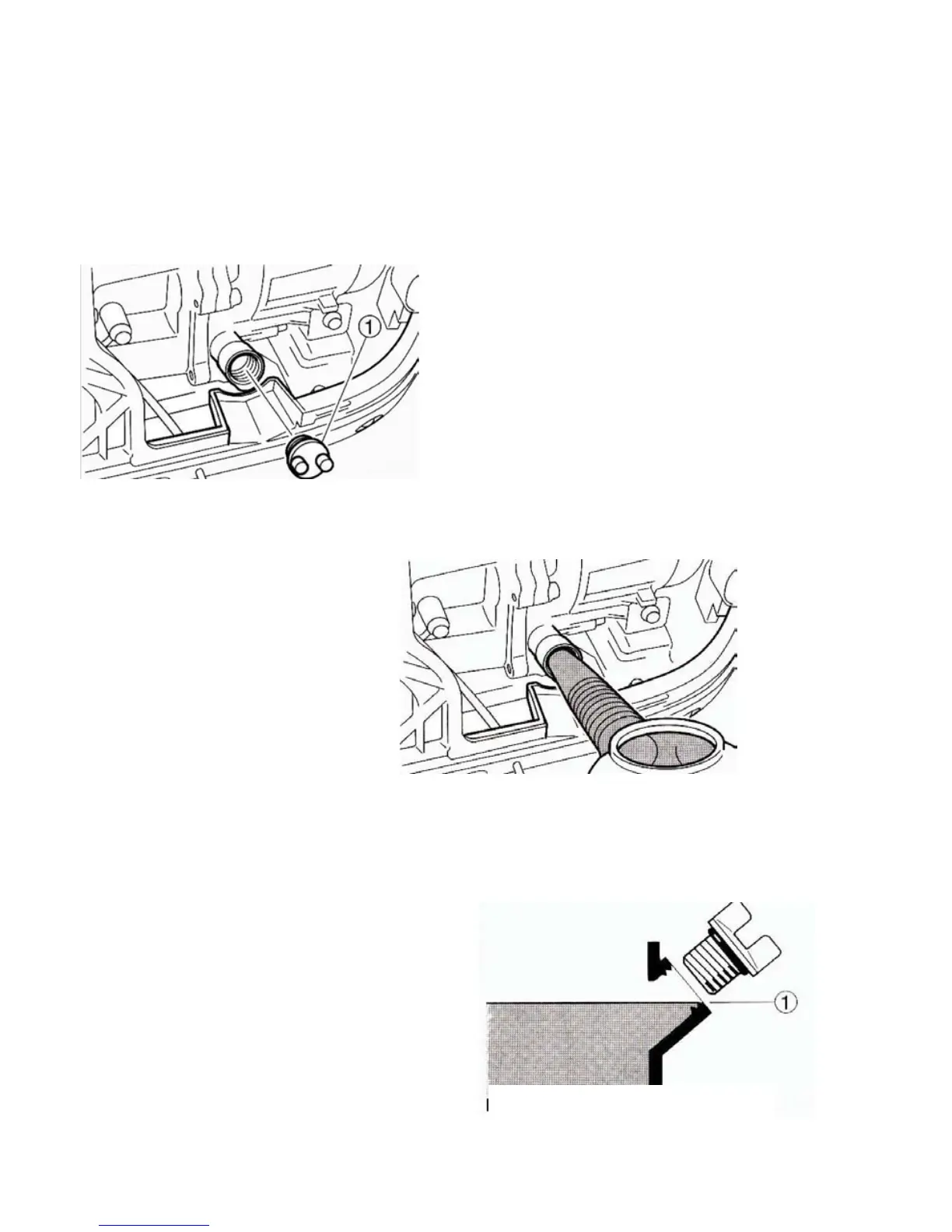

Remove the oil filler cap ① (seen in
figure 2)
Using the funnel
(provided) fill with 0.42
quart of SAE 10W-30 or
10W-40 (provided) (see
figure 3). See figure 4 for
proper oil level ①.
Replace oil filler cap and
secure side panel with screws.
Recommended engine oil:
A. YAMALUBE 4 (10W-40)
SAE10W-30 or 10W-40
B. SAE #30
C. SAE#20
D. SAE#10W
Recommended engine oil grade:
API Service SE type or higher
Engine oil quantity:
0.4L (0.42 US qt，0.35 Imp qt)
