Smarter tools Mega-550S - Parts List and Diagram

9

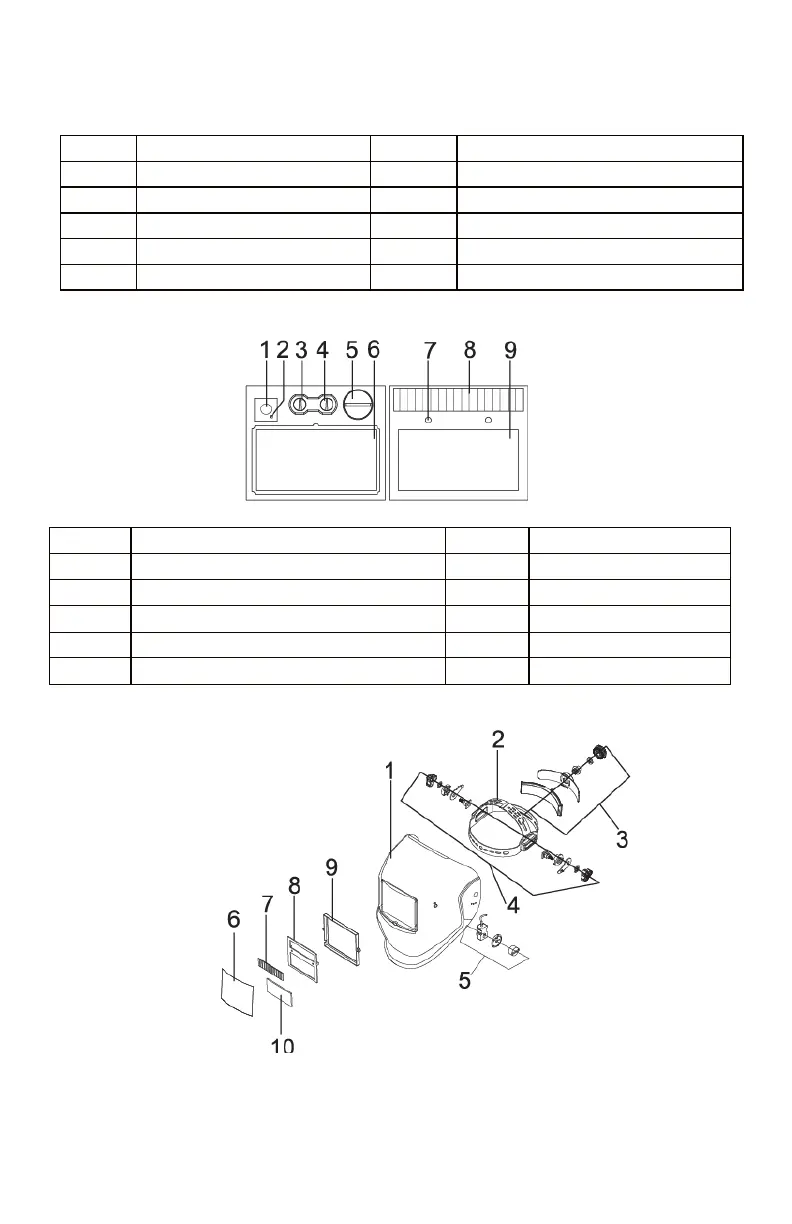

X. Parts List and Diagram
Part#
Description
Part#
Description
1
Self-test button
6
LCD
2
Low voltage indicator
7
Arc sensor
3
Delay time control knob
8
Solar cell
4
Sensitivity control knob
9
UV/IR filter
5
lithium batteries
Part#
Description
Part#
Description
1
Helmet shell
6
Front cover lens
2
Headband height adjusting pin
7
Solar panel
3
Headband diameter adjusting
8
Fixed plate
4
Headband angle adjusting Knob
9
Cartridge frame
5
Shade control knob
10
Filter lens
