SmartLab cadspeed - Installation

25
Installation of the smartLAB® cadspeed
1. Installation for speed mode

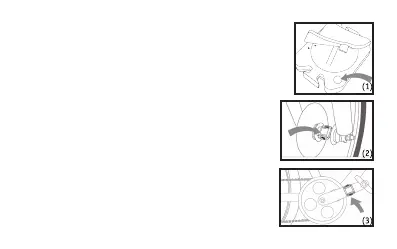

Put the curved rubber mat onto the back of the sensor
(1). Now mount the sensor with the large rubber band
onto the wheel axle (2).
2. Installation for cadence mode
Put the at rubber mat onto the back of the sensor
(1). Now mount the sensor with the small rubber
band onto the padle crank (3).
