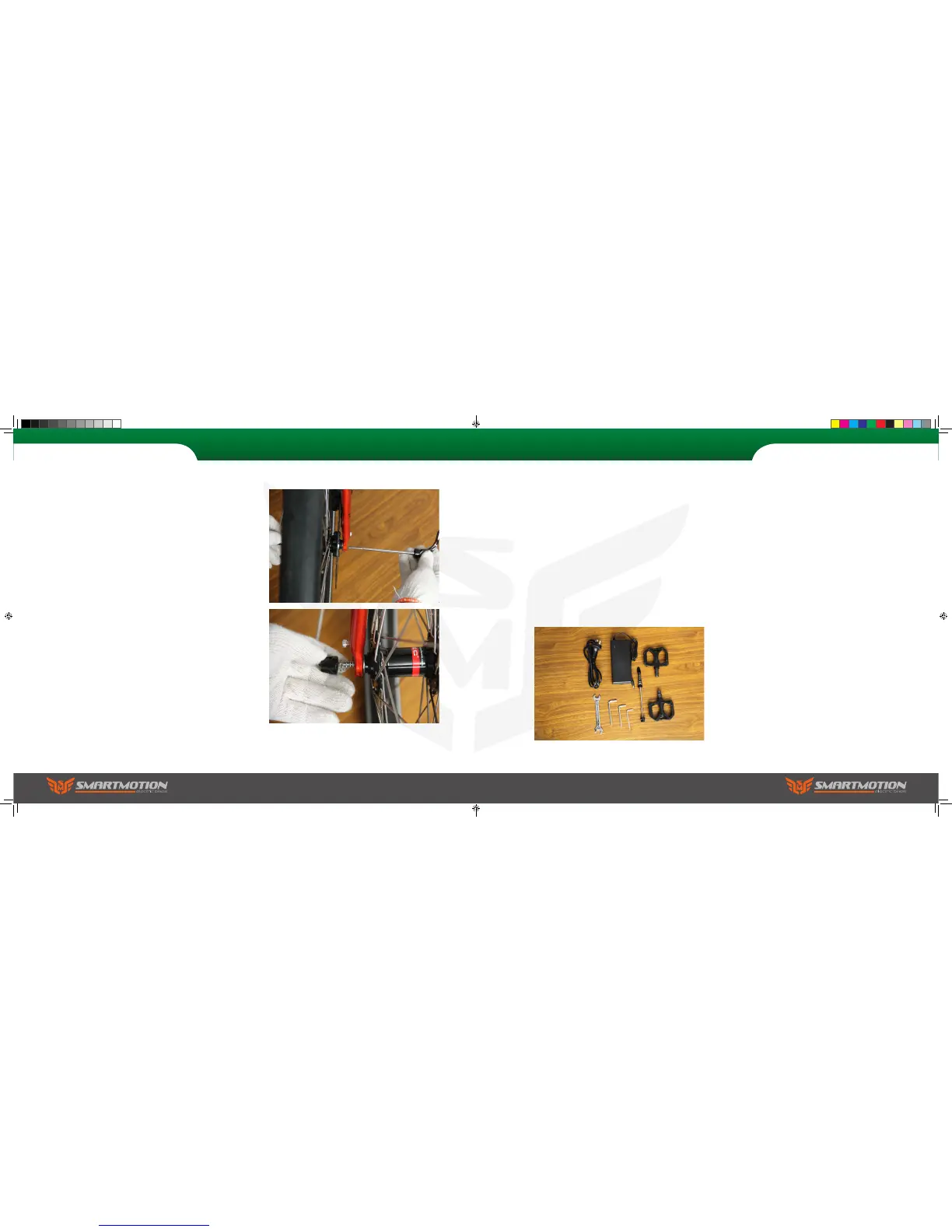

7. Front wheel
Assemble the front wheel quick release axle by
pushing it through the hollow hub, making sure
that one spring is on each side of the hub. Then
screw on the end nut several turns. Next, carefully
lift the bike front forks off the ground and lower the
forks onto the wheel axle, being careful the disc
rotor ts correctly into the disc calipers (this job is
best with 2 people). Tighten the non-rotor side nut
nger tight and try to close the quick release lever.
Loosen or tighten the nut until it takes the correct
amount of force to close the lever. It should be hard
to close, but not so hard you cannot fully close it. It
must fully close (as in picture) otherwise the wheel
may come loose, causing serious injury. Note: if
you are not well trained in cycle assembly, this
procedure must be checked by a cycle technician.
2. Assembly Instructions
Pacer
2. Assembly Instructions
Catalyst
In the Catalyst box you will nd the following items:
1. SmartMotion electric bicycle
2. Battery charger
3. 2X Pedals
4. Tool kit (4mm, 5mm & 6mm allen key,
8mm/10mm spanner, 15mm spanner)
5.
2X keys for battery lock
6. Front wheel quick release axle
Sports user manual.indd 8-9 7/15/2016 4:58:46 PM
