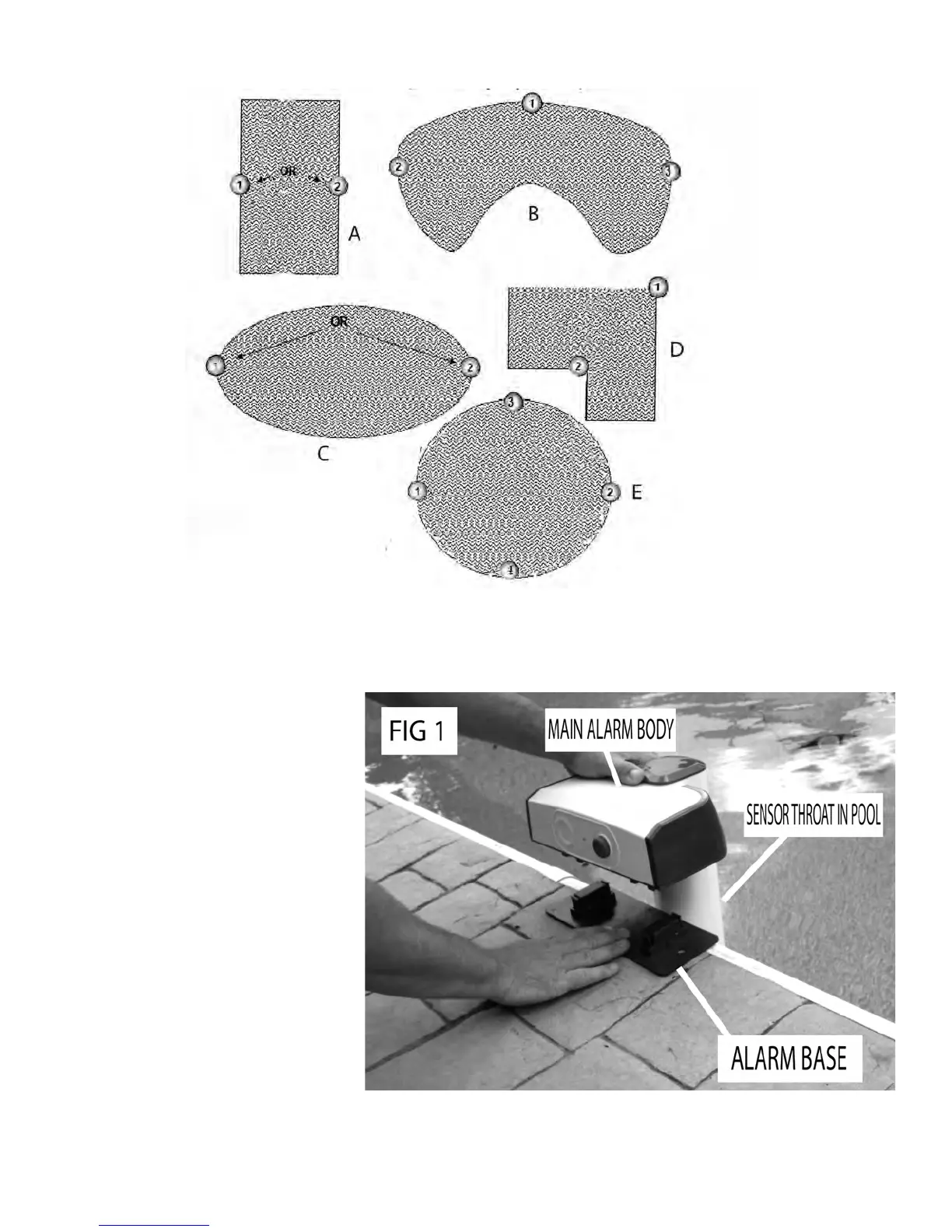

CHOOSING THE LOCATION TO INSTALL ALARM (cont.)
INGROUND INSTALLATIONS
(Aboveground installations can be found after step 7)
STEP 1
Test fit the alarm (A) in the location as
predetermined by the configuration above. The
alarm sensor pipe throat should be in the water
as shown, and the mounting area for the base
shall be level and flat. The alarm base (B)
should snap into the bottom of the main alarm
body easily while allowing the sensor throat to
extend directly into the pool at a 90 degree
angle as shown in FIG 1.
