3. Mount the tray assembly as high as possible within the structure of the vehicle. The
ideal location for the generator is at the top of the truck in the dunnage area. The
manufacturer must also take sufficient precautions to ensure that the generator is not
mounted in the path of the deck gun/water cannon.
4. Mount the hydraulic generator tray securely to vehicle. Secure the generator to the
floor of the enclosure using mounting hardware (not included), as shown (reference
Figure 8). Using a nylon lock nut, thread locking compound, or lock washer is
preferred.
1/2-13UNC Screw
1/2” Flat Washer Generator Tray
Dunnage Area
Floor
1/2” Flat Washer 1/2” Lock Washer
1/2-13UNC Nut

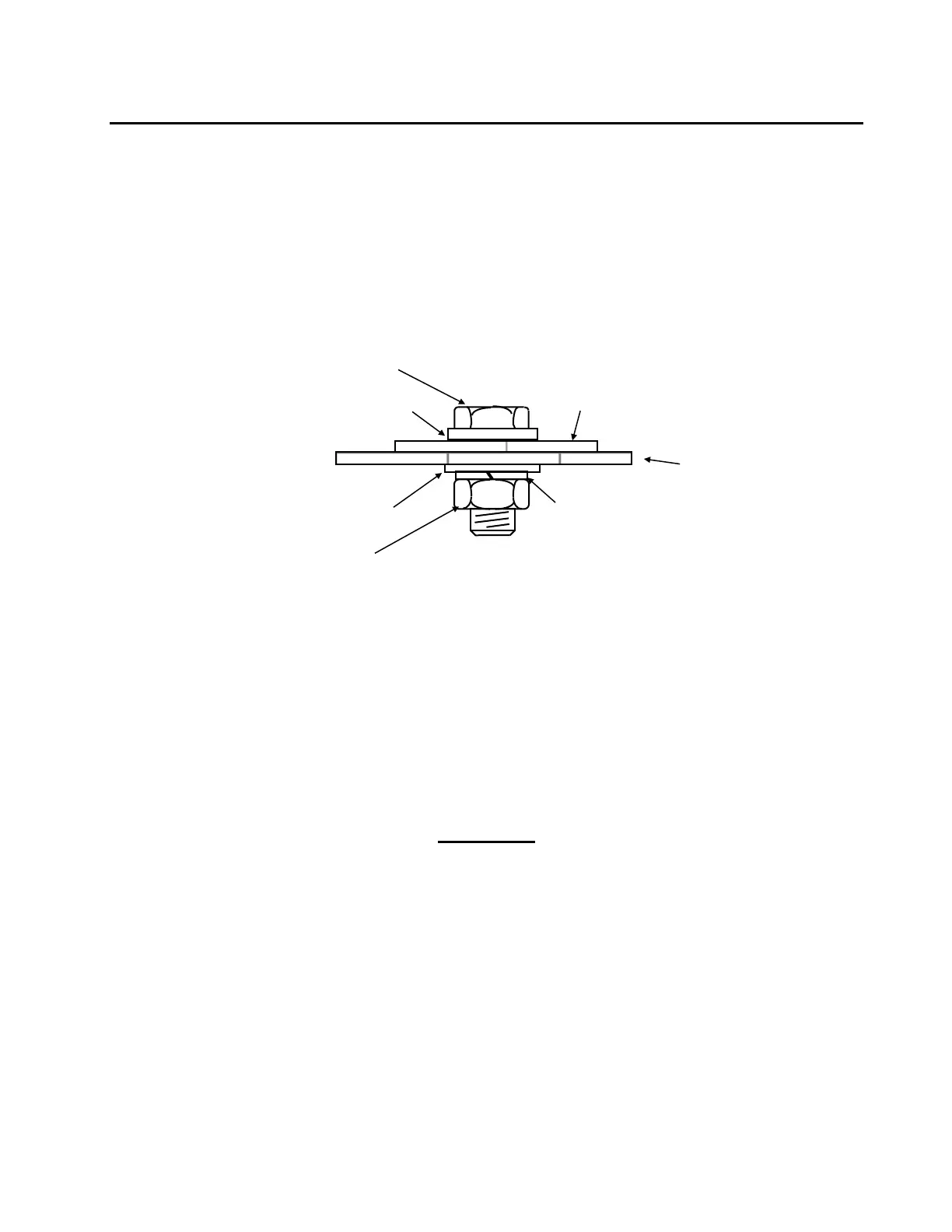

Figure 8
WARNING:
Never mount the Generator on its side or upside down. Always mount the generator
upright with its base horizontal. Improper mounting will lead to poor performance
and damage to the system and will void the system’s warranty.
Never operate an AC modular generator system that is not secured in place; damage
will result.
Do not mount the hydraulic pump, cooler/fan assembly or tray assembly in any
location that is not well ventilated. External heat sources elevating the hydraulic fluid
and/or the generator temperature will result in premature wear and degraded system
performance and void the system’s warranty.
To Next Page
