6. Mount Command & Control Center:
a. Create hole pattern as shown in Figure 10.
b. Mount Command & Control Center to vehicle using #10 stainless steel button
head or cap screw fasteners. Take care not to overtighten the fasteners, as
damage to the plastic Command & Control Center housing may result.
c. Connect Command & Control Center to system controller unit using harness P/N
3722004.

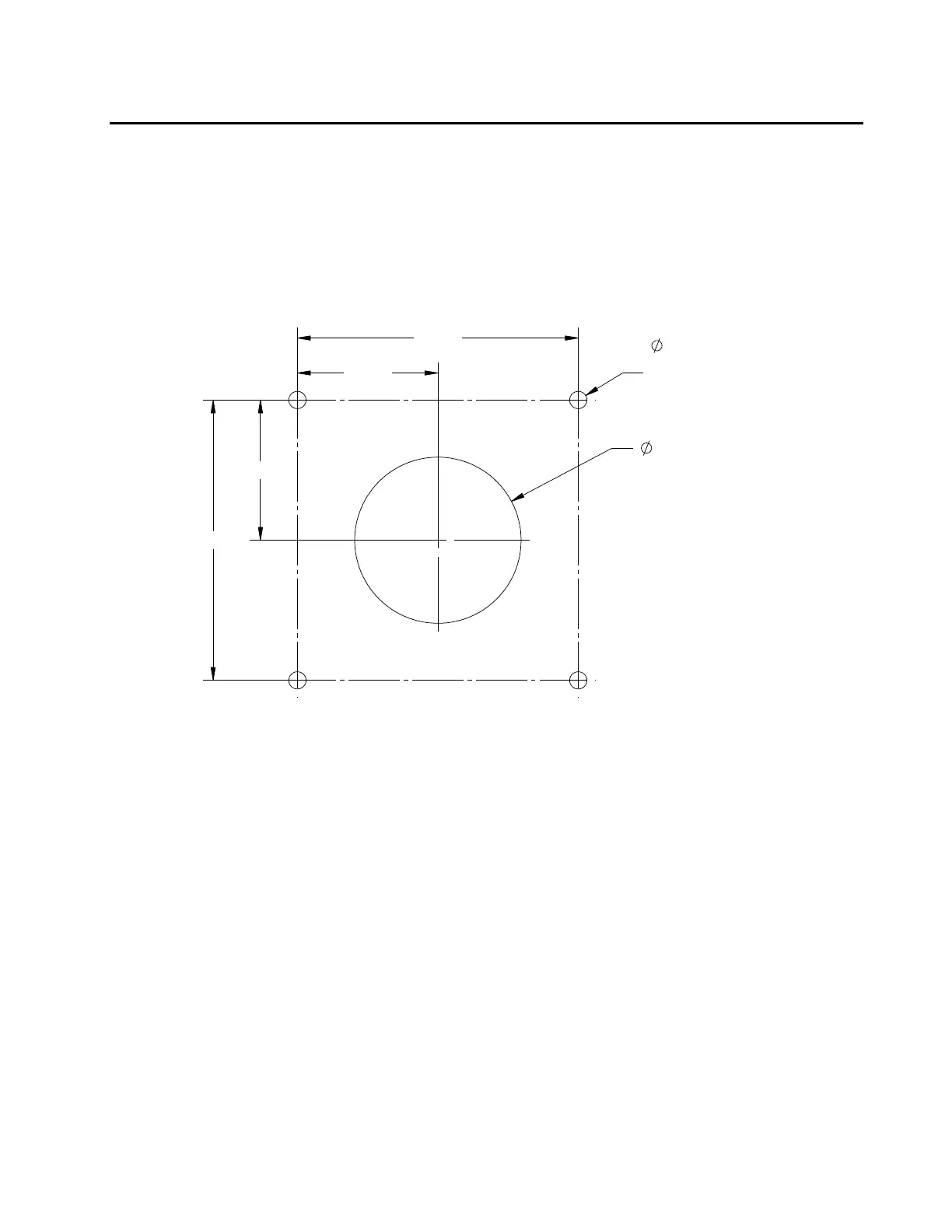

Figure 10 - Command & Control Center Mounting Pattern
