Smart Power Systems
®
A. C. MODULAR GENERATOR SYSTEM
Page 24 of 56
7. Install hoses and tighten hose ends, using the Hose Installation Guidelines. See
Figure 11 for connection locations.

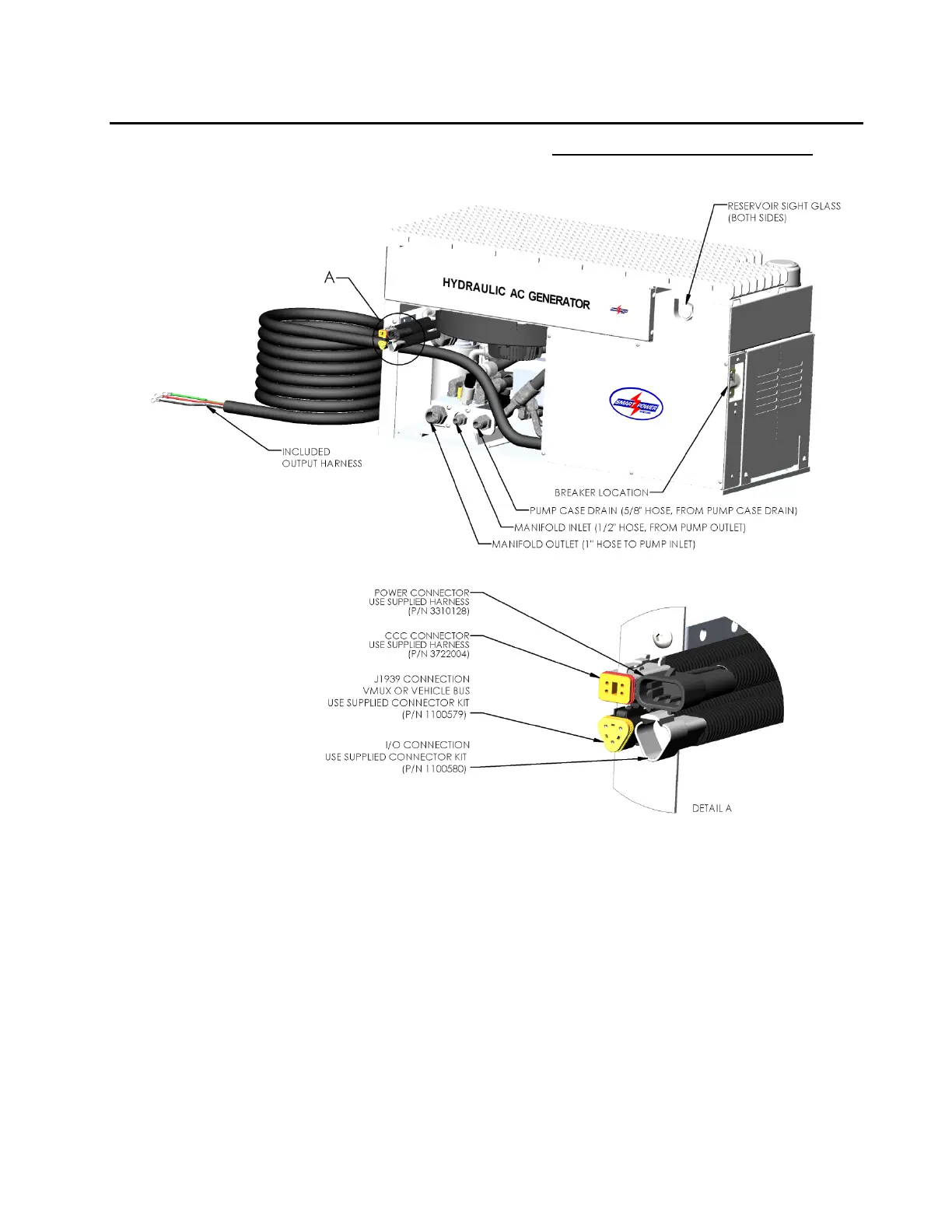

Figure 11 - HR-6.2, HR-8, HR-10 and HR-110 Interfaces
