【Enable】Highlight ■ to enable the Motion Detection function. Corresponding settings can only be
defined after Enable is ticked;
【Sensitivity】
Six settings based on sensitivity level;

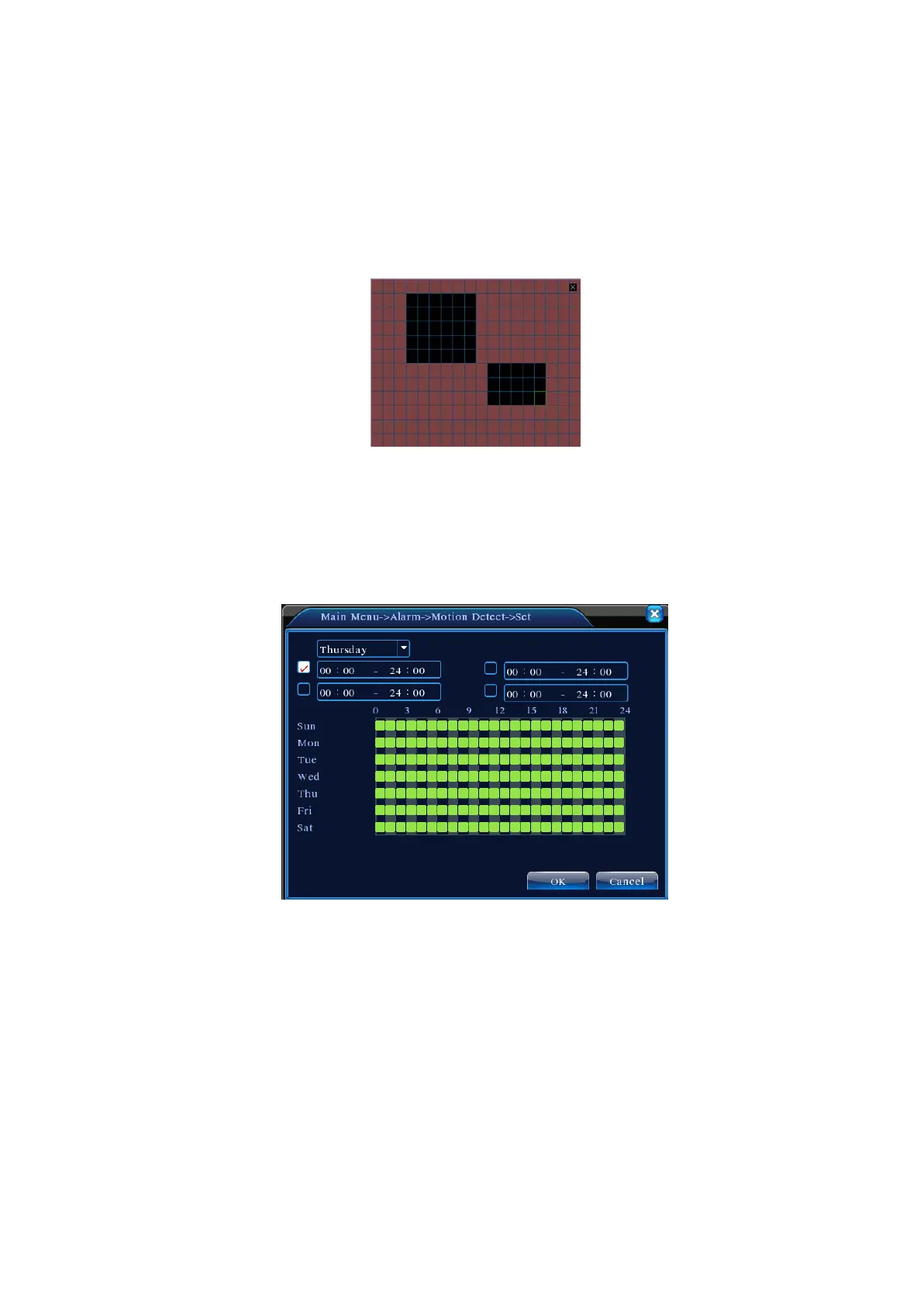

【Region】Click Setting to enter the area which is divided into PAL22X18. Colored areas are the areas
covered by motion detection while dark areas are not covered. Set areas as Figure 4.5. Hold down the
left mouse button to toggle the grid blocks. （All areas default to covered）
Figure 4.5 Set Area
【Arm/Disarm Schedule】
DVR triggers motion detection alarm signal only during the time periods
set up as in Figure 4.6. Recording can be scheduled weekly or in a general calendar. Each day is divided
into four time sections. The time range will take effect only if the checkbox
■ before the time range is
ticked.
Figure 4.6 Time Range Setup
【Time Interval】Within the scheduled time interval, if there are several occurrences, the detection only
triggers alarm in sequence;
【Alarm Output】When motion occurs, the setting will activate corresponding external devices
connected to the alarm output port;
【Delay】Indicate the extended time for which the alarm will continue after the alarm ends, ranging from
10~300 seconds；
【Recording Channel】Select the desired recording channel (Can be ticked). When alarm is triggered,
the system will activate the recording signal on that channel;
Note: To perform corresponding video recording, it requires the settings in 【Record Settings】
to
activate test recording in the defined time periods
