Smartwares DVR524S User Manual

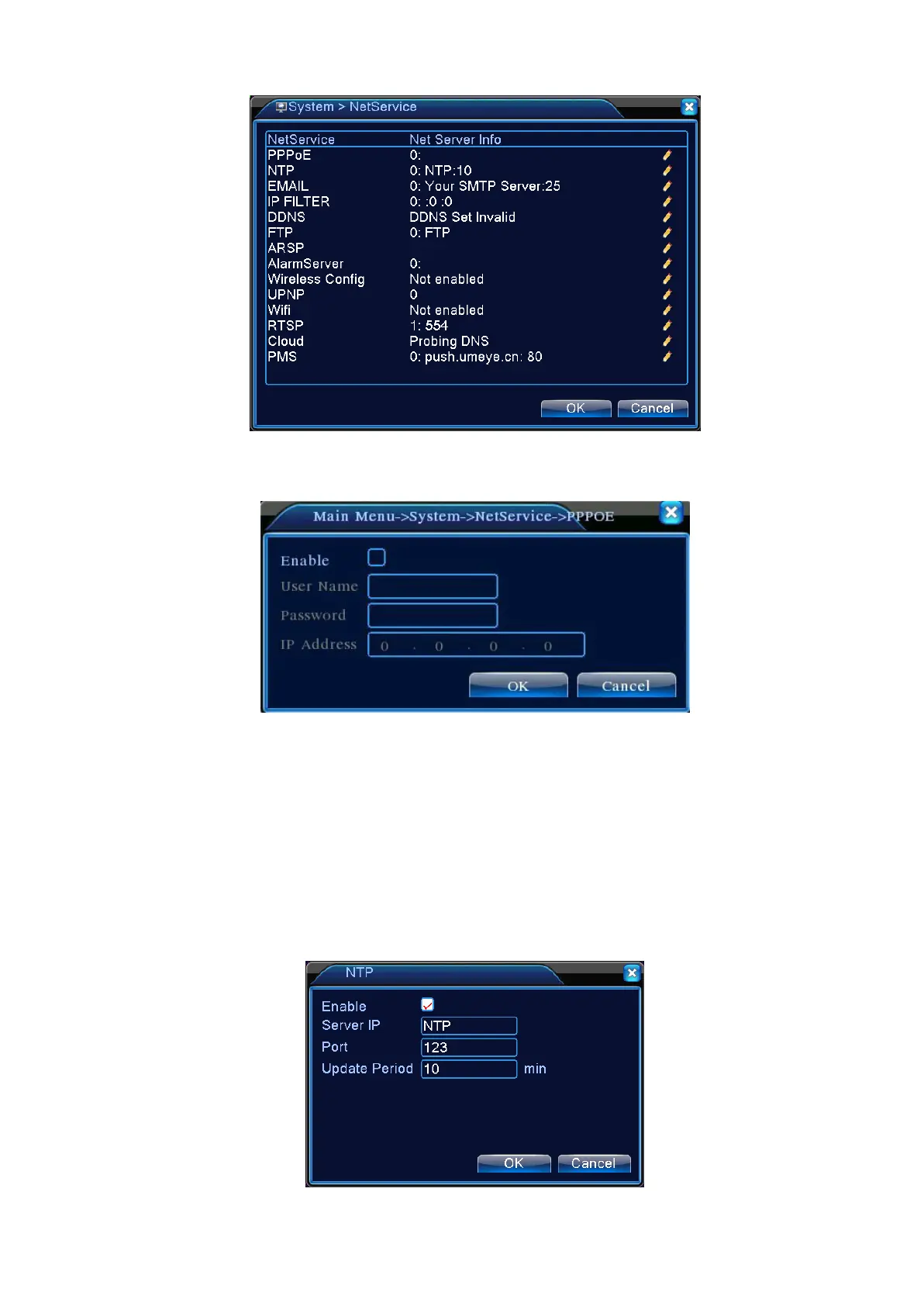

4.16 Network Service
【PPPoE Settings】
Figure 4.17 PPPOE
Enter PPPoE user ID and password provided by ISP（Internet Service Provider）. Save and restart the
system. After restart, DVR will automatically connect the network using PPPoE. Upon successful network
connection, the IP in 【IP Address】 will be changed automatically to the assigned dynamic WAN IP
address.
Operations：After dialling up PPPoE successfully, look up in 【IP Address】 for the current IP address
of the DVR. Use this IP address to access the unit from the user port.
【NTP Settings】
Figure 4.18 NTP Settings
Need to install NTP service on local PC.
Page 40
