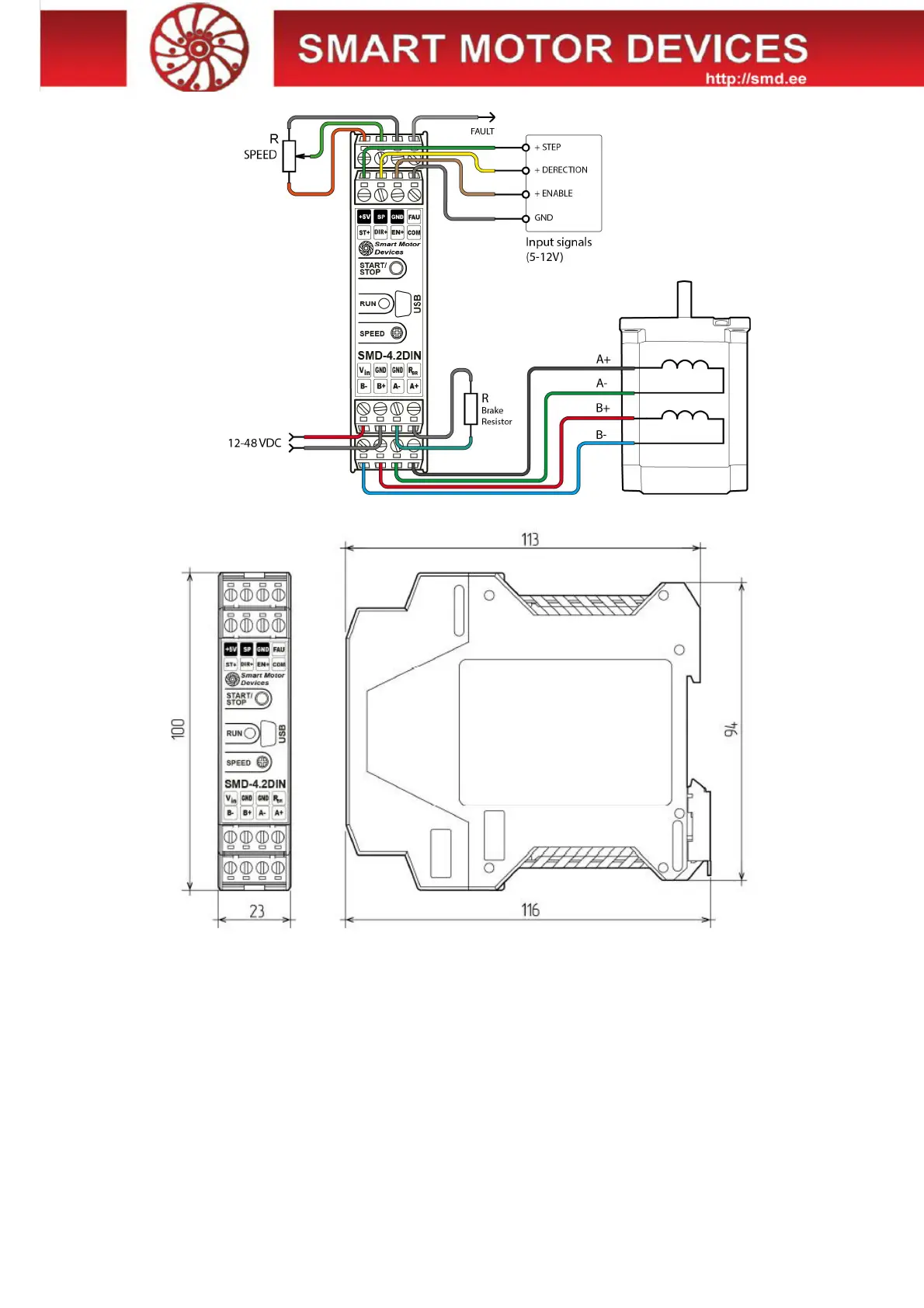

Fig. 1. Terminals of the stepmotor driver SMD-4.2DIN ver.2
Fig. 2. The frame of the stepmotor driver SMD-4.2DIN ver.2
5. Connection
Please follow this manual carefully for connection and assembly.
Please, connect wires only when power is off. Do not attempt to change wiring while the power is ON.
Please, provide a reliable contact in connection terminals. During wiring, please, observe the polarity and wire management.
Connection examples are shown on figures 3-7. Possible connection schemes for motors are given below in the table 2.
