Installation
35
EN

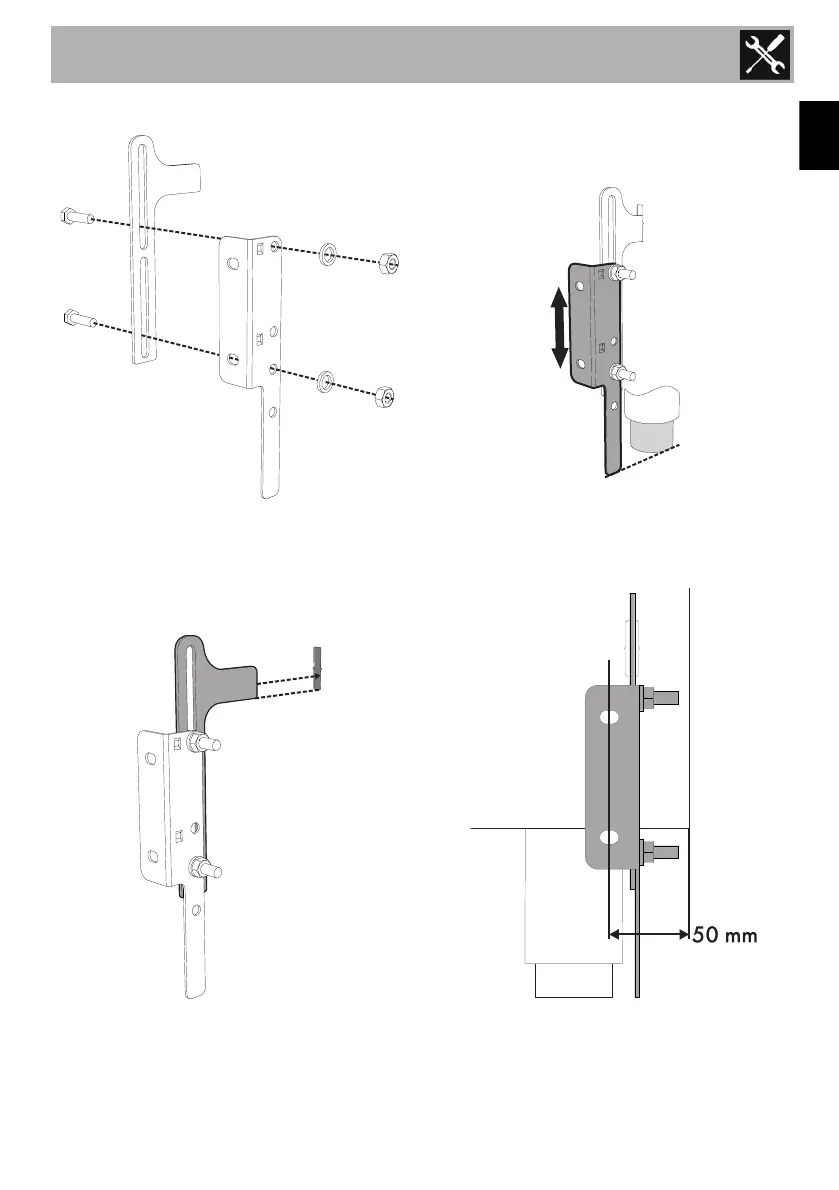

3. Assemble the fastening bracket.
4. Align the base of the hook on the
fastening bracket with the base of the slot
on the wall fastening plate.
5. Align the base of the fastening bracket
with the ground and tighten the screws to
fix the measurements.
6. Use 50 mm for the distance from the side
of the appliance to the bracket holes.
