Instructions for the installer
98
POSSIBLE
CONNECTION TYPES

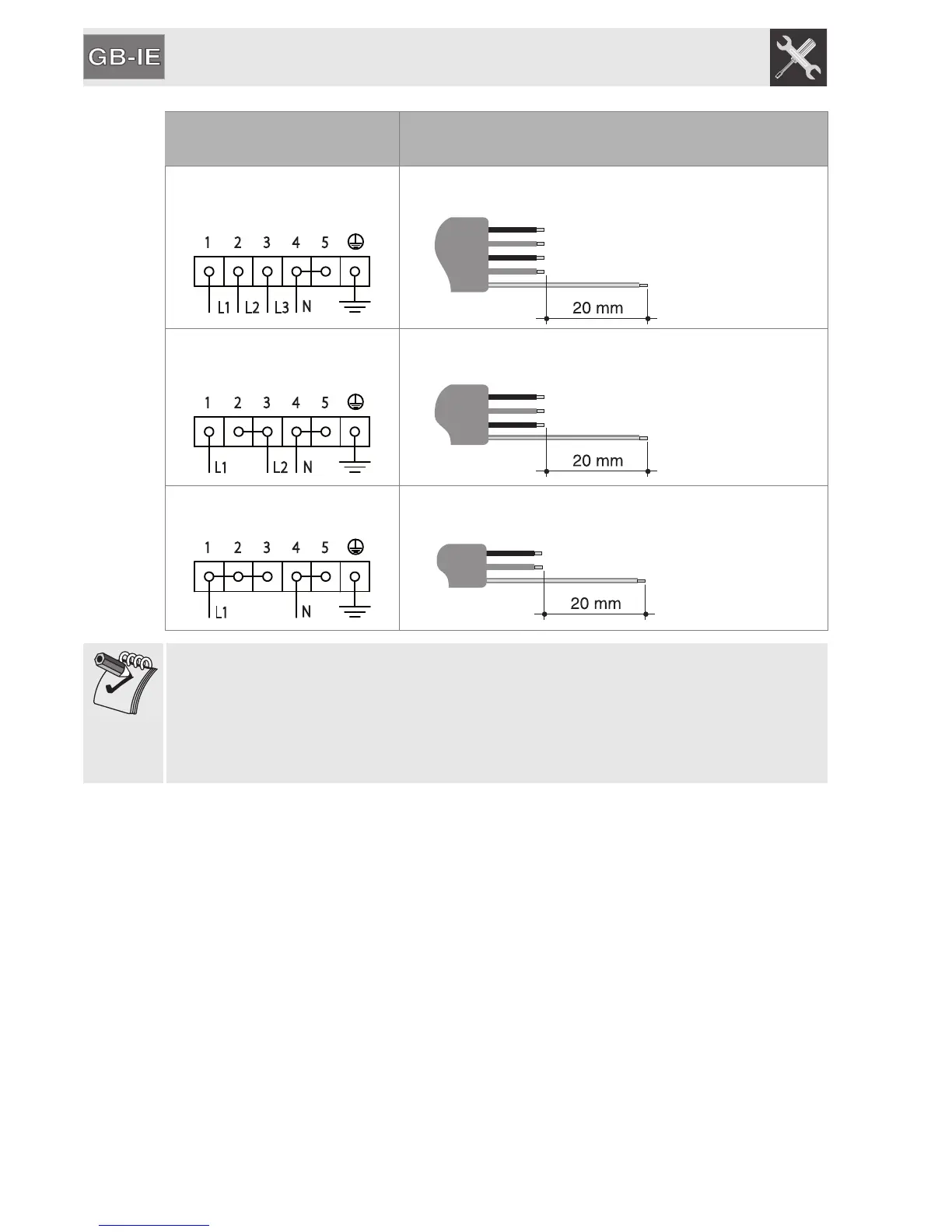

CABLE TYPE
(if not present)
380 - 415 V 3N~ 5-pole 5 x 1.5 mm² H05V2V2-F
380 - 415 V 2N~ 4-pole 4 x 2.5 mm² H05V2V2-F
220 - 240 V 1N~ 3-pole 3 x 4 mm² H05V2V2-F
• Use H05V2V2-F cables withstanding temperatures of 90°C or higher.
• The values indicated above refer to the cross-section of the internal conductor.
• The tightening torque of the screws of the terminal supply wires must be 1.5 - 2
Nm.
The aforementioned power cables are sized taking into account the coincidence
factor (in compliance with standard EN 60335-2-6).
