Smeg DOSC36X User Manual

Instructions for the installer
85
12.INSTALLING THE APPLIANCE
12.1 Electrical connection
The identification plate bearing the technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to earth in compliance with electrical system
safety regulations.
If the appliance is connected to the power supply network by means of a fixed
connection, install a multipolar cut-out device on the power supply line, in
accordance with the installation rules, located near the appliance and in an
easily reachable position.
If a plug and socket connection is being used, make sure that the plug and
socket are compatible. Avoid use of adapters and shunts as these could cause
overheating and risk of burns.
Use H05VV-F type rubber cable and during positioning ensure that there is no
contact with the metallic parts of the external frame of the appliance To access
the terminal block, remove the rear cover of the appliance as described in
paragraph "12.2 Cable replacement". If necessary, change the position of the

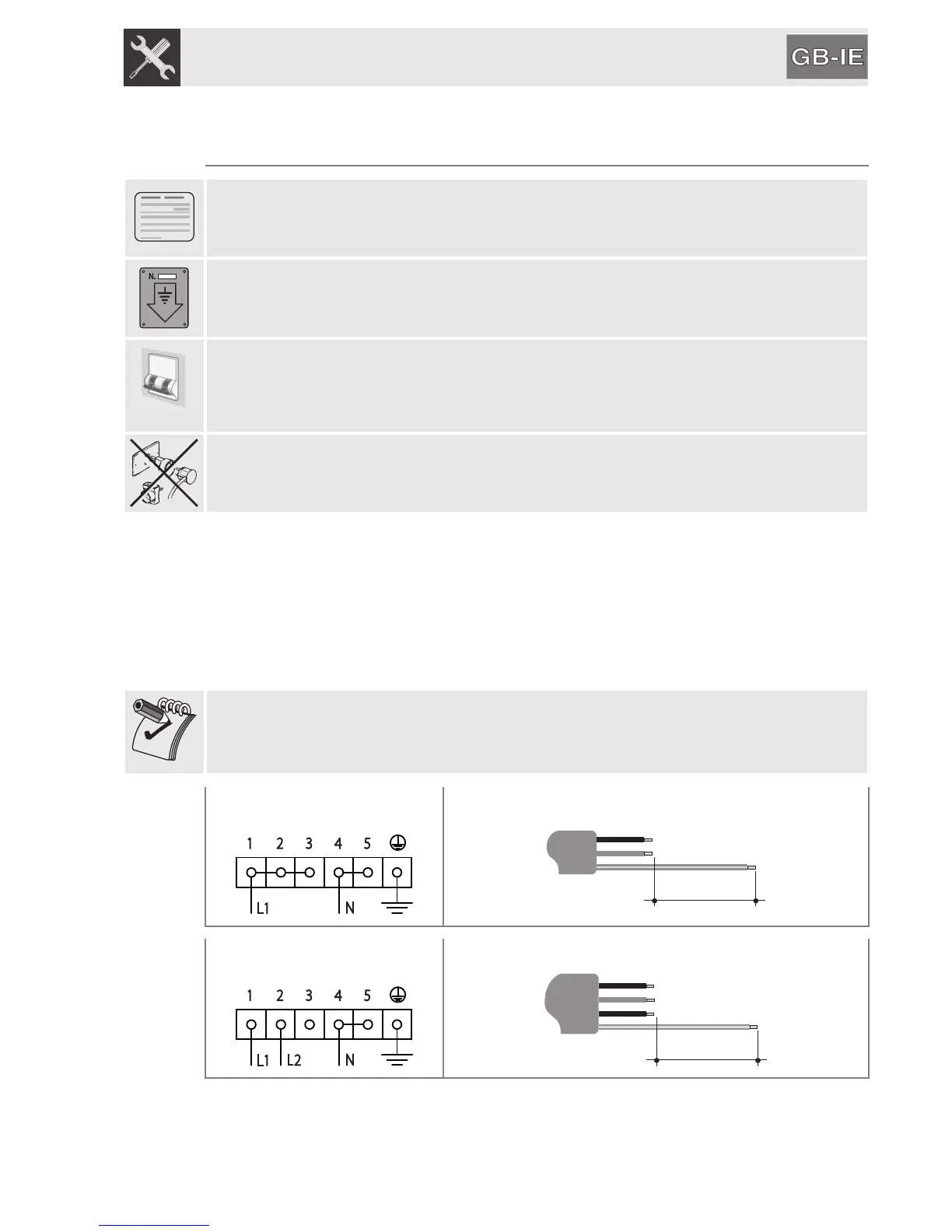

jumpers on the terminal block as shown in the figure, then connect the cables,
ensuring that the earth cable is at least 20 mm longer than the others. Secure
the power cable to the appliance using the included cable ties.
WARNING: The values indicated above refer to the cross-section of the internal
conductor.
220 - 240V ~ Three pole 3 x 4 mm² H05VV-F
380 - 415V 2N~ Four pole 4 x 1.5 mm² H05VV-F
20 mm
20 mm
