A - Evacuation dryer
•
There are two openings for the evacuation of
humid air. One of them should be closed with the
supplied lid, while the other should be connected
to the evacuation tube.
The distance between the dryer and the
moist air outlet (ventilation shaft, window)
should not exceed 2 meters, otherwise
water can accumulate in the tube.
B - Condensation dryer
•
Moisture from laundry is extracted in the water
condensation device and is either collected in the
receptacle or discharged directly into the drain
(drain height should not exceed 800mm).
•
The signal light indicates that the container is
full and should be emptied, preferably after each
drying cycle.

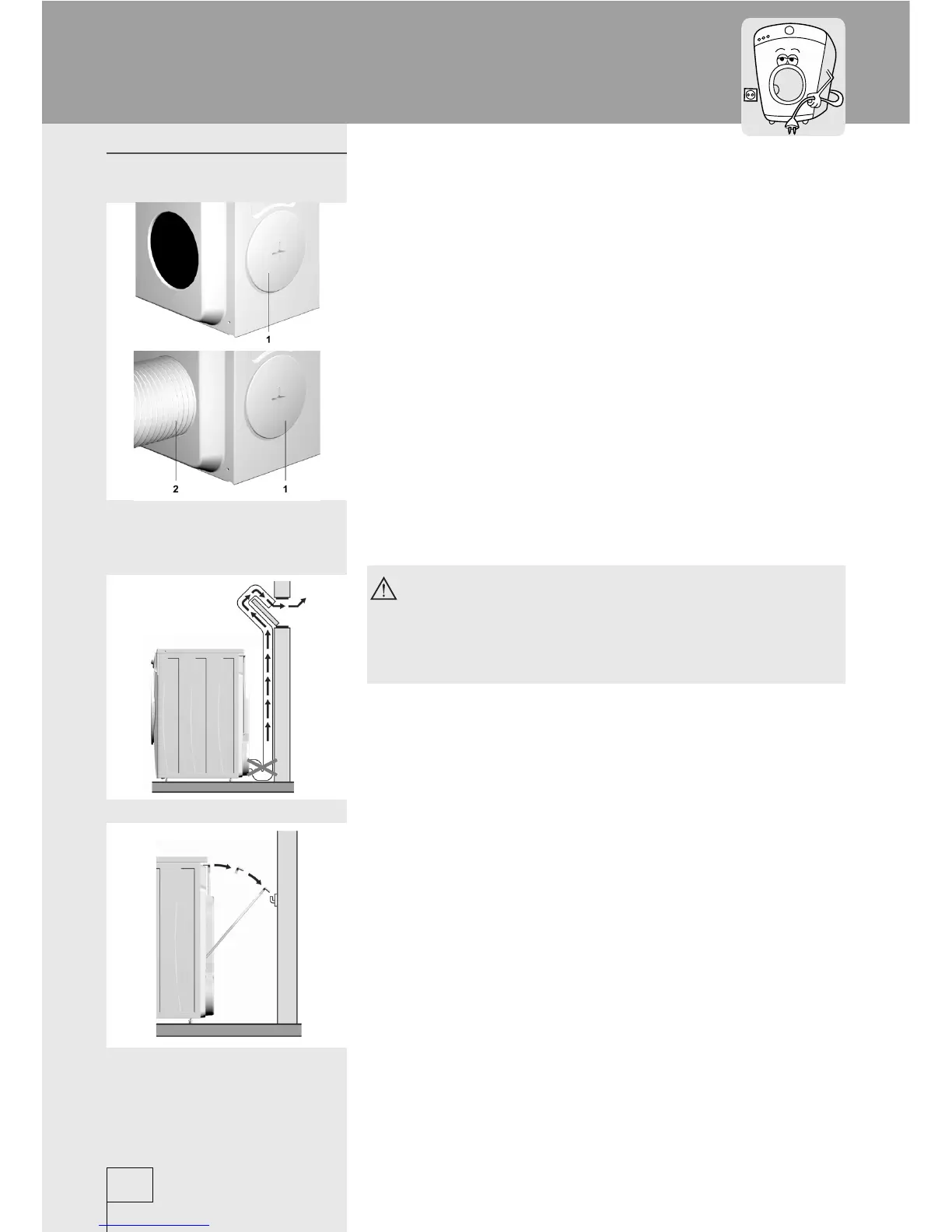

1 Lid
2 Evacuation tube
Moist air outlet
1 Lid
2 Evacuation tube
Moist air outlet
