18. Use the spanner ⓖ to check the dimension. (See Figure 15)

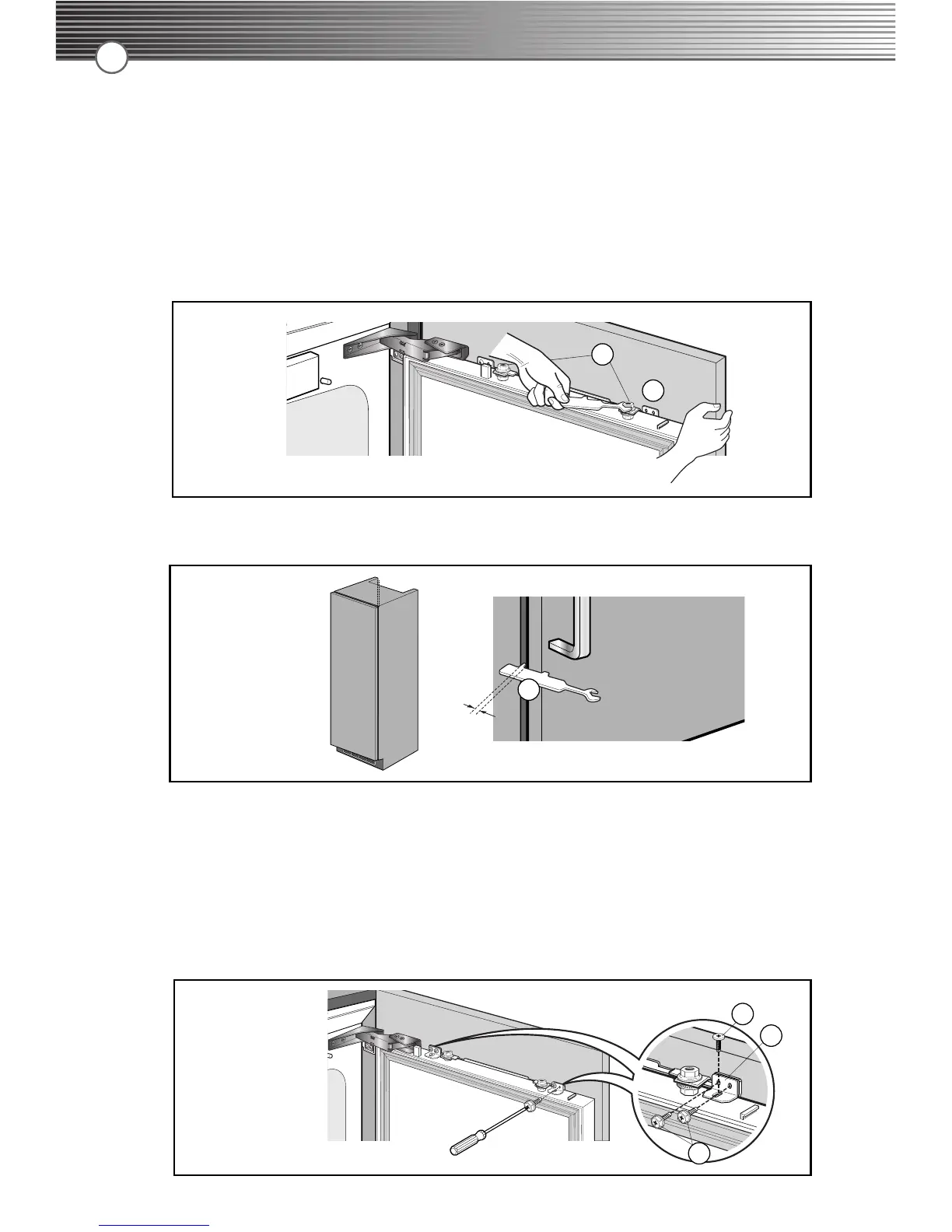

17. Loosely fix the top bracket ⑧ with the height adjusting nuts ⓓ (Figure 13), and adjust the
depth gap between the furniture door and the front of the furniture to 4mm. At this time,
adjust the location of the furniture door for the furniture door not to touch the furniture
when opening/closing the door.
19. If the dimension is not correct, loosen the height adjusting nuts ⓓ, the door screw ⓐ
and the wood screw ⓑ, and repeat the work starting from Step 12.
(Figure 13)
6. Procedure to install
4) Refrigerator door related work
d
8
20. Place the depth adjusting bracket ④ as shown at the figure, fix it with the bracket screw
ⓔ (two spots), and fix with the top bracket screws ⓒ (four spots). (See Figure 15)
Secure the height adjusting nuts ⓓ to fix the top bracket ⑧.
(Figure 15)
c
4
e
