OVERVIEW
HOBD682D - HOBD682R – 4 zone hob with integrated hood
1
1
2
2
1
1
1 Cooking zone
2 Control panel

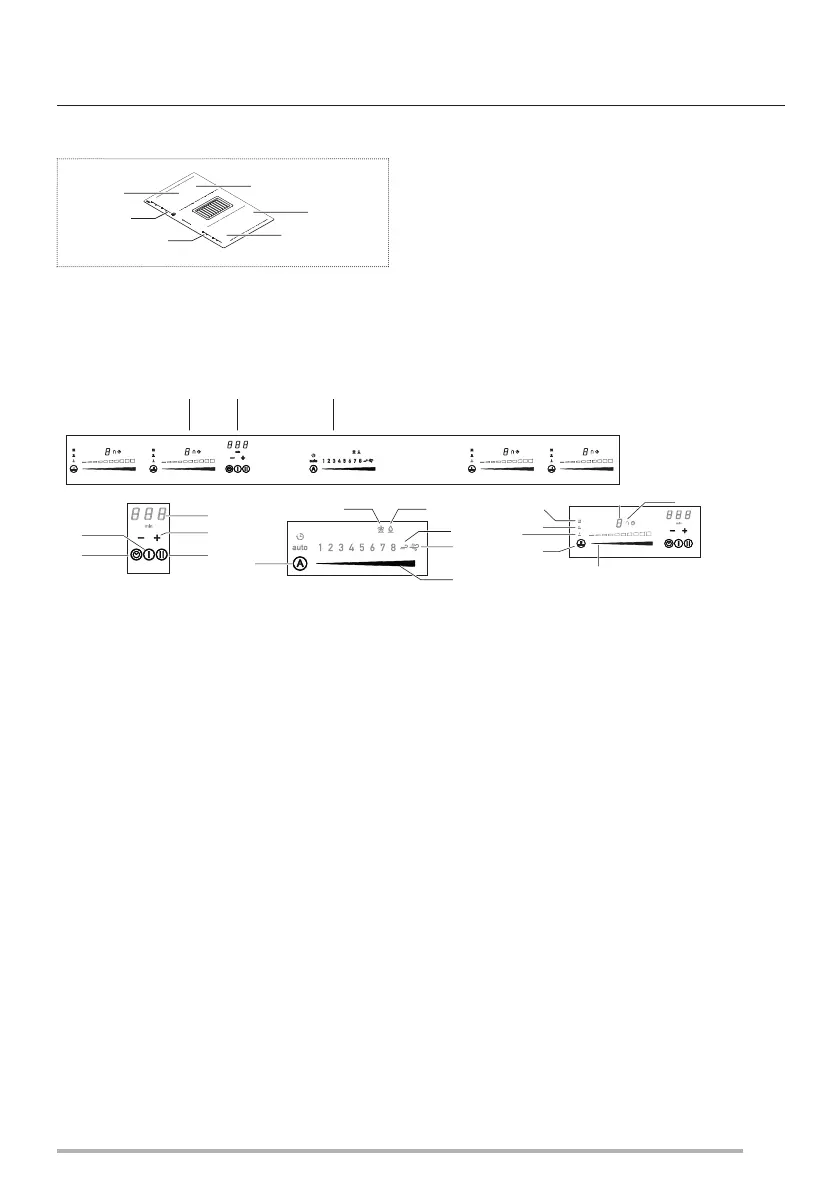

Buttons and display elements
1 2 3
6
85
4
7
13
14
9
12
1110
21
15
16
17
18
19
20
1 Cooking panel controls
2 ON / OFF of the hob / hood control
panel
3 Extractor Fan control panel
4 ON / OFF of the hob / hood
5 Activate Timer
6 Timer Display
7 Increase / Decrease the timer
8 Stop&Go / Recall
9 Automatic mode
10 Charcoal (odour) filter
11 Grease cleaning filter notification
12 Speed INTENSIVE 1
13 Speed INTENSIVE 2
14 Extractor fan selection
15 Cooking / Keep warming at 92 °C
16 Cooking / Keep warming at 74 °C
17 Cooking / Keep warming at 42 °C
18 Temperature Manager
19 Cooking zone selection / power level
20 Cooking zone position indicator
21 Bridge cooking zones
