K181X70
smeg wallmount rangehood, 70cm
ID120310
Code K181X70
WARNING: technical specifications and product sizes can be varied by the manufacturer,
without notice. Cutouts for appliances should only be by physical product measurements.
The above information is indicative only.
NB: drawings are not to scale — they are to assist only
electricity supply
240 volt, 50 Hz
electrical
connection
1.5 metre connected power cord for
plugging to standard 10 amp GPO
wattage
190 watt motor, 2 x 20 watt halogen globes,
230 watts total
current
0.96 amps
packaged
dimensions
810mm x 470mm x 630mm = 0.24m³
gross weight
20.45kg
net weight
17.50 kg
supplied
NB:
• instructions for installation, operation,
maintenance
• one-way buttery valve for optional
tment to air exit aperture
• xing screws
• 150mm/125mm diameter ducting adaptor
• recirculation diverter kit
— direct ducting to atmosphere requires
150mm diameter ducting
— recirculation to kitchen requires 125mm
diameter ducting
option
activated charcoal lter for optional tment
in recirculation installation, part number
08999802
SPEED 1 2 3
net air capacity m
3
/hr
205 310 590
pressure mm H20
12 25 39
input wattage
45 85 190
noise dBA
29 34 50
direct ducting to atmosphere
recirculation to kitchen

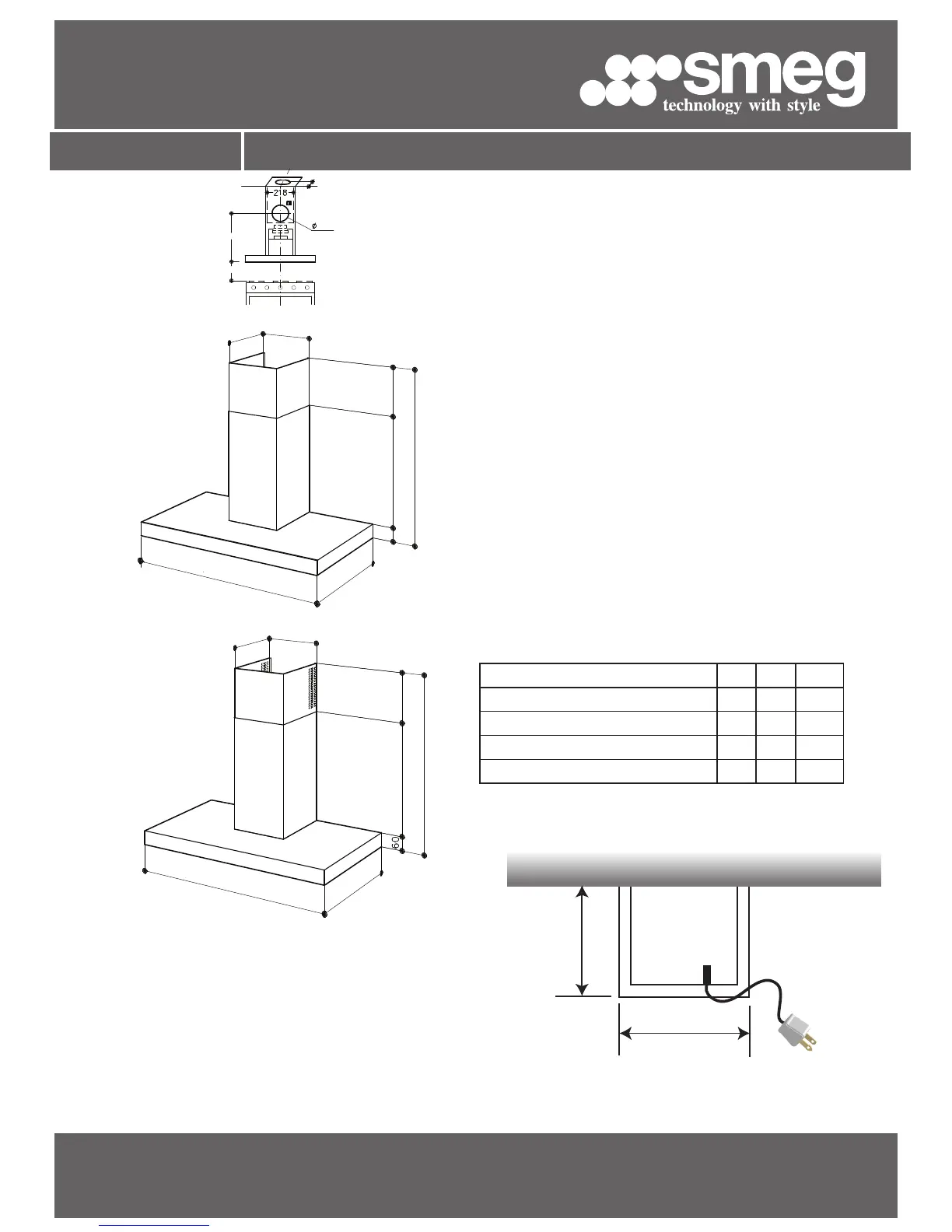

chimney plan detail
PLEASE NOTE the difference in maximum heights between the ‘direct duct to
atmosphere’ installation and the ‘recirculation’ installation. The recirculation
installation’s maximum height is 1190mm due to the active recirculation vents necessarily
being exposed on each side of the chimney. The ‘direct duct to atmosphere’ installation
shows the now redundant recirculation vents being concealed by the lower chimney by
reversing — that is, turning the upper chimney piece 180 degrees on the vertical.
If a higher chimney height is required for the ‘direct duct to atmosphere’ installation, that
is, up to 1190mm, simply follow the ‘recirculation’ installation and have the recirculation
vents exposed, though redundant.
