Smeg K39:2L - Page 2

ID080812
Code K39:2L
WARNING: technical specifications and product sizes can be varied by the manufacturer, without notice.
Cutouts for appliances should only be by physical product measurements. The above information is
indicative only.
K39:2L
smeg wallmount rangehood
273
455
min 853 - max 1268
min 125 max 540
7
165
235
350
500
900
235
148mm
500 350
165
80
180
power cord
1.45m
Ø
controls
105
900
160
165
300
65
holes for
wall fixing
power cord
1.45m
supplied recirculation
kit inset
slots for
supplied
brackets
80
350
340
273
500
power cord
For tall ceilings —
optional two-piece extension flue
(code 2833) for substitution of
supplied two-piece flue: lower
piece 825mm, upper piece
610mm net with recirculation
vents. Maximum chimney height
1435mm.
NB: minimum separation between underside of rangehood
and cooktop heating surface (gas, electric, ceramic): gas
650mm, electric 600mm
packaging 970x630x480mm = 0.294m³
net weight 20.4kg
gross weight 24.5kg
electricity supply 240V, 50Hz
electricity connection 3-pin plug/cord to standard 10 amp
GPO
power cord length 1.45 metres
motor 190W centrifugal
double impellor
double air uptake
maximum current 0.1 amps
air aperture exit 148mm diameter
duct size required 150mm (6”) or 125mm (5”) diameter
duct adaptor 150mm to 125mm diameter
supplied • template
• instructions for installation,
operation and maintenance
• mounting screws & brackets
• duct adaptor (optional use)
• recirculation duct diverter
(optional use)
• one-way butterfly valve fitted to
exit collar (removable)

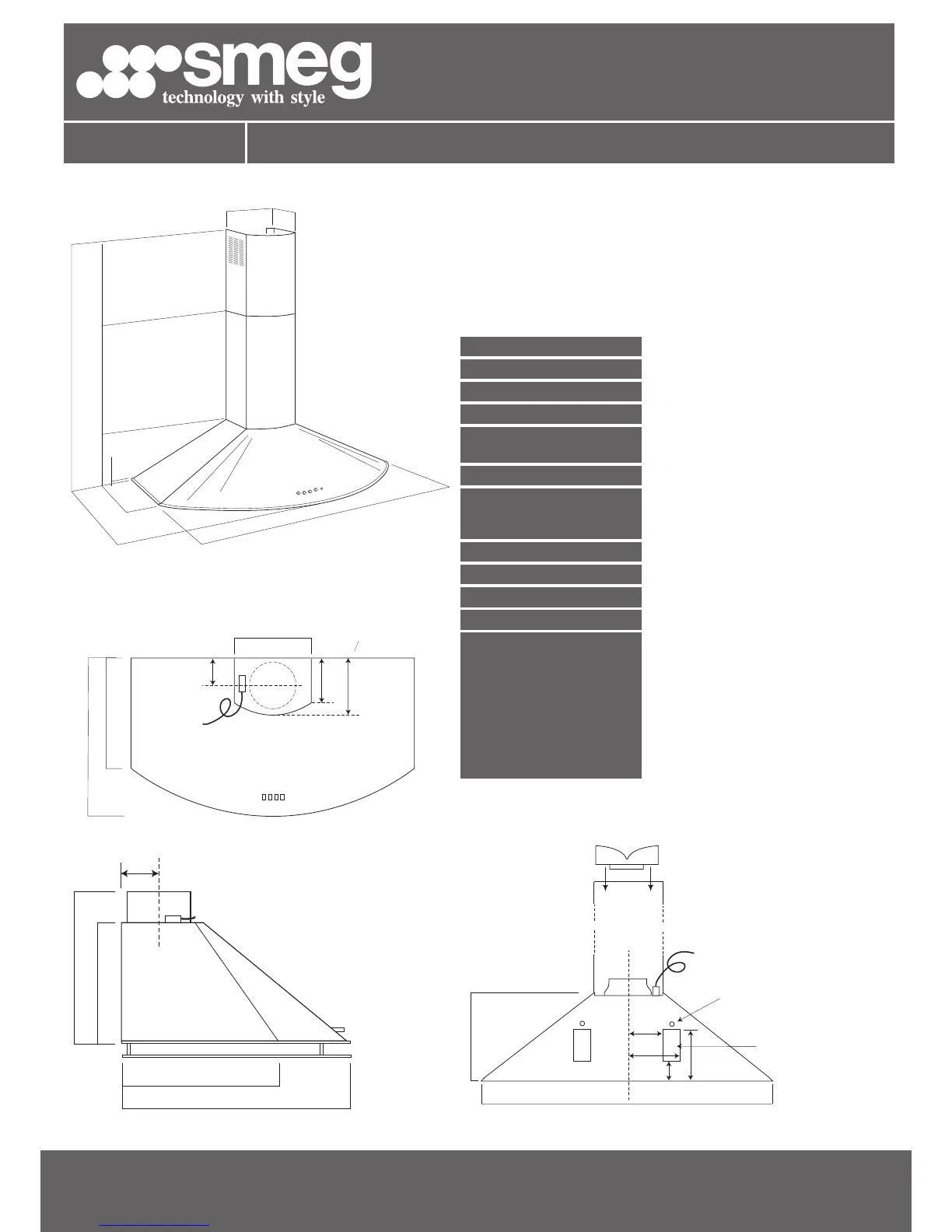

REAR ELEVATIONSIDE ELEVATION
PLAN
NB: DRAWINGS ARE NOT TO SCALE
— THEY ARE TO ASSIST ONLY
