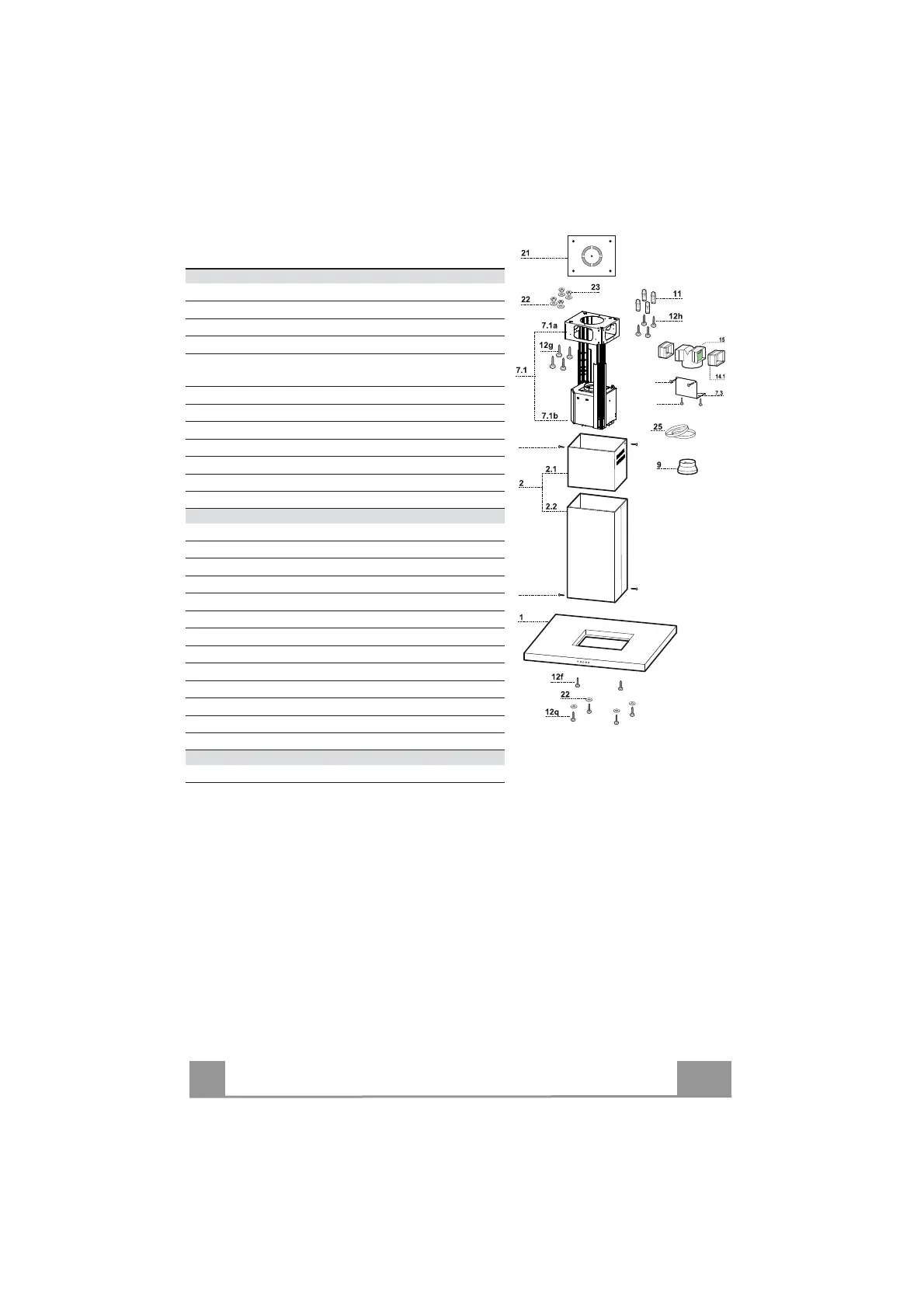

Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Filters
2 1 Telescopic chimney, made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
7.1 1 Telescopic frame complete with Suction fan, made up
of:
7.1a 1 Upper frame
7.1b 1 Lower frame
9 1 Reduction flange ø 150-120 mm
14.1 2 Air Outlet Connector Extension
15 1 Air Outlet Connector
25 Hose clamps (not supplied)
Ref. Q.ty Installation Components
7.3 1 Air Outlet Connector fixing bracket
11 4 Wall plugs ø 10
12c 2 Screws 2.9 x 7.5
12e 4 Screws 2.9 x 12.7
12i 2 Screws 2.9 x 12.7
12f 2 Screws M4 x 13
12g 4 Screws M6 x 80
12h 4 Screws 6 x 70
12q 4 Screws 3.5 x 9.5
21 1 Drilling template
22 8 Washers ø 6.4 – ø 4,5
23 4 Nuts M6
Q.ty Documentation
1 Instruction Manual
12i
12c
12e
12e
