16

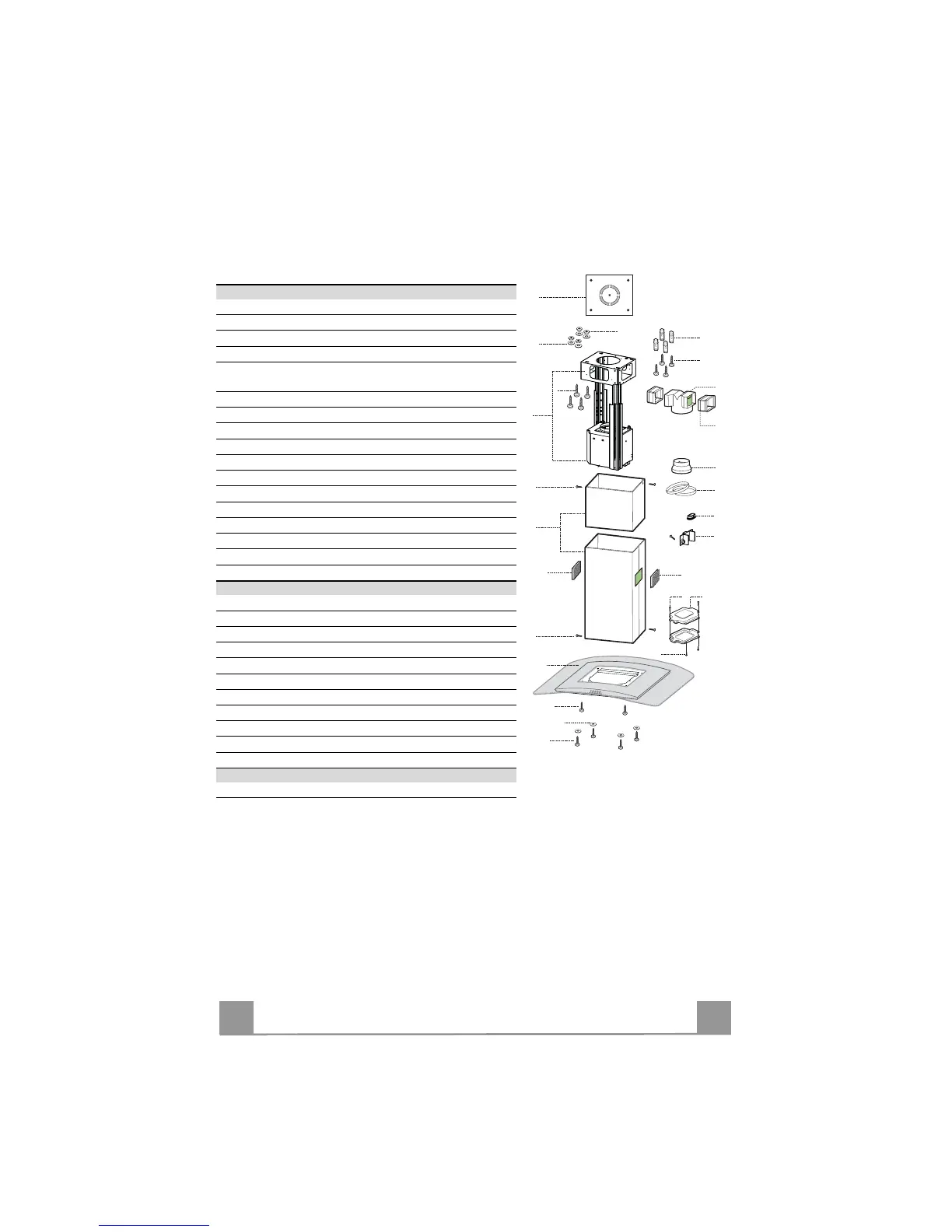

Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Lights, Filters
2 1 Telescopic chimney made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
7.1 1 Telescopic frame complete with Suction fan, made up
of:
7.1a 1 Upper frame
7.1b 1 Lower frame
8a 1 Rh Air Outlet Directional Grille
8b 1 Lh Air Outlet Directional Grille
9 1 Reduction flange ø 150-120 mm
14.1 1 Air Outlet Connector Extension
15 1 Air Outlet Connector
24 1 Connection box
25 Pipe clamps (not included)
26 2 Cable clamps
27 1 Finishing plug
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 6 Screws 2,9 x 6,5
12e 2 Screws 2,9 x 9,5
12f 2 Screws M4 x 80
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
12q 4 Screws 3,5 x 9,5
21 1 Drilling template
22 8 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1 Instruction booklet
12c
7.1a
7.1
22
23
12h
7.1b
2
2.1
2.2
8b
8a
12c
11
21
12g
1
25
24
12e
14.1
15
9
12c
26
27
12f
12q
22
