situationsandtoensuresmoothwaterintake
anddischargeofthemachine,fixtheendof
the discharge hose tightly so that it cannot
come out.

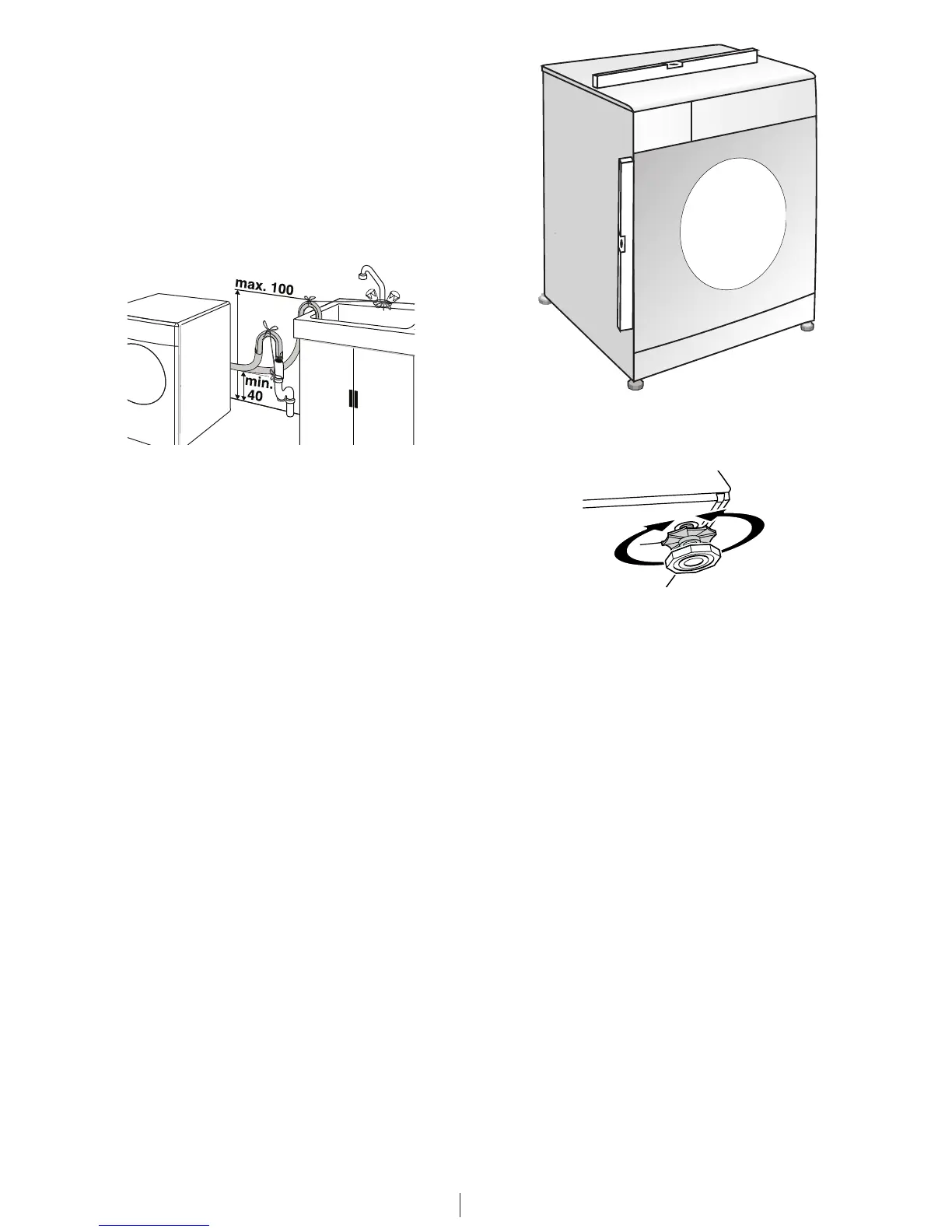

• Thehoseshouldbeattachedtoaheightofat
least40cm,and100cmatmost.
• Incasethehoseiselevatedafterlayingiton
thefloorlevelorclosetotheground(lessthan
40cmabovetheground),waterdischarge
becomesmoredifficultandthelaundrymay
comeoutexcessivelywet.Therefore,follow
theheightsdescribedinthefigure.
• Topreventflowingofdirtywaterbackintothe
machineandtoallowforeasydischarge,do
notimmersethehoseendintothedirtywater
ordriveitinthedrainmorethan15cm.Ifitis
toolong,cutitshort.
• Theendofthehoseshouldnotbebent,it
shouldnotbesteppedonandthehosemust
notbepinchedbetweenthedrainandthe
machine.
• Ifthelengthofthehoseistooshort,useit
byaddinganoriginalextensionhose.Length
ofthehosemaynotbelongerthan3.2m.
Toavoidwaterleakfailures,theconnection
betweentheextensionhoseandthedrain
hoseoftheproductmustbefittedwellwith
anappropriateclampasnottocomeoffand
leak.
Adjusting the feet
A
In order to ensure that the product operates
moresilentandvibration-free,itmuststand
levelandbalancedonitsfeet.Balancethe
machinebyadjustingthefeet.Otherwise,the
productmaymovefromitsplaceandcause
crushingandvibrationproblems.
1. Loosenthelocknutsonthefeetbyhand.
2. Adjustthefeetuntiltheproductstandslevel
andbalanced.
3. Tightenalllocknutsagainbyhand.
A
Do not use any tools to loosen the lock nuts.
Otherwise,theywillgetdamaged.
Electrical connection
Connect the product to a grounded outlet
protectedbyafusecomplyingwiththevaluesin
the"Technicalspecifications"table.Ourcompany
shallnotbeliableforanydamagesthatwillarise
whentheproductisusedwithoutgroundingin
accordancewiththelocalregulations.
• Connectionmustcomplywithnational
regulations.
• Powercableplugmustbewithineasyreach
afterinstallation.
• Thevoltageandallowedfuseorbreaker
protectionarespecifiedinthe“Technical
specifications”section.Ifthecurrentvalueof
thefuseorbreakerinthehouseislessthan
16Amps,haveaqualifiedelectricianinstalla
16Ampfuse.
• Thespecifiedvoltagemustbeequaltoyour
mains voltage.
• Donotmakeconnectionsviaextension
cablesormulti-plugs.
B
 Damagedpowercablesmustbereplacedby
theAuthorizedServiceAgents.
First use
Beforestartingtousetheproduct,makesure
that all preparations are made in accordance
withtheinstructionsinsections"Importantsafety
instructions"and"Installation".
