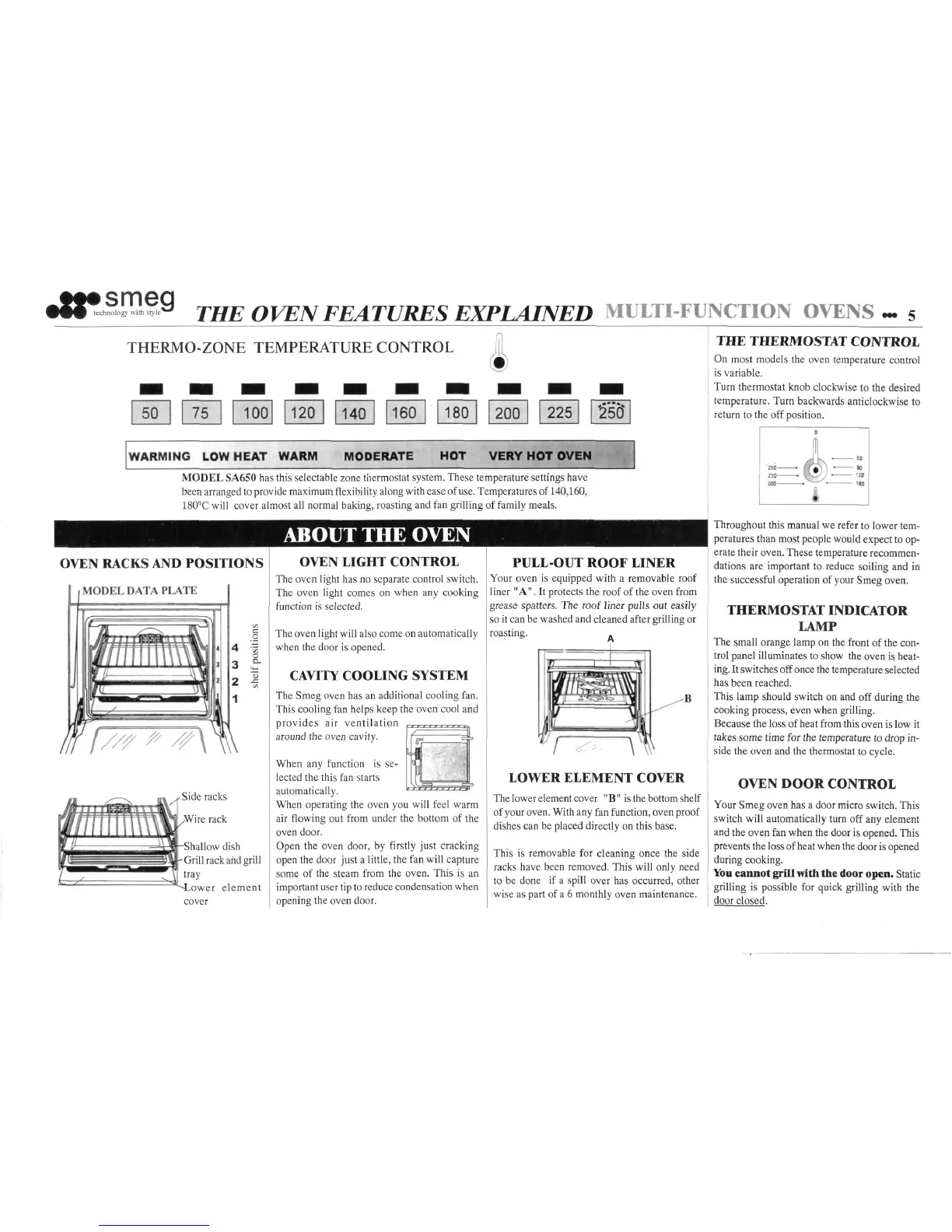

§oE£9 THE OVEN FEATURES EXPLAINED MULTI-FUNCTION OVENS
THERMO-ZONE TEMPERATURE CONTROL
50 75
100
120 140 160
180
200 225
2*55
WARMING LOW HEAT WARM MODERATE HOT VERY HOT OVEN
MODEL SA650 has this selectable zone thermostat system. These temperature settings have
been arranged to provide maximum flexibility along with ease of
use.
Temperatures of 140,160,
180°C will cover almost all normal baking, roasting and fan grilling of family meals.
OVEN RACKS AND POSITIONS
MODEL DATA PLATE
Side racks
•Wire rack
Shallow dish
Grill rack and grill
tray
SLower element
cover
ABOUT THE OVEN
OVEN LIGHT CONTROL
The oven light has no separate control switch.
The oven light comes on when any cooking
function is selected.
The oven light will also come on automatically
when the door is opened.
CAVITY COOLING SYSTEM
The Smeg oven has an additional cooling fan.
This cooling fan helps keep the oven cool and
provides air ventilation
around the oven cavity.
When any function is se-
lected the this fan starts
automatically.
When operating the oven you will feel warm
air flowing out from under the bottom of the
oven door.
Open the oven door, by firstly just cracking
open the door just a little, the fan will capture
some of the steam from the oven. This is an
important user
tip
to reduce condensation when
opening the oven door.
PULL-OUT ROOF LINER
Your oven is equipped with a removable roof
liner "A". It protects the roof of the oven from
grease spatters. The roof liner pulls out easily
so it can be washed and cleaned after grilling or
roasting.
LOWER ELEMENT COVER
The lower element cover "
B"
is the
bottom shelf
of your
oven.
With any fan function, oven proof
dishes can be placed directly on this base.
This is removable for cleaning once the side
racks have been removed. This will only need
to be done if a spill over has occurred, other
wise as part of a 6 monthly oven maintenance.
THE THERMOSTAT CONTROL
On most models the oven temperature control
is variable.
Turn thermostat knob clockwise to the desired
temperature. Turn backwards anticlockwise to
return to the off position.
Throughout this manual we refer to lower tem-
peratures than most people would expect to op-
erate their oven. These temperature recommen-
dations are important to reduce soiling and in
the successful operation of your Smeg oven.
THERMOSTAT INDICATOR
LAMP
The small orange lamp on the front of the con-
trol panel illuminates to show the oven is heat-
ing.
It switches off
once
the temperature selected
has been reached.
This lamp should switch on and off during the
cooking process, even when grilling.
Because the loss of heat from this oven is low it
takes some time for the temperature to drop in-
side the oven and the thermostat to cycle.
OVEN DOOR CONTROL
Your Smeg oven has a door micro switch. This
switch will automatically turn off any element
and the oven fan when the door is opened. This
prevents the loss of heat when the door
is
opened
during cooking.
You cannot grill with the door open. Static
grilling is possible for quick grilling with the
door closed.
