Smeg RF376RSIX - Page 50

16
899
749
599
897 (35 1/4”)
-
747 (29 3/8”) -
597 (23 3/4”) 327 (12 7/8”)
B
115 (4 )
min 130 (5 )
135
(5 )
135
(5 )
1075 (42 )
2050 (80 )
min 540 (21 )
max 635 (25”)
187 (7 )
A
3 ()
1320 (52”)
Examples of calculation
Integration in a kitchen column of total height 2160 mm (85”) and 150 mm (6”) kickplate.
(NOTE: In calculating the adjustment foot is considered to 0).
Drawer Calculation:
Kickplate 187 - 150 = 37 mm (1 1/2”)
540 + 37 = 577 mm (22 3/4”)
Upper Panel Calculation:
2160 - 2050 = 110 mm (4 3/8”)
1320 + 110 = 1430 mm (56 1/4”)
Total Height Calculation:
150 + 577 + 3 + 1430 = 2160 mm (85”)

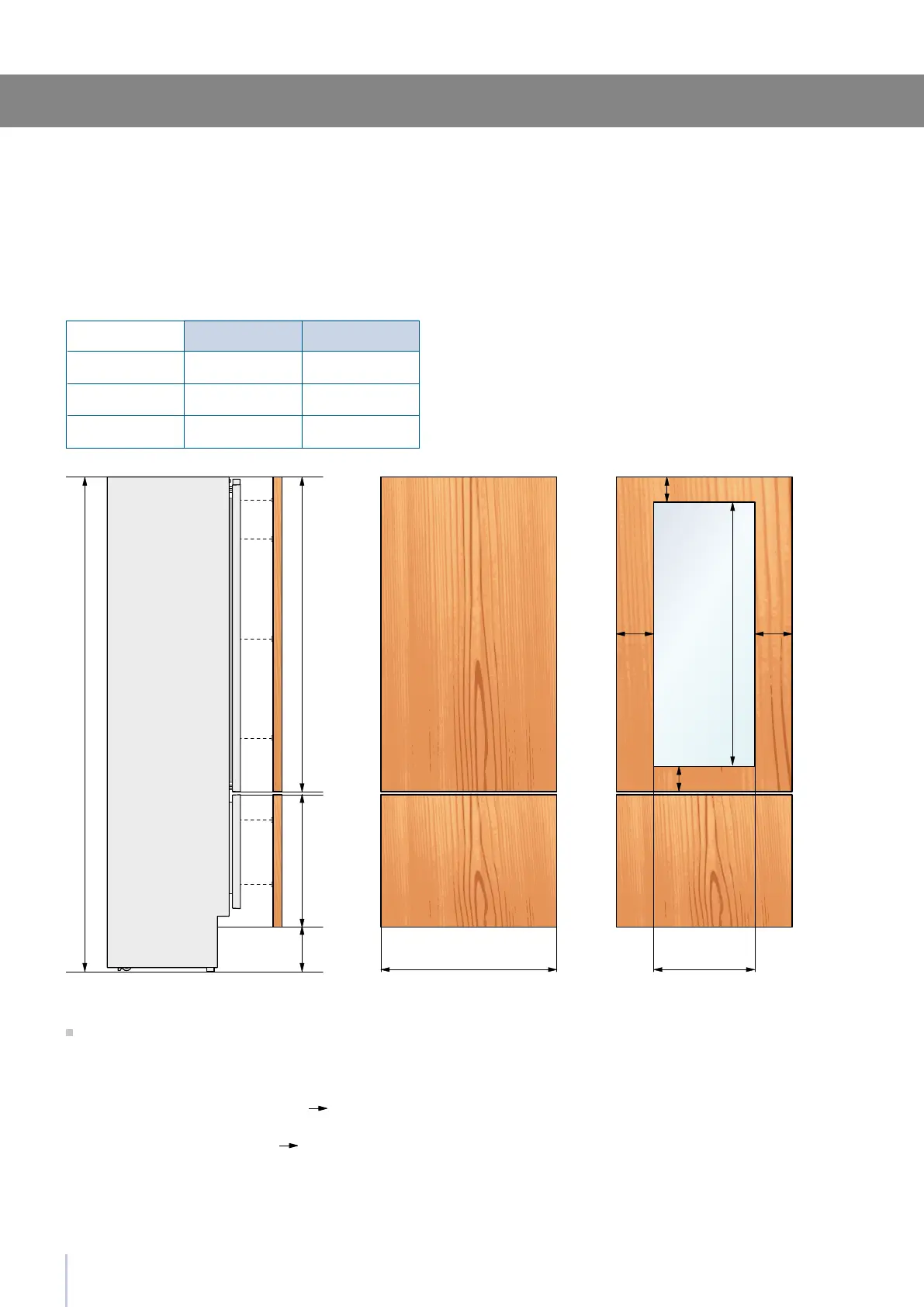

Panels Dimensions One Bottom - Drawer
Door/Drawer Width A
Series
Door Cutout Width B
Series: Integrated
Panels with width ranging between 18 mm (3/4 in) and 28 mm (1 1/8 in).
Door panels with weight max of 23 kg (51 lb) and drawer panels with weight max of 11kg (25 lb)
