4.

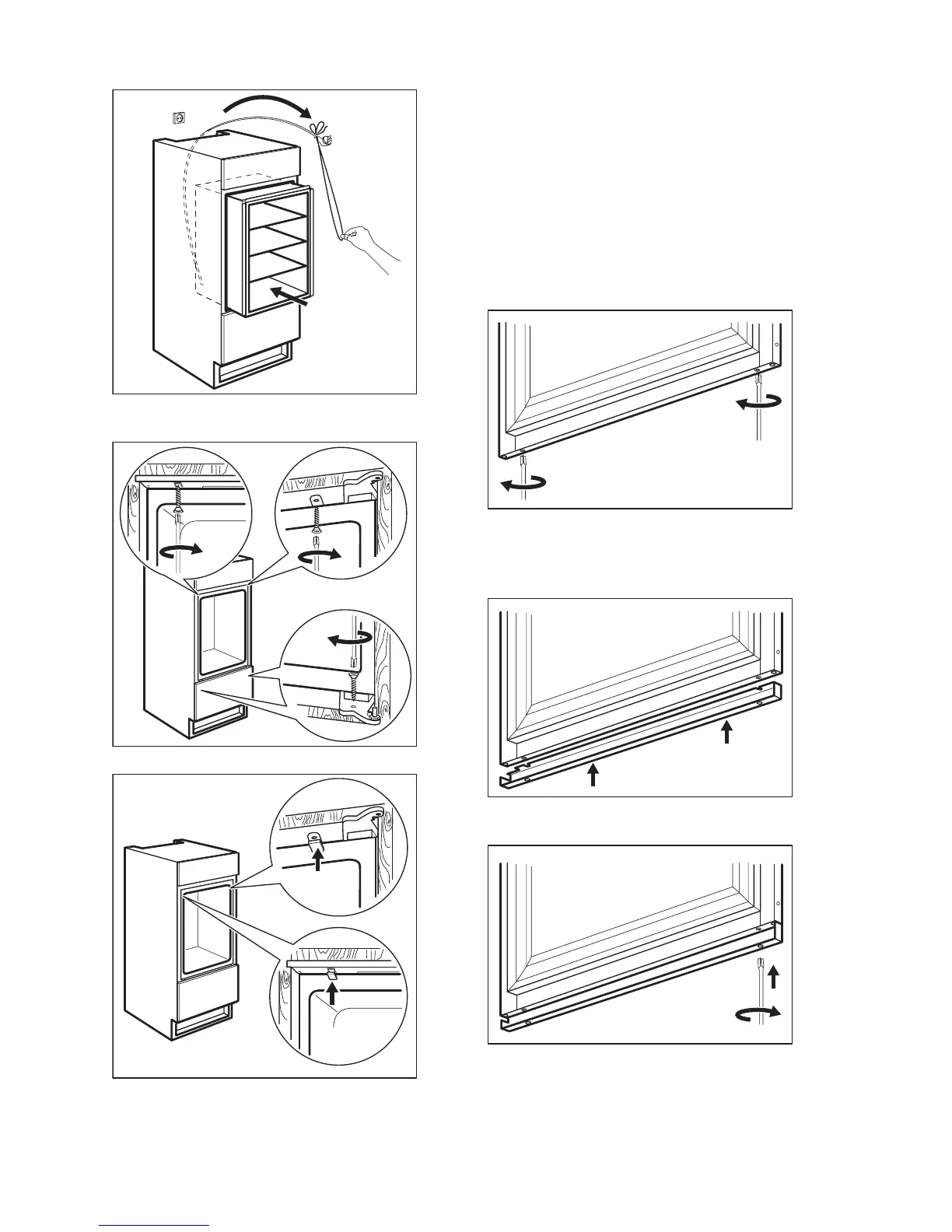

Attach the appliance to the niche with 4
screws.
5. Fix the covers on the screws.
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to the
cabinet.
• The door opens and closes correctly.
Assembly instructions for the
compensator lower part of the
door
1. With the door open, loosen the two
screws situated in the lower part
without unscrewing them completely.
2.
Position the steel compensator as
indicated in the figure and insert the
upper part under the head of the
screws.
3. Align the compensator with the steel
door panel and tighten the screws.
4. Insert the steel carter inside the
compensator as indicated in the figure.
29
