Smeg SA384X - Features Diagram

6
11
Door latch - When the door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, the magnetron will
automatically shut off.
22
Door seal - The door seal surfaces prevent
microwaves escaping from the oven cavity.
33
Oven cavity
44
Control panel
55
Coupler - This fits over the shaft in the center
of the oven cavity floor.
This is to remain in the oven for all cooking.
66
Roller guide - This must always be used for
cooking together with the metal cooking tray.
77
Metal tray - The tray must always be in proper
position before operating. Do not cook food
directly on the tray.
88
Waveguide cover - Protects the microwave
outlet from splashes of cooking foods.
99
Safety interlock system - Prevents the oven
from operating while the door is opened. The
oven will only operate with the door fully
closed. When the door is open, the oven turns
off and will only start again after the door is
closed.
00
Oven lamp - Automatically turns on during
oven operating.

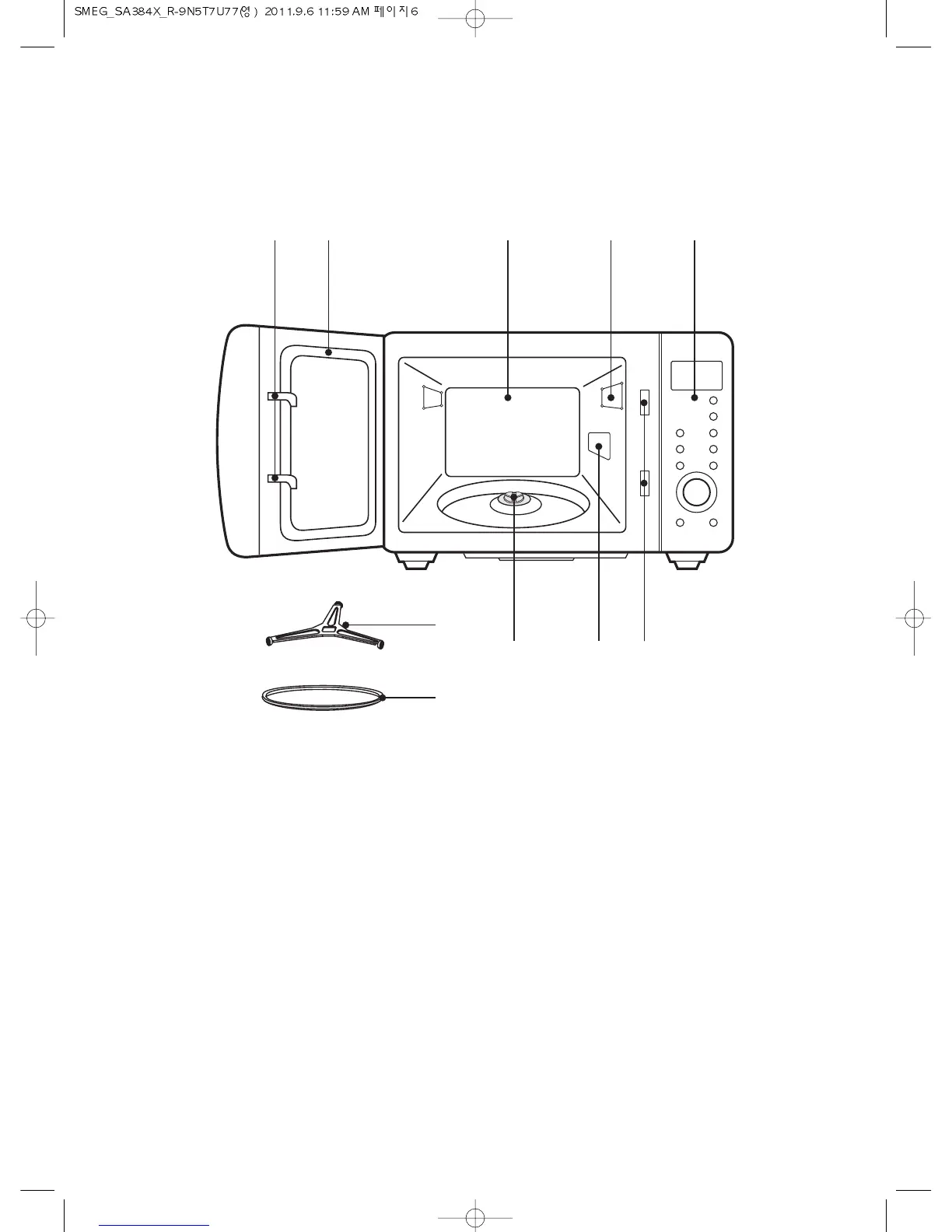

FEATURES DIAGRAM
1 2 3
95 8
40
7
6
