4.3 Operating the product

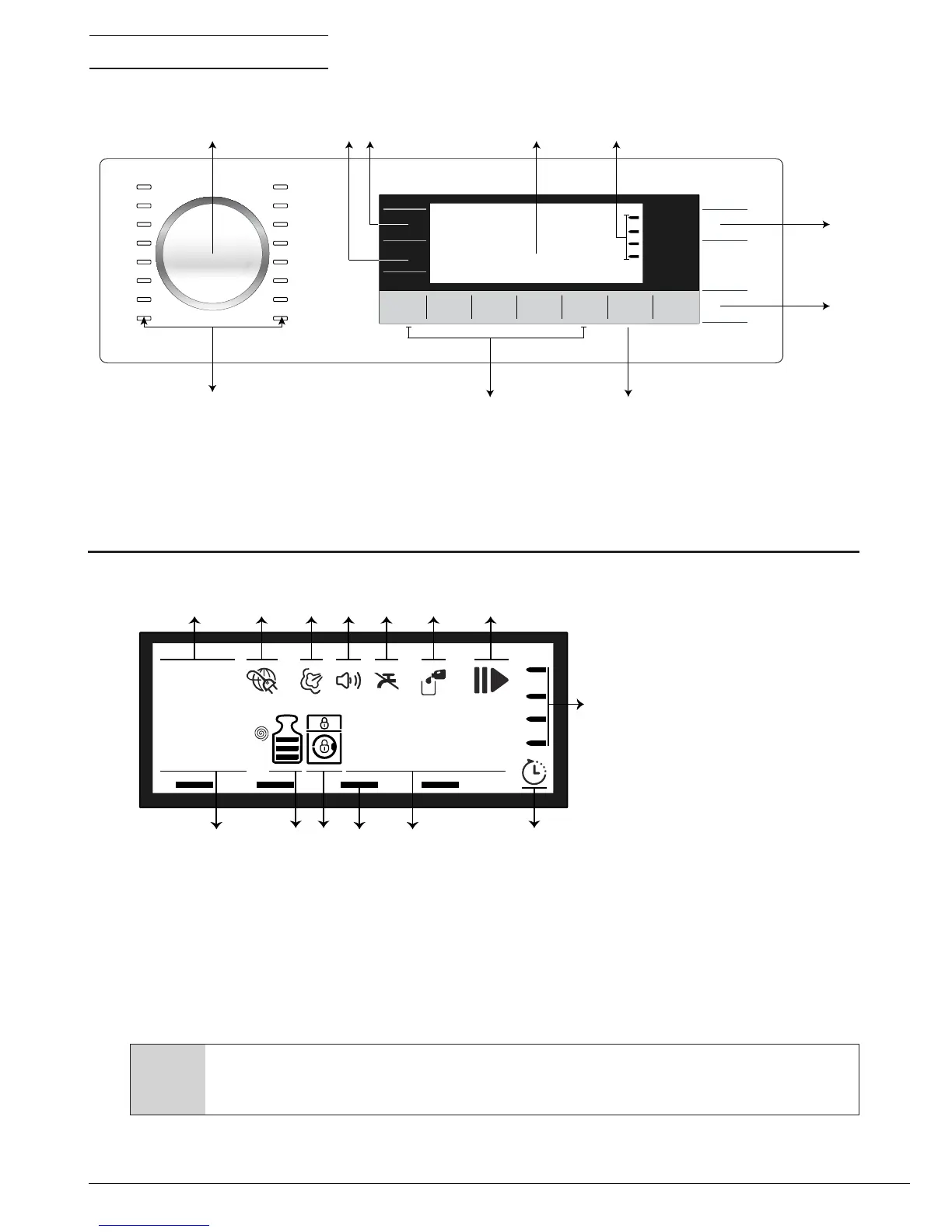

4.3.1 Control panel
1 - Programme Selection knob
2 - Spin speed adjustment button
3 - Temperature Adjustment button
4 - Display
5 - Program Follow-up indicator
6 - On / Off button
7 - Start / Pause button
8 - End Time Setting button
9 - Auxiliary Function buttons
10-ProgrammeSelectionLEDs
1 2 3 4 5
6
7
8910
4.3.2 Display symbols
1888
88:88
88
C
0
a b c d e f g
h
ijkl
mn
a - Temperature indicator
b - Electrical connection
c - Steam indicator
d - Audio Warning indicator
e - No Water indicator
f - Detergent indicator
g - Start / Pause indicator
h - Program Follow-up indicator
i - End Time indicator
j - DurationInformationLine
k - Auxiliary Function indicators
l - Lockindicator
m - Loadlevelindicator
n - Spin Speed indicator
C
The visuals used for machine description in this section are schematic and may not match exactly will the features of your
