Cleaning and maintenance
44

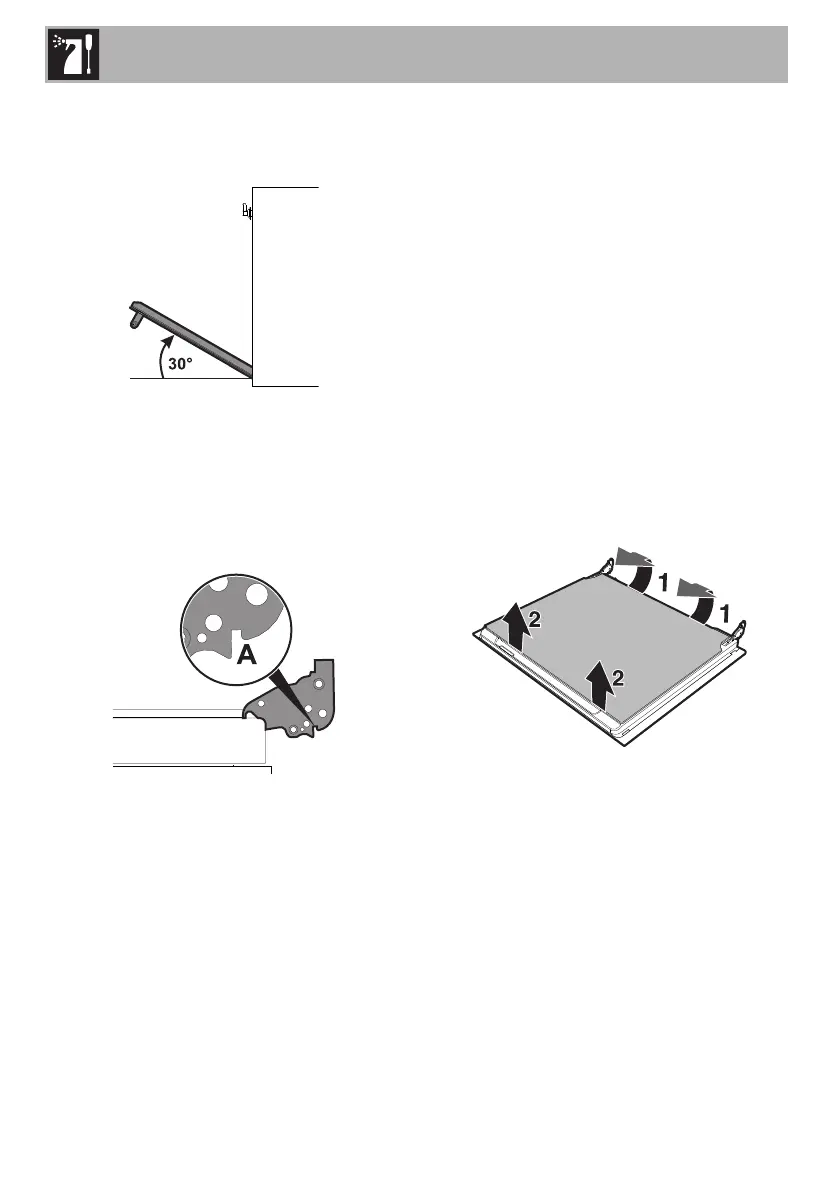

2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges in
the relevant slots in the oven, making sure
that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
4.4 Cleaning the door glazing
The glass in the door should always be kept
thoroughly clean. Use absorbent kitchen
roll. In case of stubborn dirt, wash with a
damp sponge and an ordinary detergent.
Removing the internal glass panes
For easier cleaning the internal glass panes
of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
