78 - INSTALLATION 914779617/C

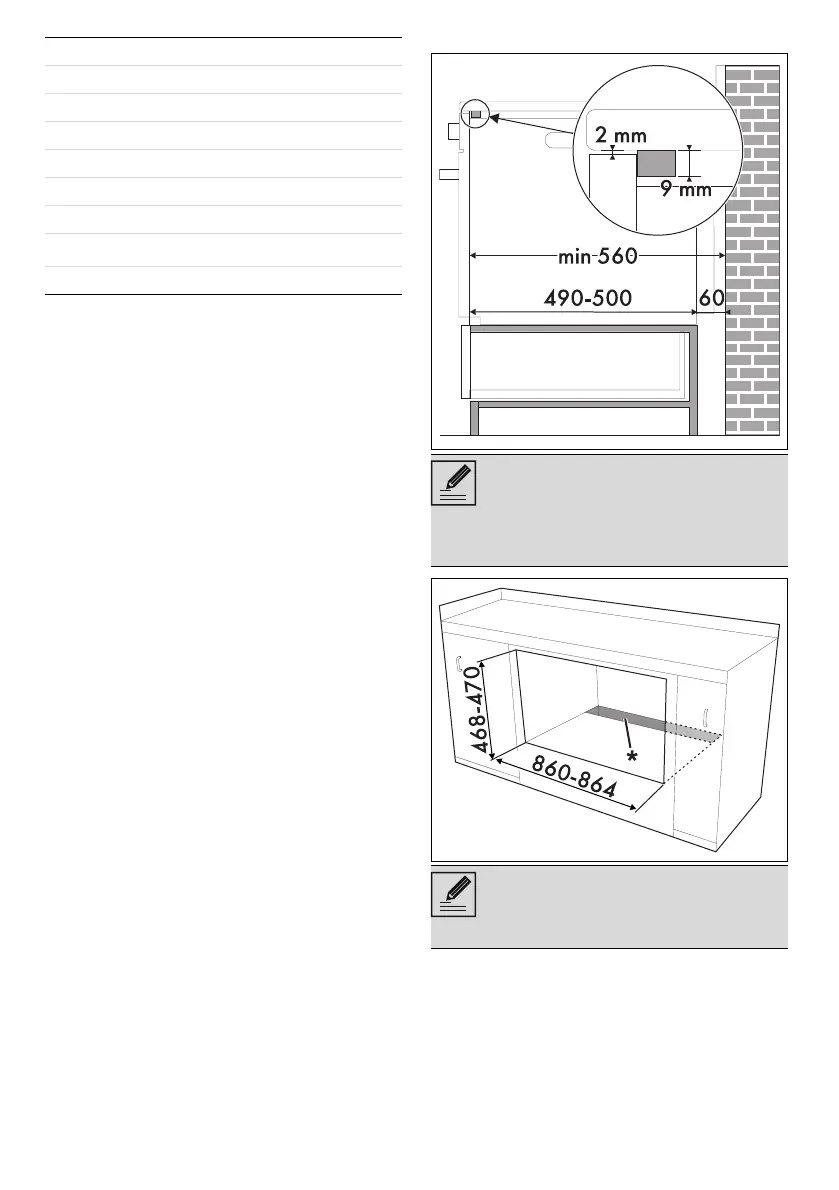

Mounting under worktops (mm)
A min. 900 mm
B 860 - 864 cm
C 477 - 479 cm
D 9 - 11 cm
Emin. 5 mm
F 121 - 1105 cm
G min. 560 mm
co
Cutout for power cord (min. 6 cm
2
)
jb Electrical connection box
If the appliance is to be built-in under a
worktop, a wooden bar has to be
installed order to use the seal that is
glued to the back of the front panel to
prevent water or other liquids leaking in.
*Make sure that the piece of furniture
top/rear part has an opening approx.
60 mm deep.
