INSTALLATION - 79914779617/C
e

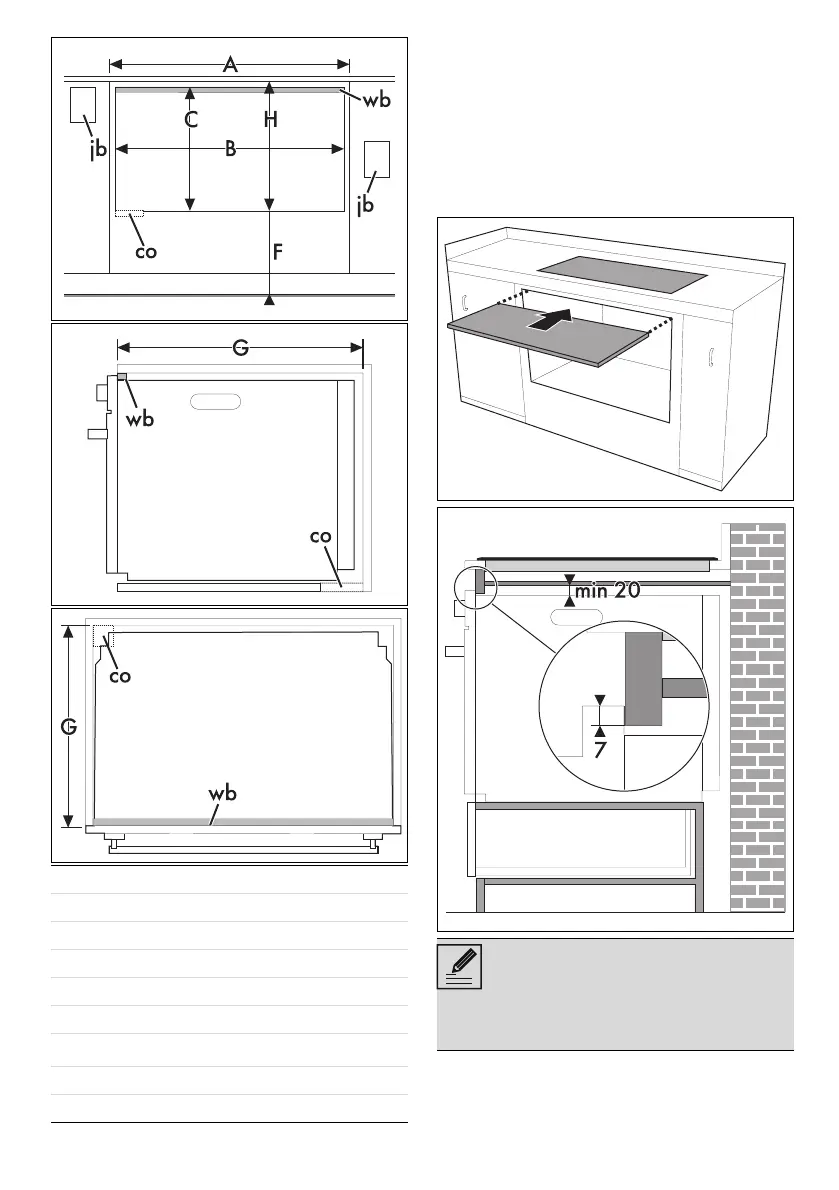

Mounting under worktops (mm) (pyrolytic
models only)
Whenever a hob is installed above the oven, a
wooden separator has to be installed at a
minimum distance of 20 mm from the top of the
oven to prevent overheating when the two
appliances are used at the same time. It must
only be possible to remove the separator by
using suitable tools.
A min. 900 mm
B 860 - 864 cm
C 477 - 479 cm
F 121 - 1105 cm
G min. 560 mm
H min. 477 mm
co
Cutout for power cord (min. 6 cm
2
)
jb Electrical connection box
wb Wooden bar (recommended)
When using a wooden separator, a
wooden bar has to be installed under
the worktop in order to use the seal that
is glued to the back of the front panel to
prevent water or other liquids leaking in.
