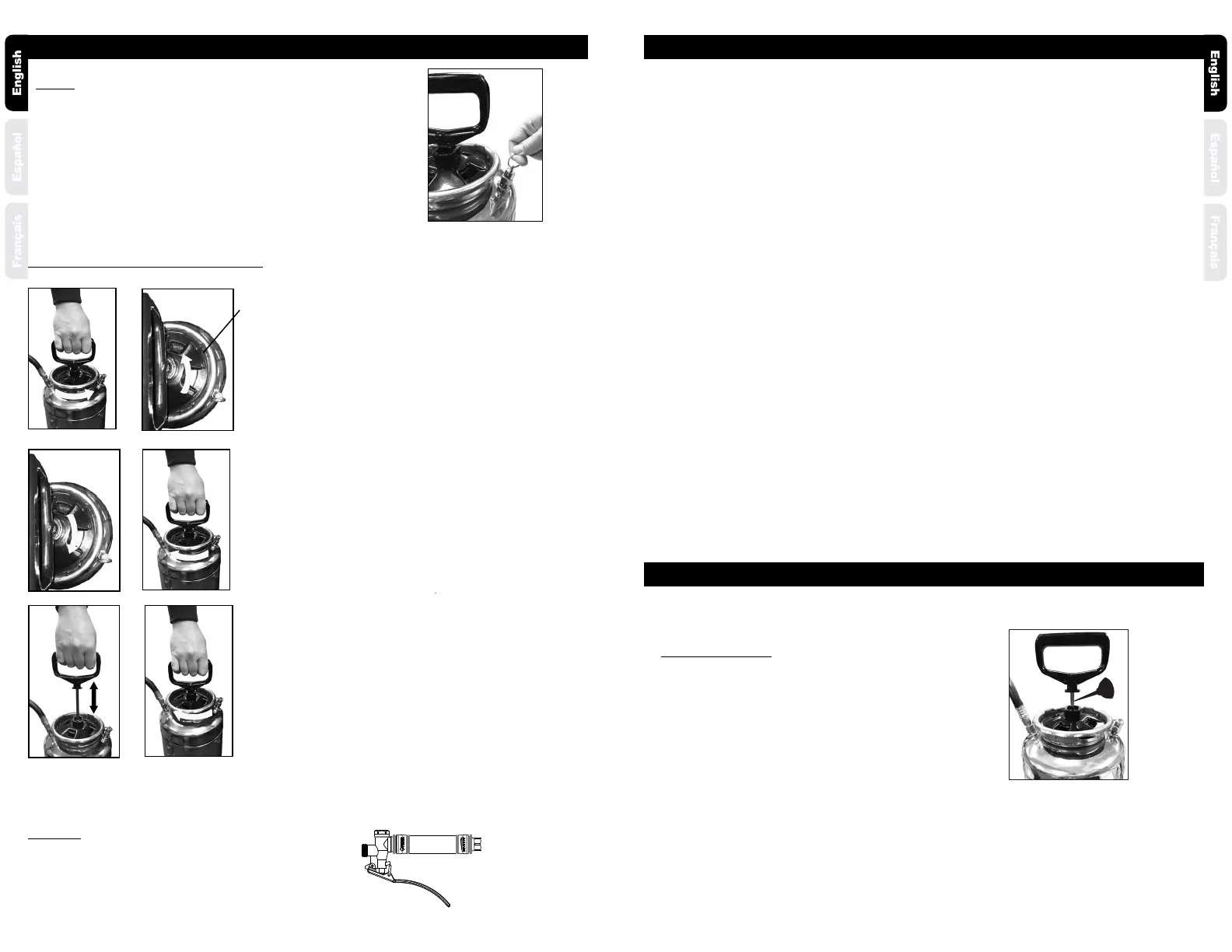

OPERATING INSTRUCTIONS
Filling
IMPORTANT: Always make sure the pressure is
released from the tank before lling or servicing.
1. Pull up on the knob of the pressure release
valve until all the pressure is released from the
tank. (See Figure D.)
Shut-O
1. Direct nozzle away from you and squeeze shut-o
lever to begin spraying.
2. This model does have a locking trigger.
Figure D
Pump Clamp Tab
Pump Unlocking And Pressurizing
TO PRESSURIZE: Push down on the handle to depress
coil spring and turn handle 1/4 turn counterclockwise to
unlock handle. Pressurize the sprayer by pumping the
handle in a smooth up and down motion. Push down on
the handle to depress coil spring and turn handle 1/4 turn
clockwise, then allow handle to raise into lock position.
TO UNLOCK PUMP: Turn handle counterclockwise
until 4-prong clamp is loose, then rotate clamp
counterclockwise aligning the tabs with the slots
in the neck of the tank and remove the pump.
TO LOCK PUMP: Align clamp tabs with the slots in the
neck of the tank and lower the pump assembly, rotate
the 4-tab clamp clockwise to the stop position and
rotate the handle clockwise to tighten, seal and lock the
tank cover.
OPERATING INSTRUCTIONS CONTINUED
Steps To Cleaning Your Sprayer
*** To prevent clogging issues, after each use clean your sprayer.***
1. Release pressure in your sprayer via pressure relief valve. Do not undo handle without releasing pressure.
2. Empty remaining chemical back into original lling container.
3. Fill sprayer with water, place pump back into tank, and tighten.
4. Aggressively shake the water in the tank to try and get residue o of the inside walls of the sprayer. Repeat
step if necessary, each time relling with fresh water.
5. Pressurize the sprayer and spray water for 30-45 seconds into a disposable reservoir, then release pressure
and remove the pump from the tank.
6. Tip and empty tank, then set tank upright. Hold wand and shut-o above the tank and depress the
shut-o. The liquid will drain into the tank, empty again.
7. Repeat the steps above as necessary.
8. Allow tank to air dry by leaving the pump outside of tank over night. The next day, replace the pump to
keep debris out of the tank.
Pump Lubrication
Pump should be periodically oiled by applying 10 to
12 drops of light oil down the pump rod through the
opening in the pump cap as shown.
MAINTENANCE
Sprayer Storage
1. Sprayer tank should be hung upside down, with the pump removed.
2. Do not store or leave any solution in the tank after use.
3. Store in a warm, dry location out of direct sunlight.
4. Keep the sprayer and all chemicals out of reach of children.
