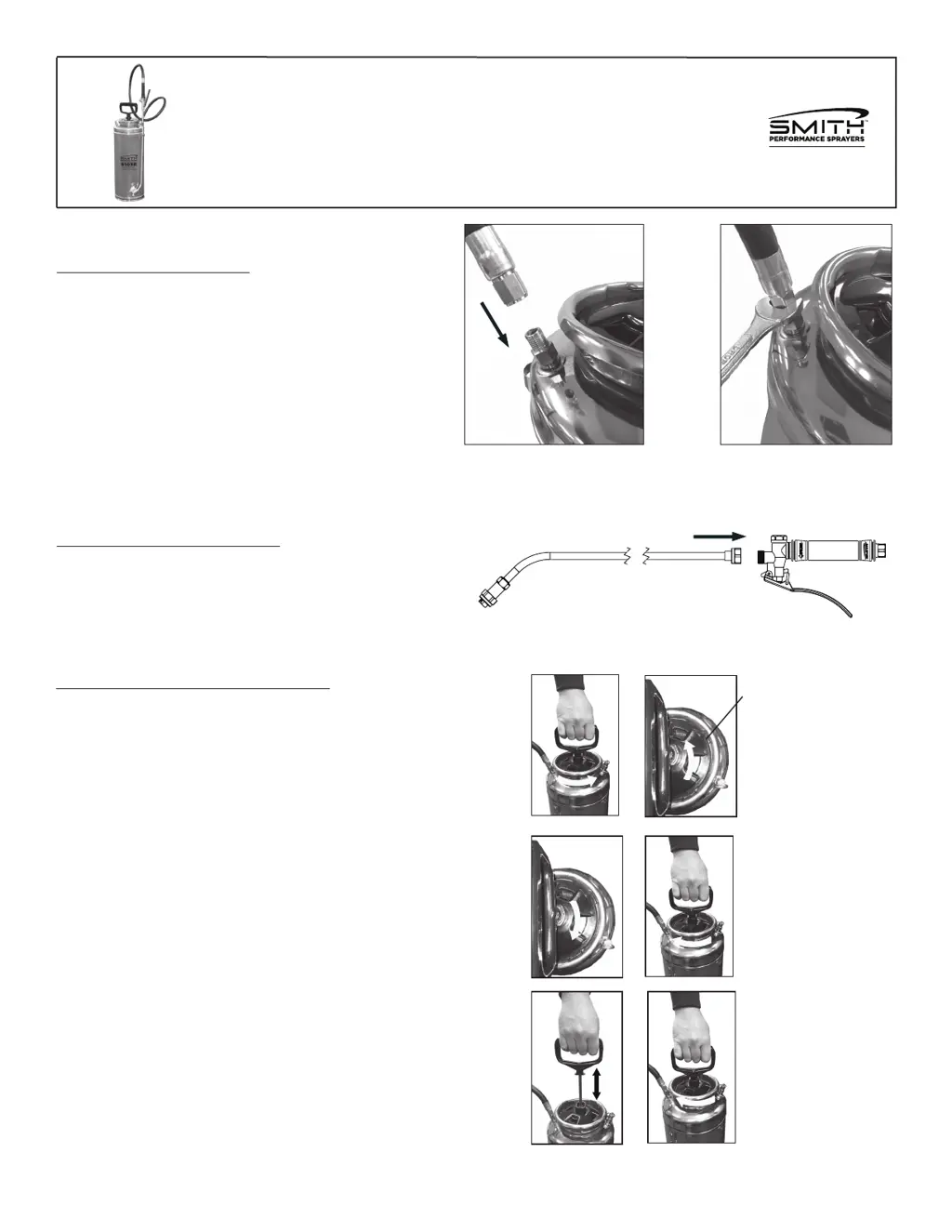

2. Assemble Wand to Shut-o
Screw on Wand Assembly to Shut-o using a 13/16”
wrench. (See Figure C)
Figure C
SHUT-OFF
WAND ASSEMBLY
1. Assemble Hose To Tank
IMPORTANT: Do not attempt to heat or alter hose
or hose nut.
1. Align hose and scew on to tank. (See Figure A).
2. Tighten with a 5/8” wrench. (See Figure B).
Figure BFigure A
SETTING UP YOUR INDUSTRIAL CONCRETE S103E SPRAYER
190448
QUICK START GUIDE
3. Pump Unlocking and Pressurizing
TO UNLOCK PUMP: Turn handle counterclockwise until 4-prong
clamp is loose, then rotate clamp counterclockwise aligning
the tabs with the slots in the neck of the tank and remove the
pump.
TO LOCK PUMP: Align clamp tabs with the slots in the neck of
the tank and lower the pump assembly, rotate the 4-tab clamp
clockwise to the stop position and rotate the handle clockwise
to tighten, seal and lock the tank cover.
TO PRESSURIZE: Push down on the handle to depress coil spring
and turn handle 1/4 turn counterclockwise to unlock handle.
Pressurize the sprayer by pumping the handle in a smooth up
and down motion. Push down on the handle to depress coil
spring and turn handle 1/4 turn clockwise, then allow handle to
raise into lock position.
Pump Clamp Tab

Other manuals for Smith Performance Sprayers S103E

Preview: Use And Care Manual
Use And Care Manual28 pages

Questions and Answers

  • S
    Sylvia DouglasJul 28, 2025
    Why does my Smith Performance Sprayers Paint Sprayer leak at the pump?
    • E
      Ebony AlvarezJul 28, 2025
      If your Smith Performance Sprayers Paint Sprayer leaks at the pump or fails to build pressure, it could be due to several reasons. First, check the tank cover o-ring (#3H) for any dirt or debris and clean it off. If the o-ring is chipped, torn, swollen, or defective, you should replace it as described in the Pump Disassembly & Reassembly section. Also, inspect the check valve (#3S) at the bottom of the pump assembly; replace it if it's missing or damaged, following the instructions in the Pump Disassembly & Reassembly section. Lastly, examine the o-ring (#3L) on the piston for wear or damage and replace it as described in the Pump Disassembly & Reassembly section.
  • D
    Daniel KelleyAug 4, 2025
    What to do if material overflows through pump barrel of Smith Performance Sprayers S103E?
    • K
      Katie JimenezAug 4, 2025
      If your Smith Performance Sprayers Paint Sprayer material overflows through the pump barrel, or the pump handle rises when unlocked, it might be due to dirt or debris under the check valve (#3S) on the pump. Clean the check valve (#3S) and the valve sealing surface on the pump. Alternatively, the pump check valve (#3S) could be chipped, torn, or swollen. In this case, replace the check valve (#3S) as described in the Pump Disassembly & Reassembly section.
  • R
    Randy MitchellAug 9, 2025
    How to fix a hose leak at the tank of Smith Performance Sprayers Paint Sprayer?
    • K
      krystalsmithAug 9, 2025
      If the hose leaks at the tank of your Smith Performance Sprayers Paint Sprayer, try tightening the hose nut at the tank. If the hose is cracked, swollen, or faulty, replace it. If the hose leaks at the shut-off, tighten the hose at the shut-off.
  • S
    sandrapaulAug 16, 2025
    Why is my Smith Performance Sprayers Paint Sprayer difficult to pump?
    • A
      Ashley AndersonAug 16, 2025
      If your Smith Performance Sprayers Paint Sprayer is difficult to pump, it could be due to a damaged piston o-ring (#3L). Replace the piston o-ring as described in the Pump Disassembly & Reassembly section. Another possible reason is that the piston o-ring (#3L) is dry. Lubricate the piston o-ring as described in the Pump Disassembly & Reassembly section.
  • J
    Jamie RamirezAug 21, 2025
    What to do if the nozzle drips on my Smith Performance Sprayers Paint Sprayer?
    • T
      Tracy NobleAug 21, 2025
      If the nozzle drips when the shut-off lever is released on your Smith Performance Sprayers Paint Sprayer, it could be due to dirt or debris in the shut-off valve. Clean the shut-off as described in the Shut-off Maintenance section. Alternatively, there may be damaged o-rings or seals in the shut-off (Kit #10). Service the shut-off seals as described in Maintenance service (Kit #10).

Summary

Assemble Hose To Tank

Align Hose and Screw to Tank

Align hose and screw onto the tank, referring to Figure A.

Tighten Hose Connection

Tighten the hose connection with a 5/8-inch wrench, as shown in Figure B.

Assemble Wand to Shut-off

Attach Wand to Shut-off

Screw Wand Assembly to Shut-off using a 13/16-inch wrench, as per Figure C.

Pump Unlocking and Pressurizing

Unlock Pump Mechanism

Turn handle counterclockwise to loosen the 4-prong clamp, then align tabs and remove the pump.

Lock Pump Mechanism

Align clamp tabs with tank slots, lower pump, rotate clamp clockwise, and turn handle clockwise to lock.

Pressurize the Sprayer

Push down handle to depress spring, turn counterclockwise to unlock, pump handle up and down.
