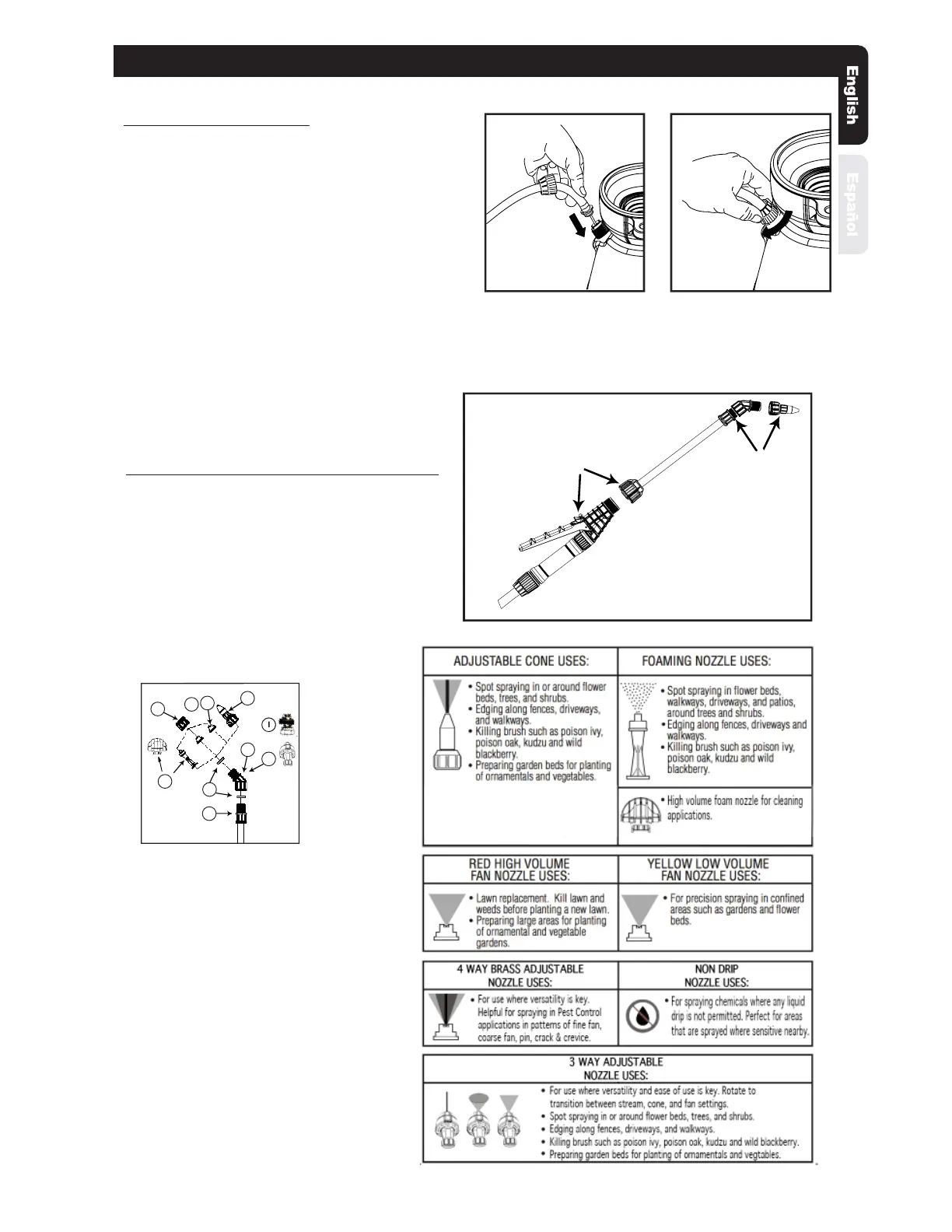

Smith Performance Sprayers PERFORMANCE S100 - ASSEMBLY INSTRUCTIONS; Assemble Hose To Tank; Assemble Extension, Shut-Off & Nozzle

Page 3
Assemble Extension, Shut-O & Nozzle
1. Install the extension onto the shut-o
assembly and tighten the nut securely.
(See Figure C)
2. Install selected nozzle onto the end of the
extension and tighten securely. (See Figure D)
ASSEMBLY INSTRUCTIONS
Assemble Hose To Tank
IMPORTANT: Do not attempt to heat or alter hose,
hose nut, or barb prior to assembly.
1. Align hose barb tabs, push hose barb into tank
until it stops (See Figure A).
2. Slide hose nut into place and turn clockwise to
tighten. (See Figure B).
NOTE: Do not use tools to tighten hose nut.
Figure A
Figure B
Figure C
Figure D
SELECT USING NOZZLE CHART BELOW
(Nozzle selections vary by model)
A. Cap Nut
B. Foaming Nozzle/High-Volume
Foaming Nozzle
C. Red High-Volume Fan Nozzle
D. Yellow Low-Volume Fan Nozzle
E. Adjustable Cone Nozzle
F. Flat Seal
G. Adapter
H. Extension
I. 4 Way Nozzle
J. 3 Way Nozzle
E
A
G
B
C
F
H
D
I
I
J
