Smittybilt Defender Series User Manual

Installation Instructions
Defender Series
Rack Mount
Part #DS5-6,DS5-8,DS6-6
Step 1:

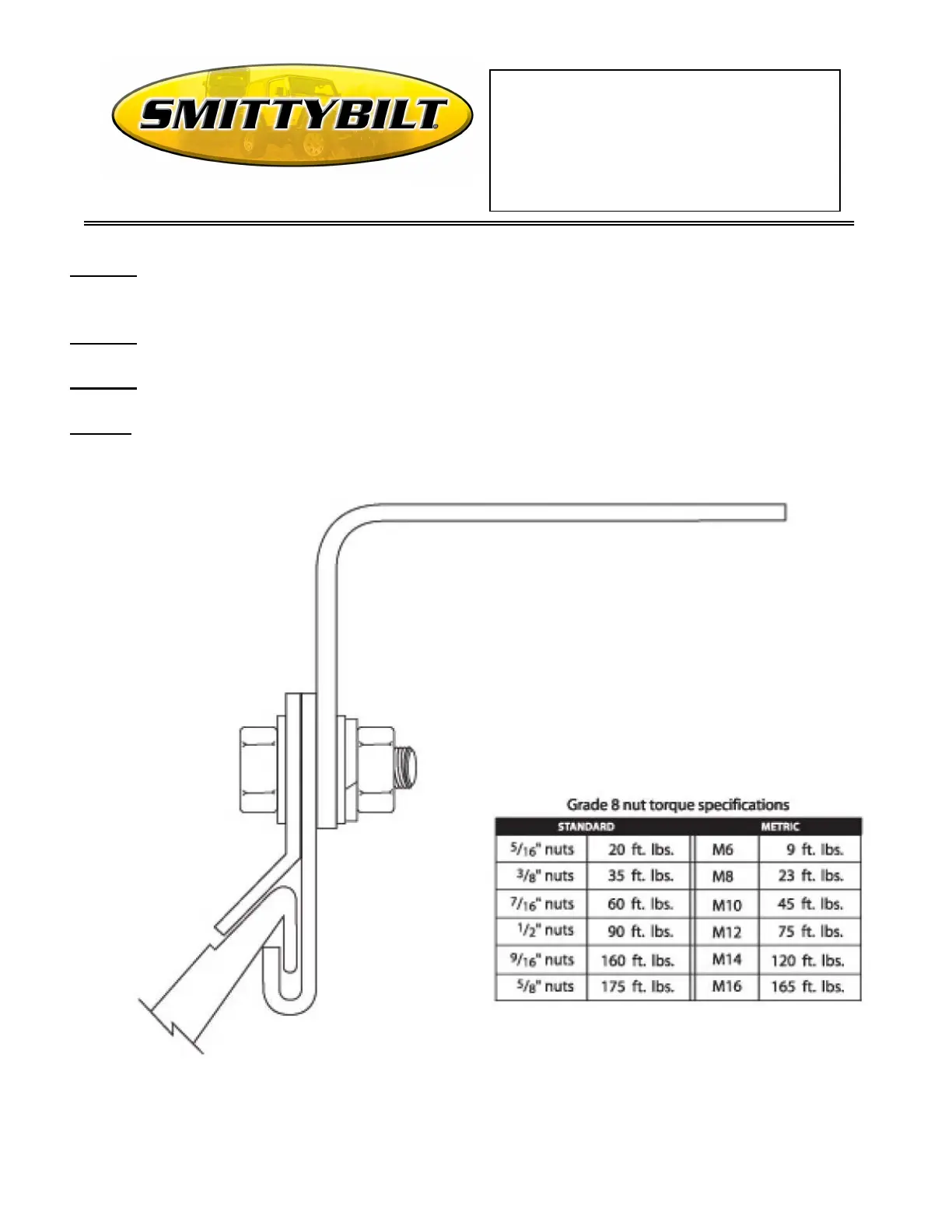

Assemble the bracket assemblies, and place on each side of factory rails per diagram.
Do not tighten at this time.
Step 2: Position roof rack on brackets and attach with 5/16” hardware.
Step 3: Once the rack and brackets are in the desired location, tighten all hardware.
Notes: Defender Roof Racks are rated for loads of no more than 150lbs. evenly distributed.
When carrying a spare tire, the tire should not exceed 33” diameter

Smittybilt Defender Series Specifications

General

Material	Steel
Mounting	Bolt-on
Dimensions	Varies by model
Finish	Black Powder Coat
Weight Capacity	Varies by model
Mounting Type	Roof Rack
Installation	Drilling required for some applications
Compatibility	Vehicle-specific
