Gen 1 Ladder Adjustment
Periodically check torque
of all hardware.

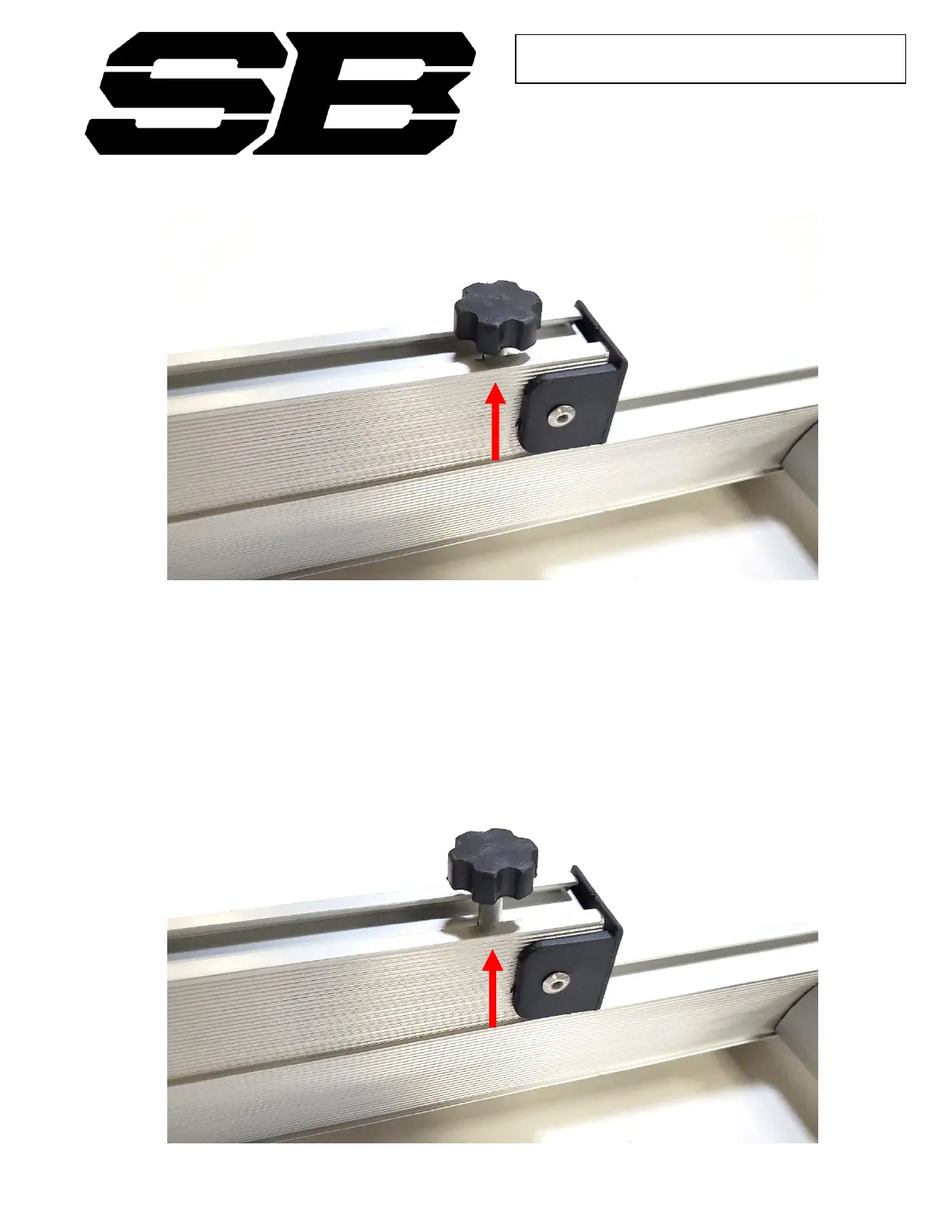

Ladder knobs can be pulled up and twisted ¼ turn to
lock them in the open position. Turn another ¼ turn to
allow them to go back into the spring loaded locking
position.
Spring loaded locking position
Unlocked raised position
